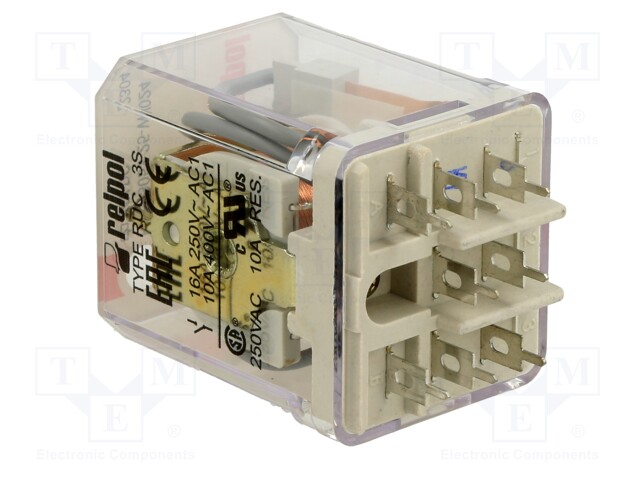

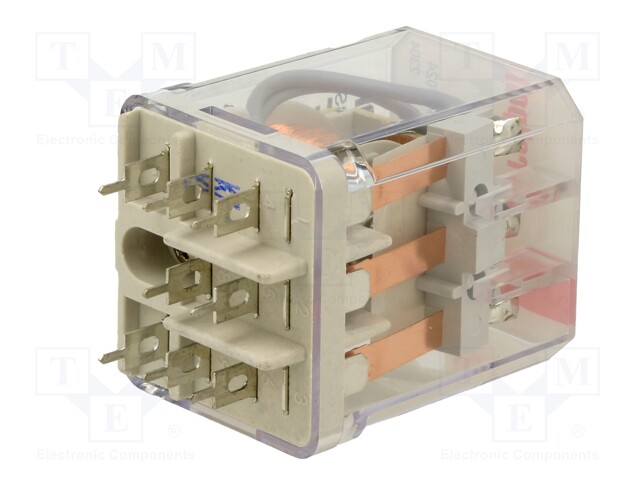

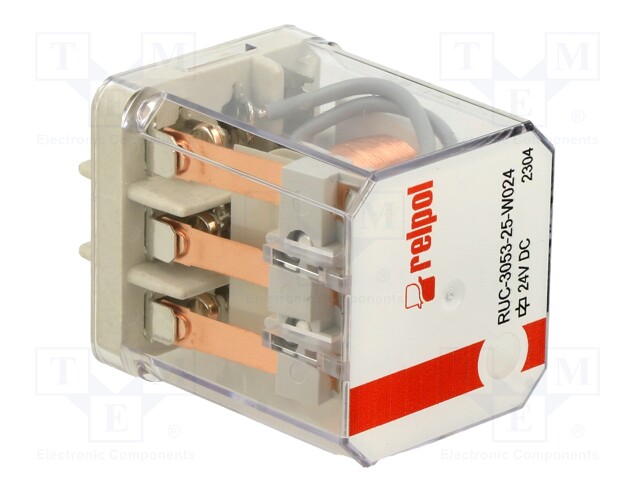

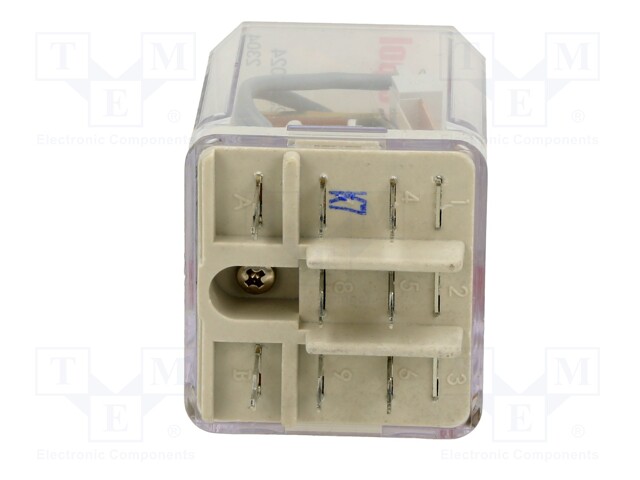

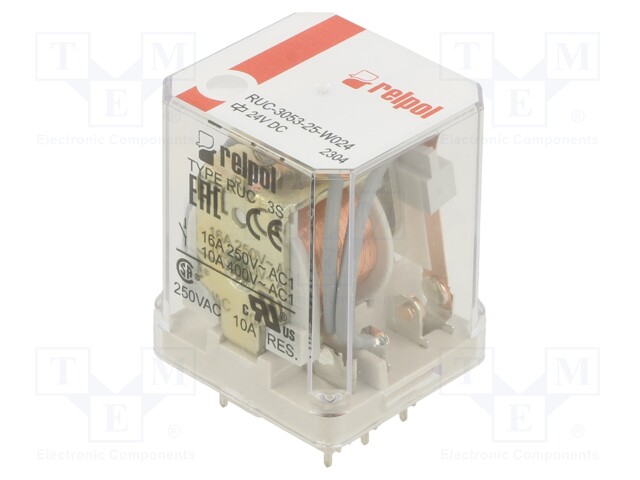

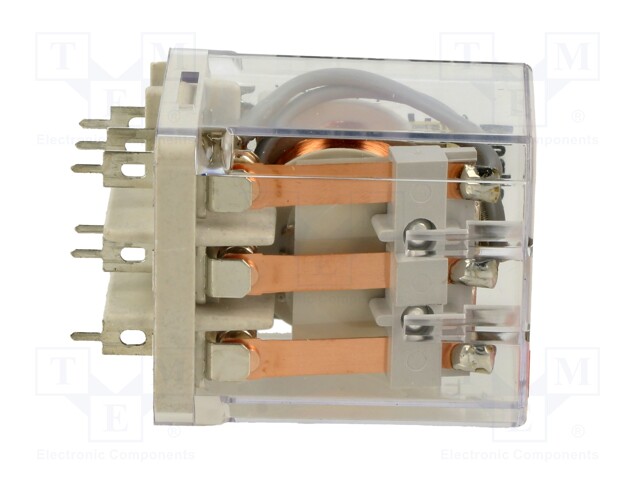

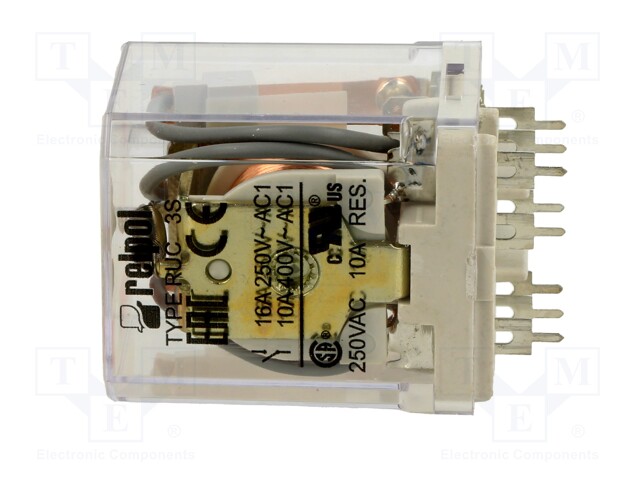

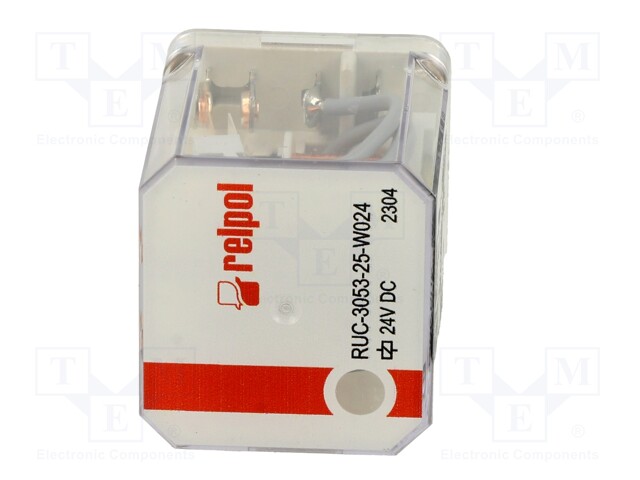

Relay: electromagnetic; 3PST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RUC-3053-25-W024
    Tootja: RELPOL
    Tootja tootekood: RUC-3053-25-W024
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    18,52 € 18,52 € (KM-TA) 18.52 EUR

    18,52 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 3PST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Mounting PCB
    Operating temperature -40...55°C
    Contact material AgSnO<sub>2</sub>
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Max surge current 40A
    Coil resistance 345Ω
    Rated coil voltage 24V DC
    Contacts configuration 3PST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.7W
