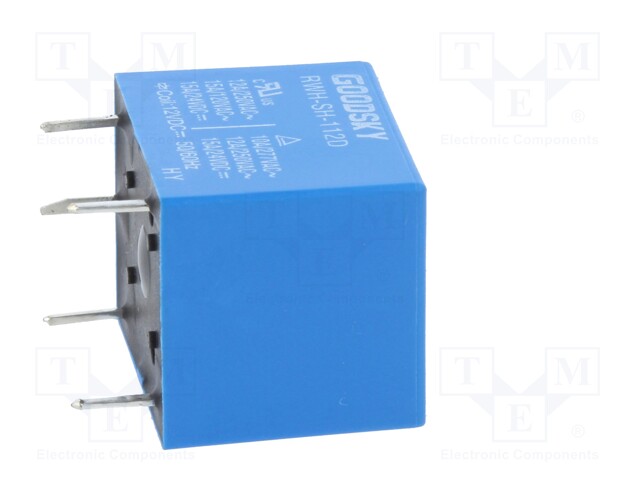

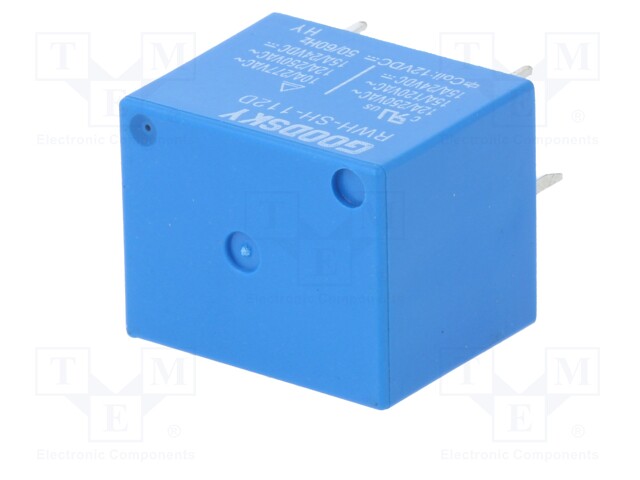

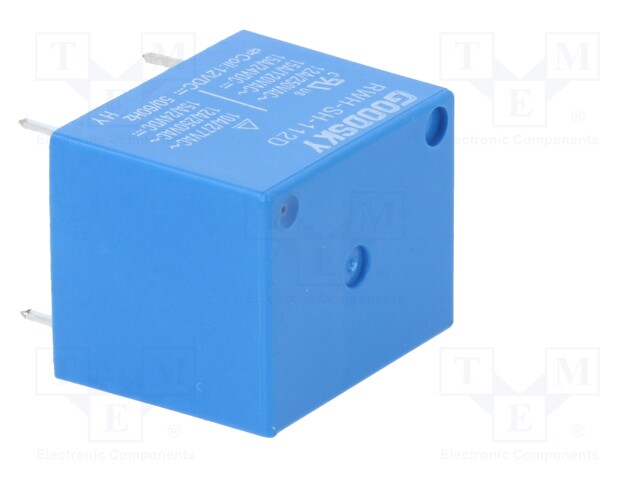

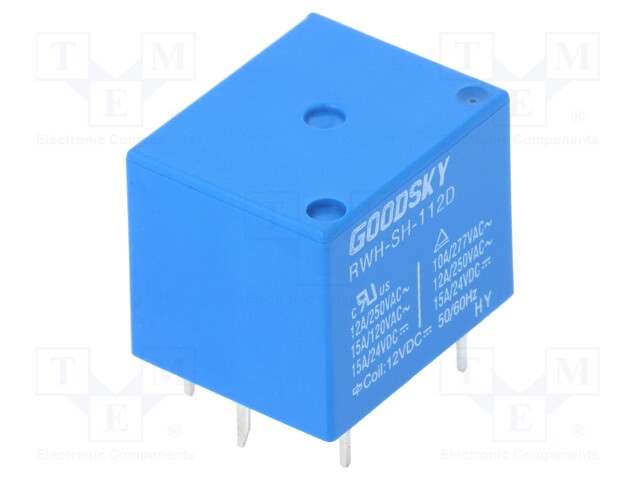

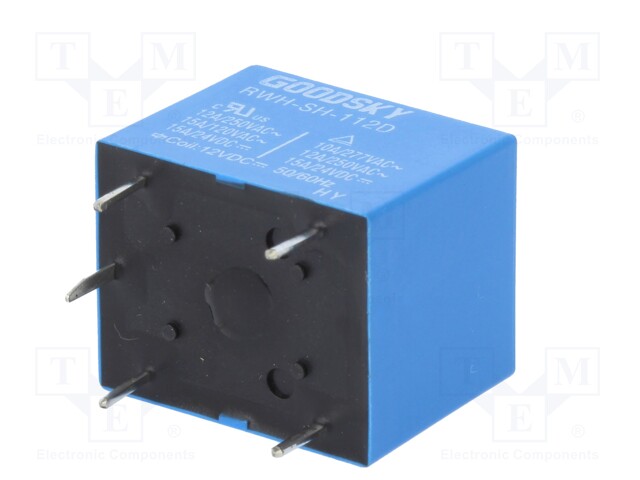

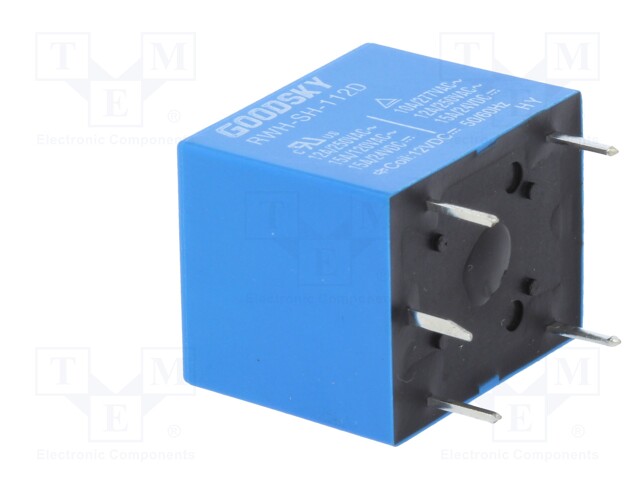

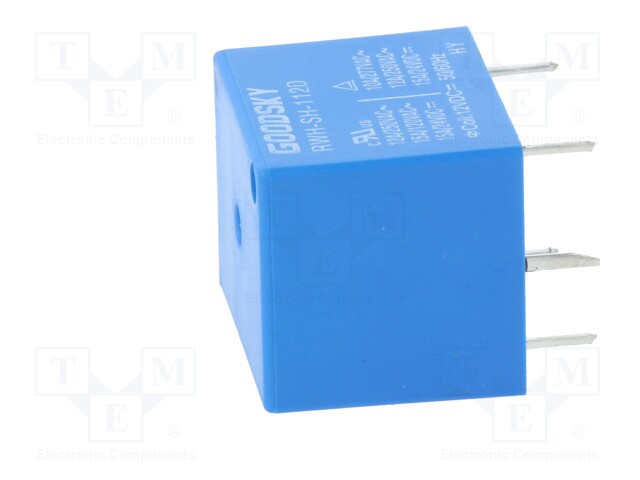

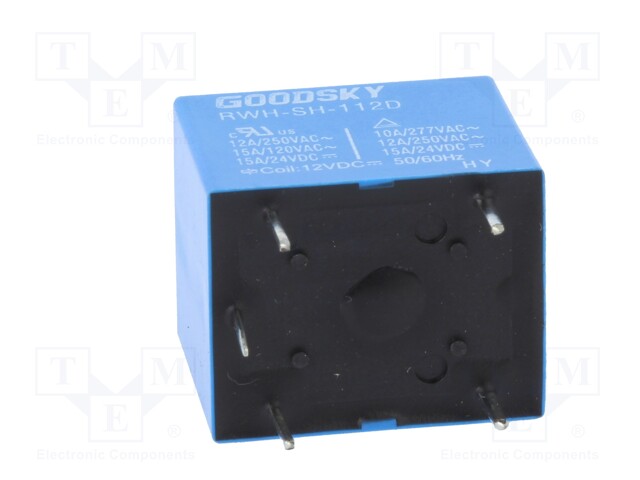

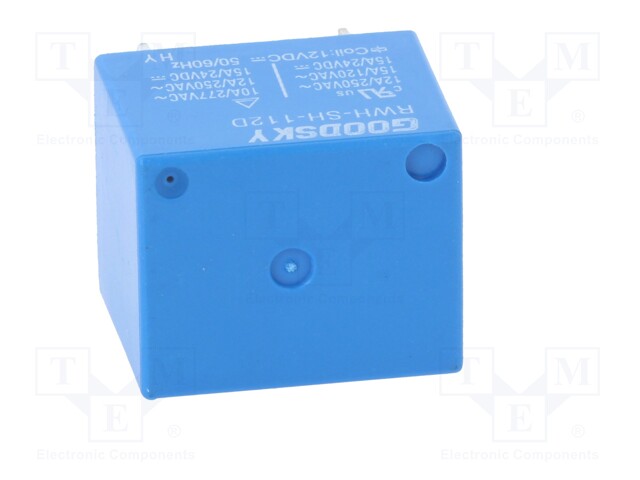

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A/250VAC; 15A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RWH-SH-112D
    Tootja: GOODSKY
    Tootja tootekood: RWH-SH-112D
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1,18 € 1,18 € (KM-TA) 1.18 EUR

    1,18 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A/250VAC; 15A/24VDC

    Mounting PCB
    Operating temperature -30...85°C

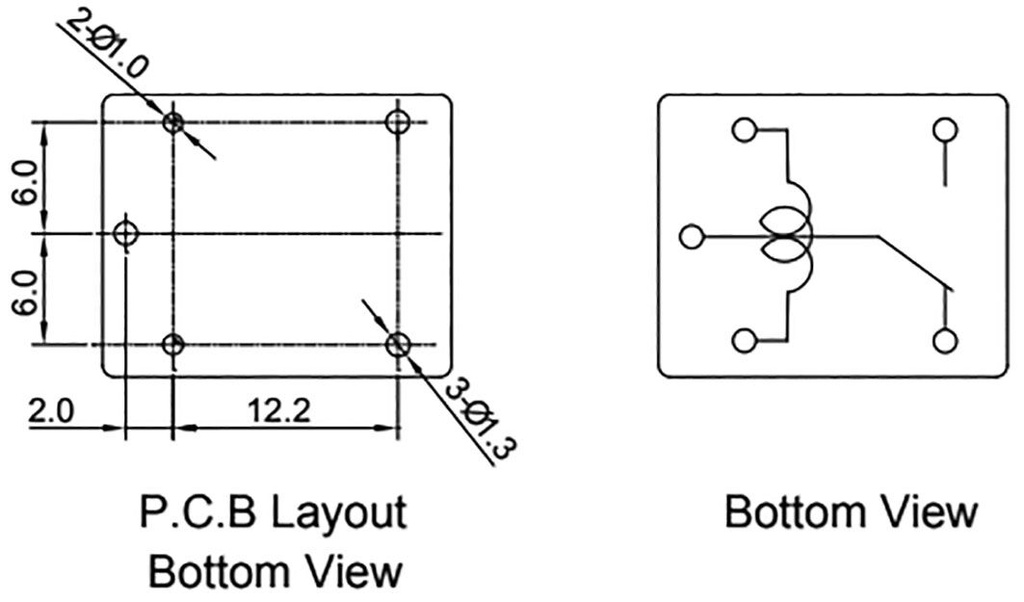

    Number of pins 5
    Contact material AgSnO<sub>2</sub>

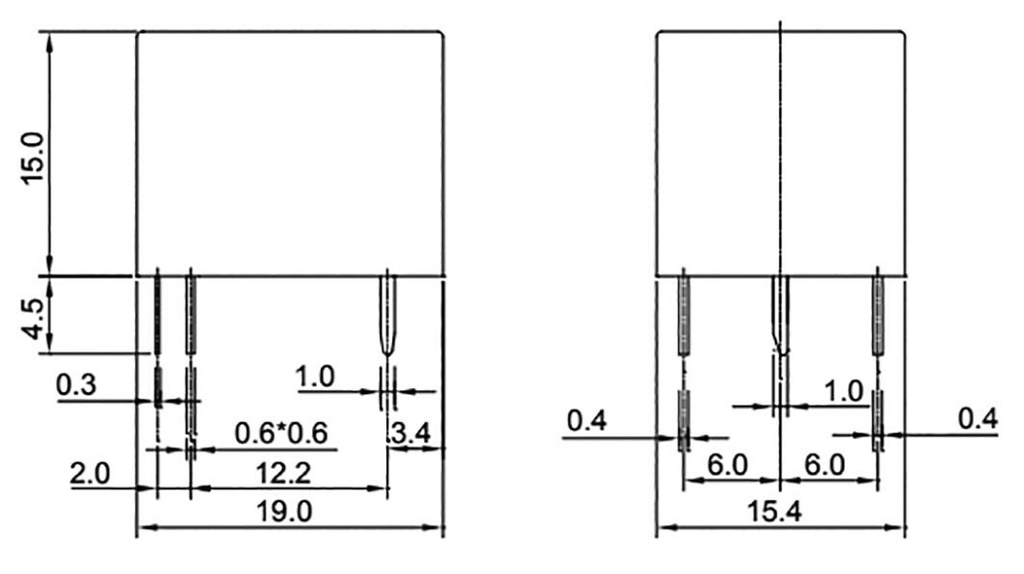

    Body dimensions 19x15.4x15mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 110V DC, ≤ 240V AC
    Electrical life 100000cycles
    Coil resistance 400Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 15A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
    Coil current 30mA
