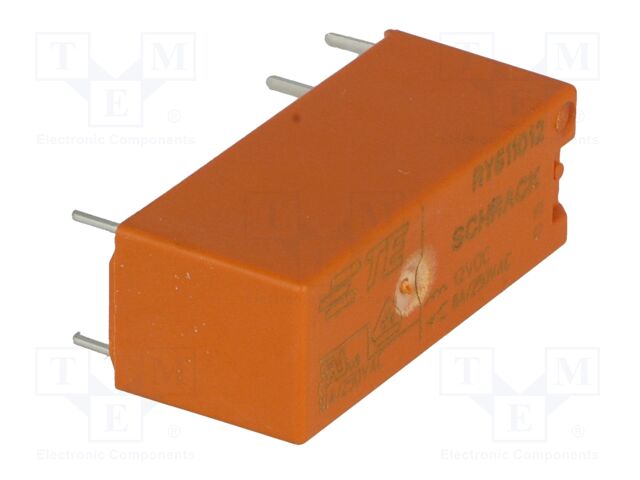

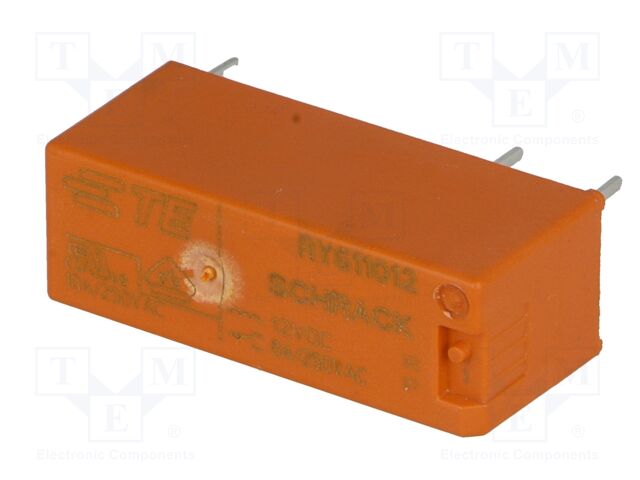

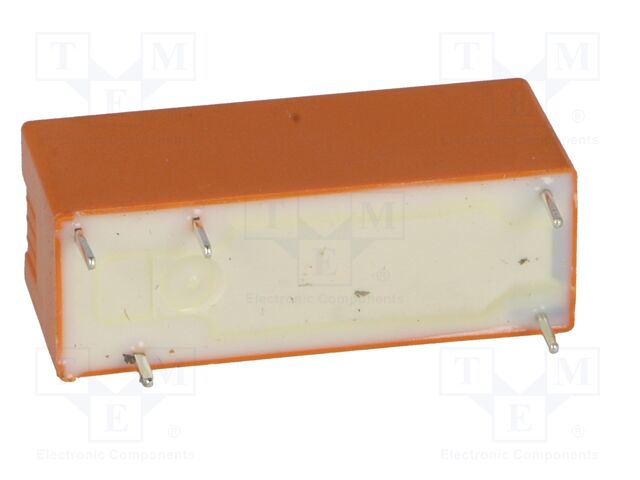

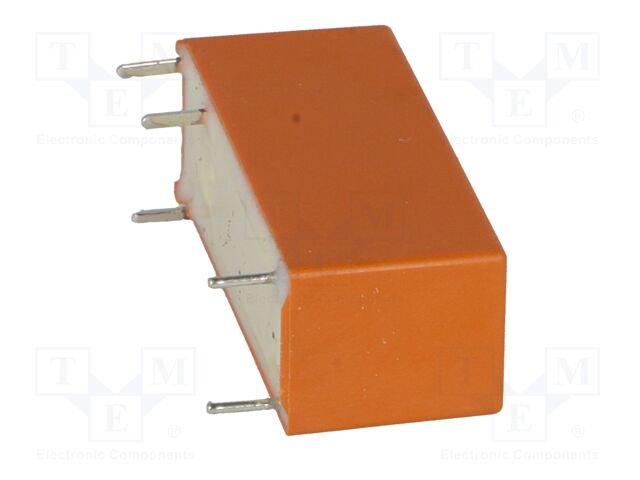

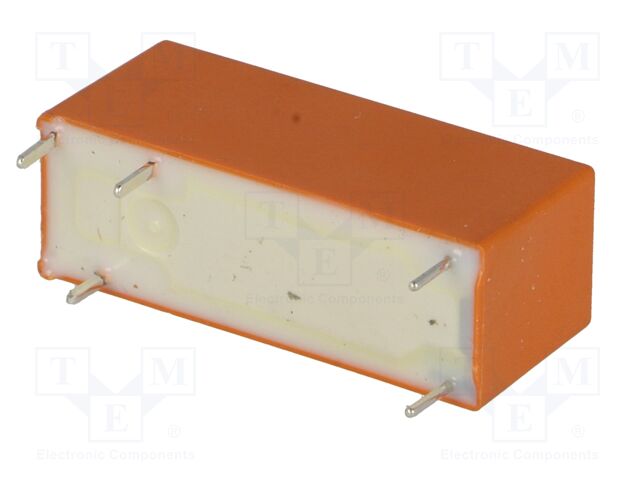

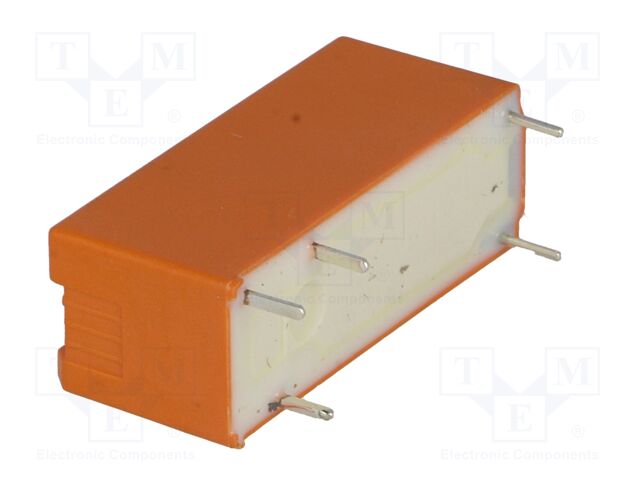

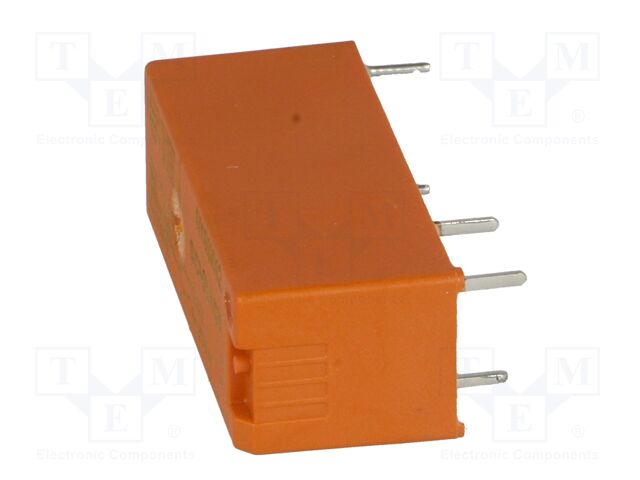

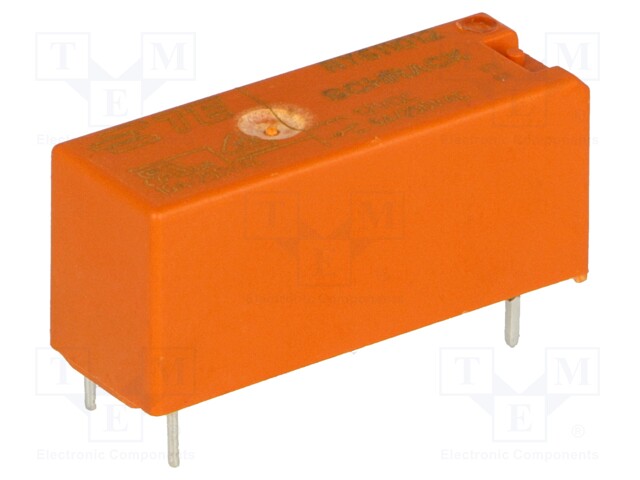

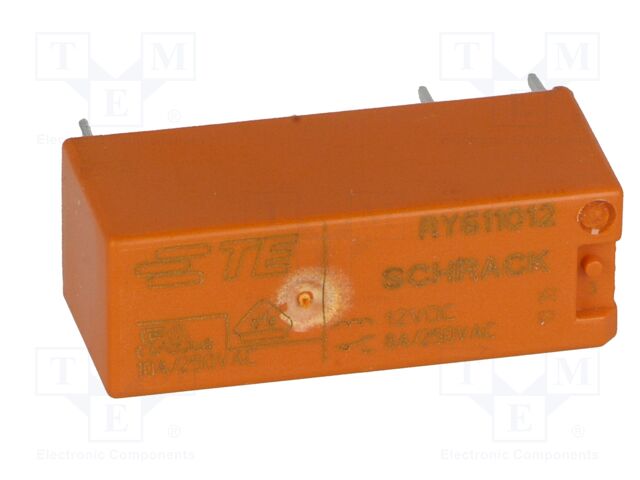

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC

    Kordarv: 1.0
    Minimum quantity: 20.0
    Tootekood: RY611012
    Tootja: TE Connectivity
    Tootja tootekood: 1-1393225-9
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1,76 € 1,76 € (KM-TA) 1.76 EUR

    1,76 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgNi
    Terminal pitch 3.2mm

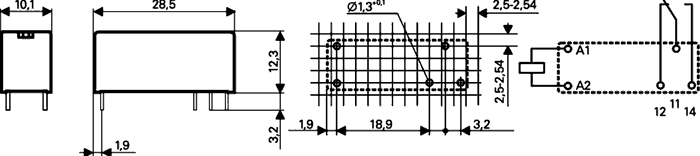

    Body dimensions 28.5x10.1x12.3mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Switching capacity 2kVA
    Coil resistance 620Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 220mW
    Operate time 9ms
    Release time 5ms
    Coil current 19.3mA
