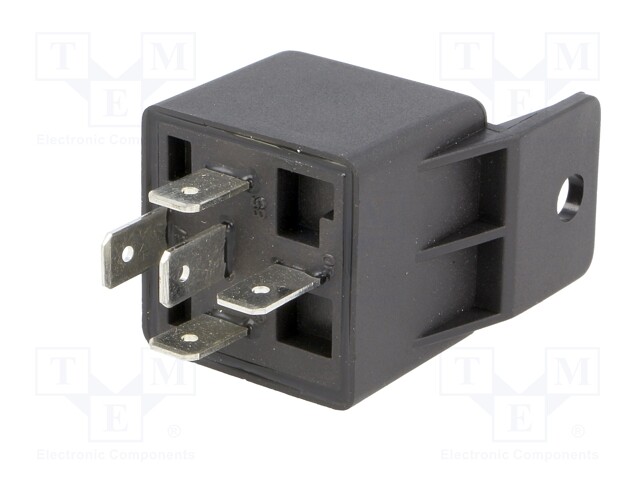

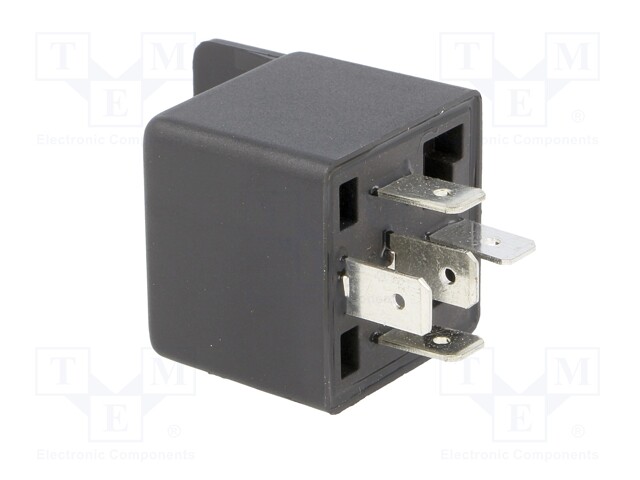

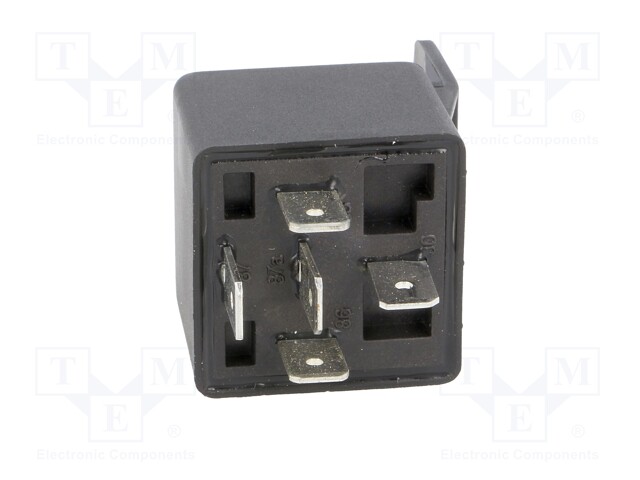

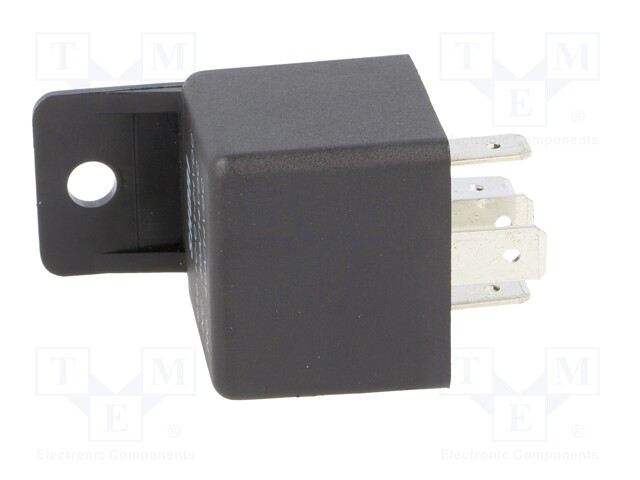

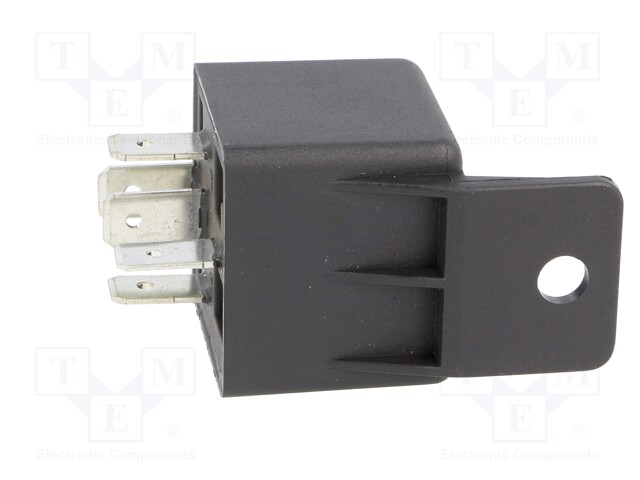

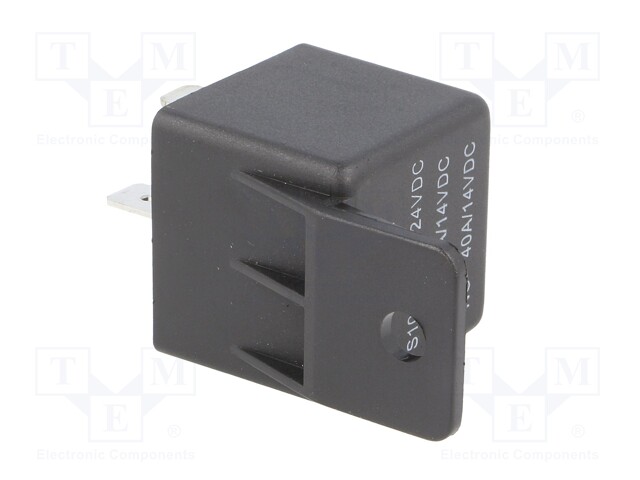

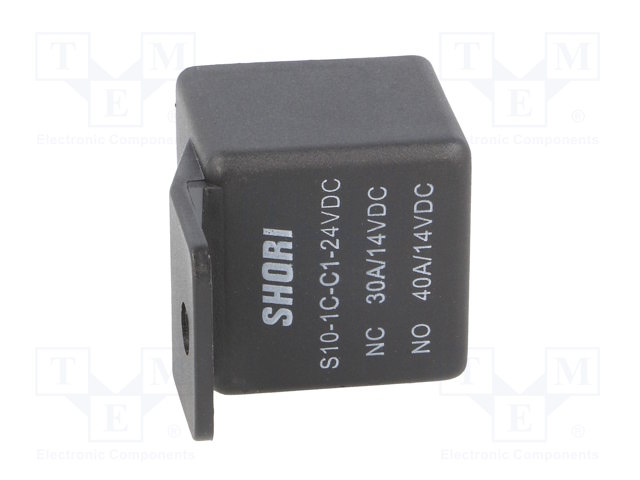

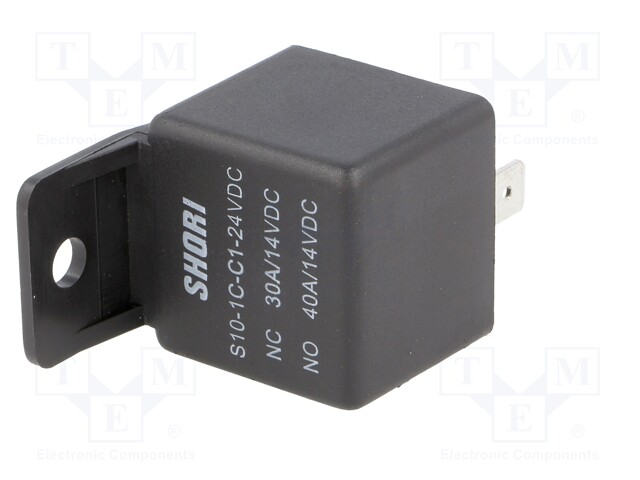

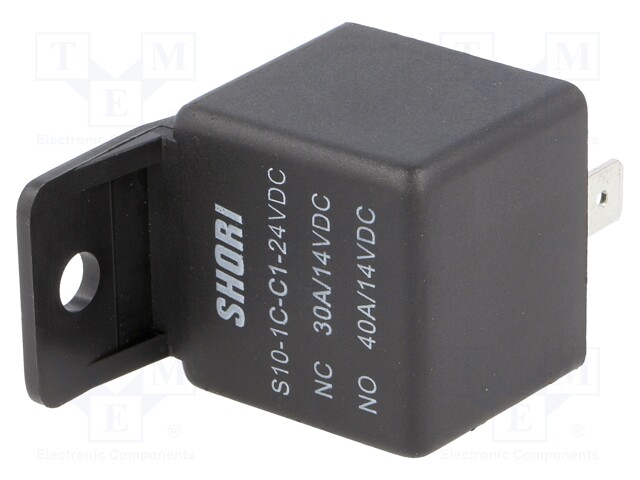

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; 1.8W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S10-1C-C1-24VDC
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S10-1C-C1-24VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    2,67 € 2,67 € (KM-TA) 2.67 EUR

    2,67 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; 1.8W

    Mounting on panel, socket
    Operating temperature -30...80°C
    Leads connectors
    Contact material silver alloy

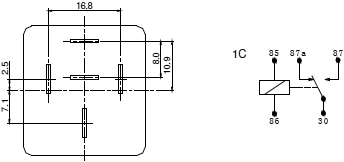

    Body dimensions 28.6x28.6x25.3mm
    Mechanical durability 10000000cycles
    Electrical life 100000cycles
    Coil resistance 320Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 40A / 12V DC
    Contact resistance 100MΩ
    Contact current max. 40A
    Relay variant automotive
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 1.8W
    Operate time 10ms
    Release time 10ms
    Coil current 75mA
