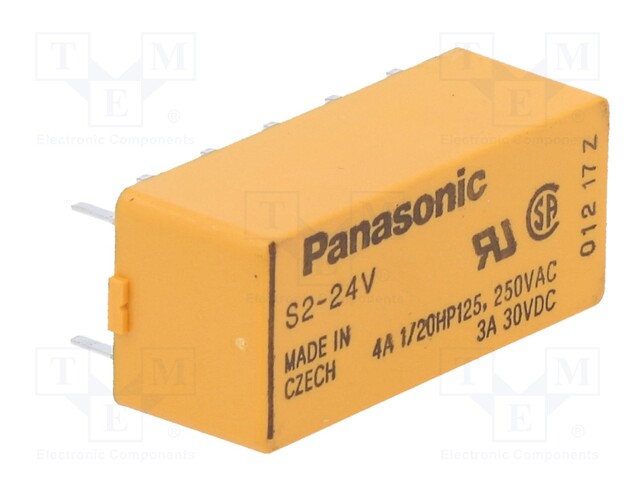

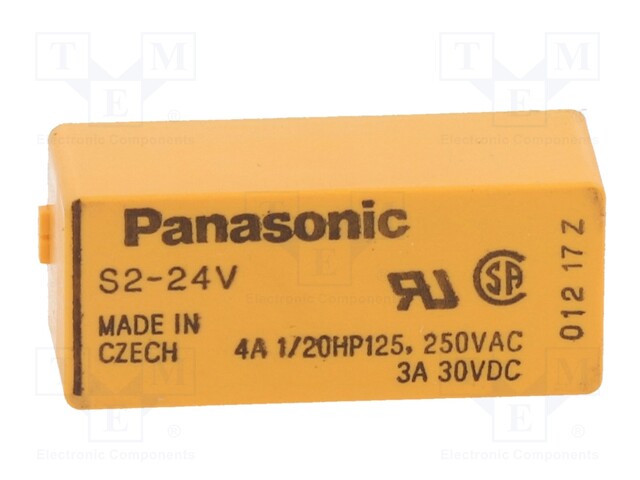

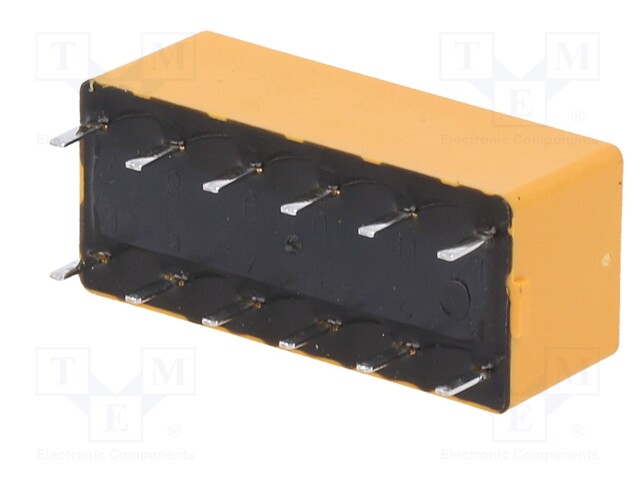

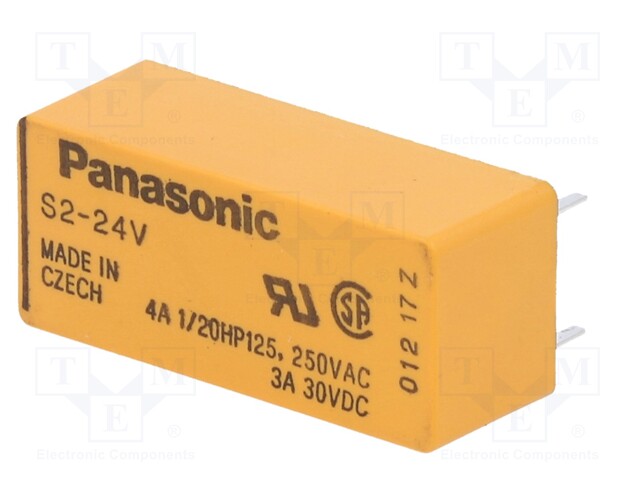

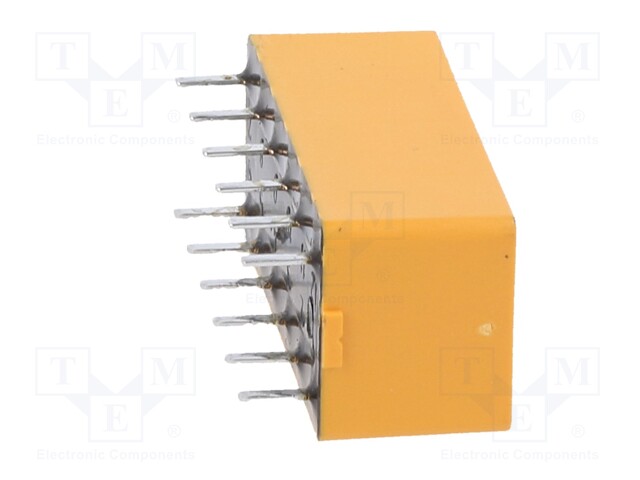

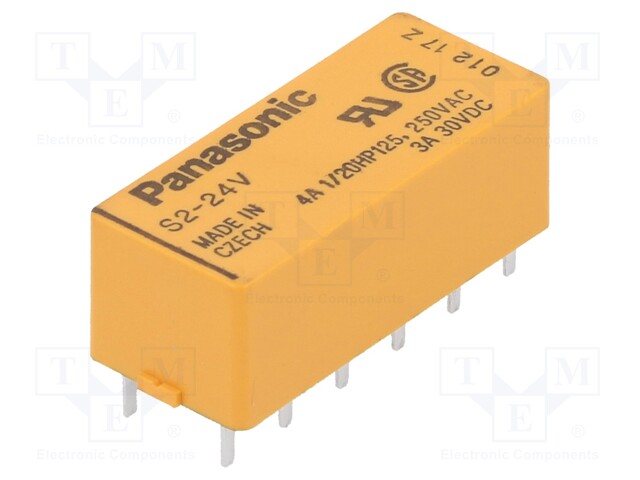

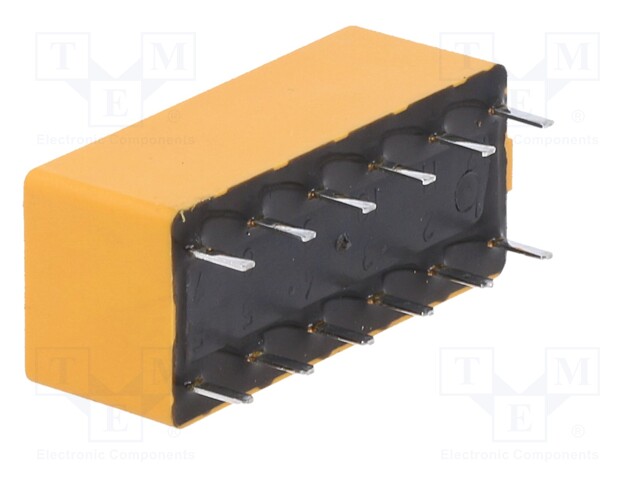

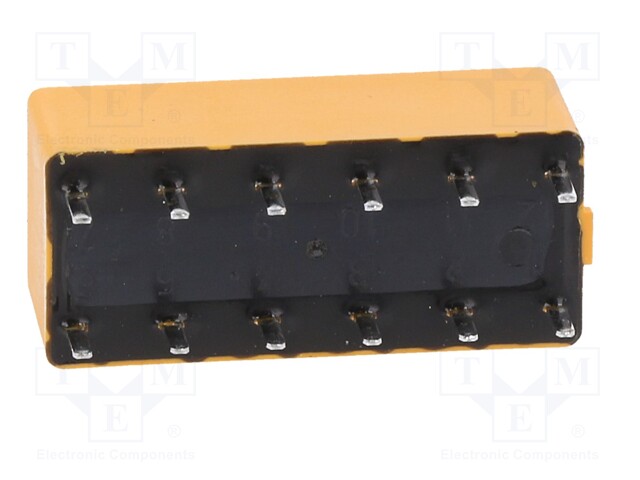

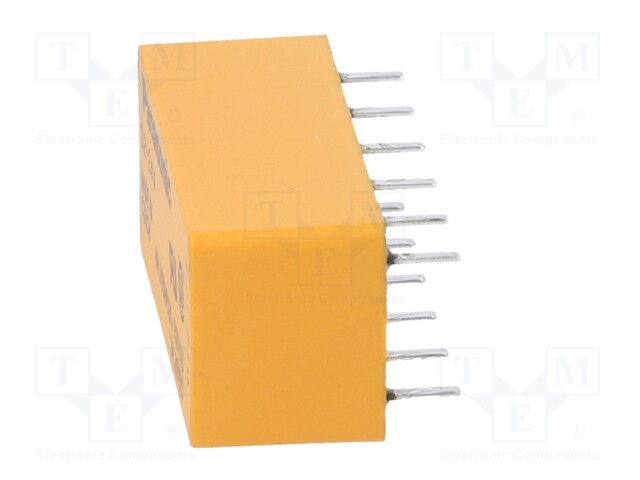

Relay: electromagnetic; (SPST-NO + SPST-NC) x2; Ucoil: 24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S224ULCSAD
    Tootja: PANASONIC
    Tootja tootekood: S224ULCSAD
    • Mounting
    • Mounting
    • Contact plating
    • Series
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; (SPST-NO + SPST-NC) x2; Ucoil: 24VDC

    Mounting PCB, socket
    Contact plating gold-plated
    Series S
    Contact material Ag/Au

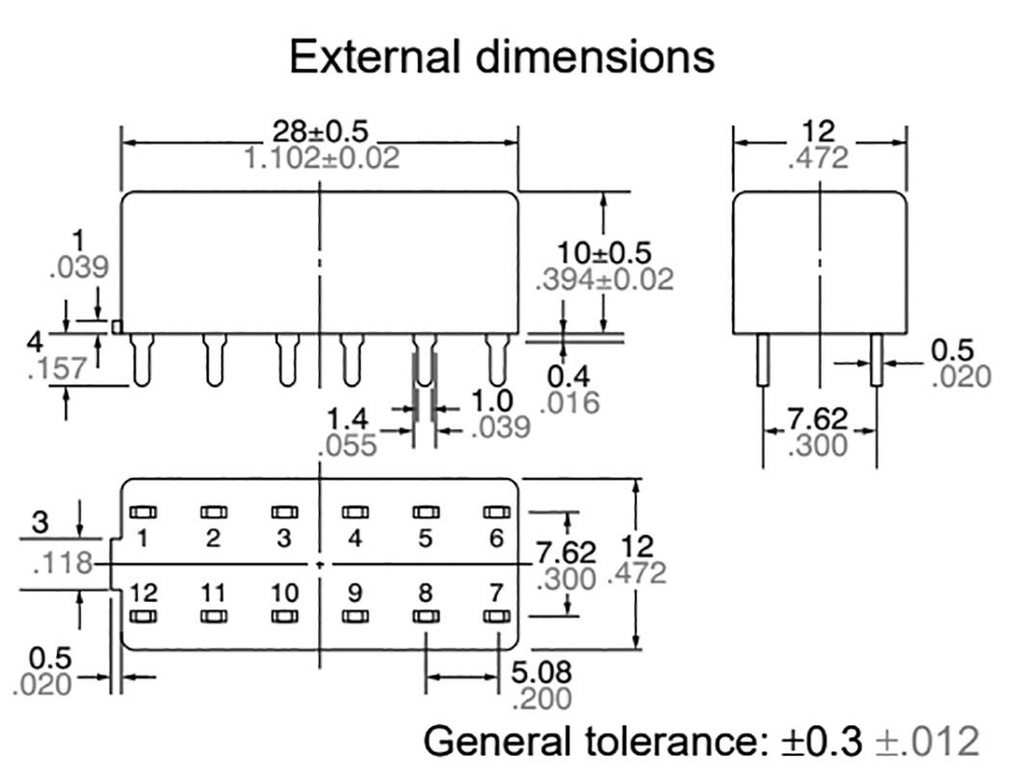

    Body dimensions 28x12x10mm
    Switched voltage ≤ 48V DC, ≤ 250V AC
    Coil resistance 2.85kΩ
    Rated coil voltage 24V DC

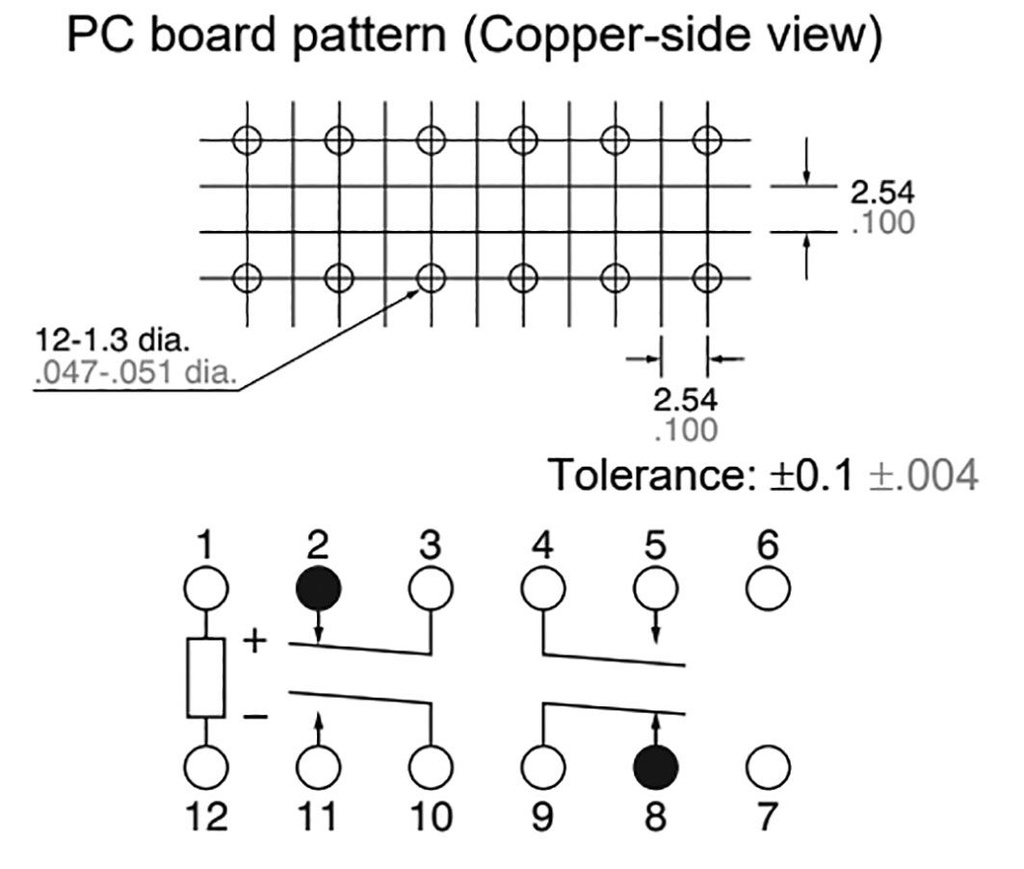

    Contacts configuration (SPST-NO + SPST-NC) x2
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 4A / 250V AC
    Contact current max. 4A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 202mW
    Coil current 8.4mA
