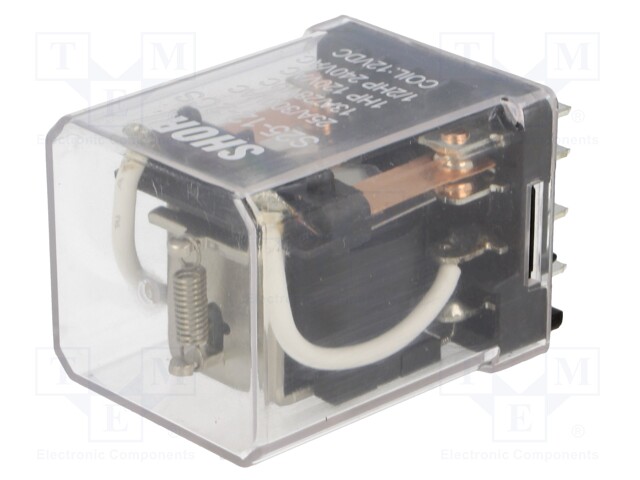

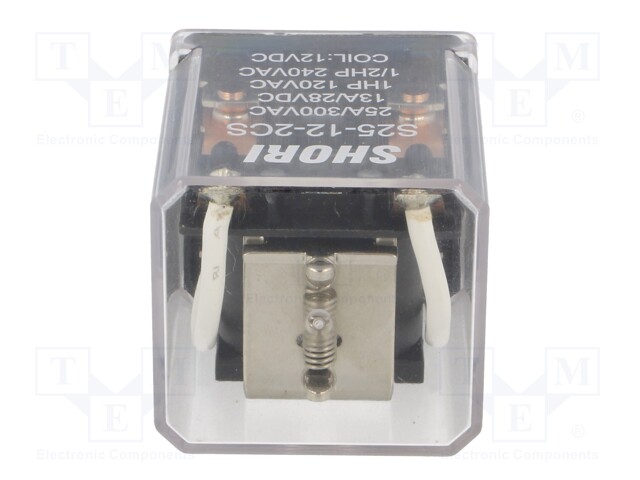

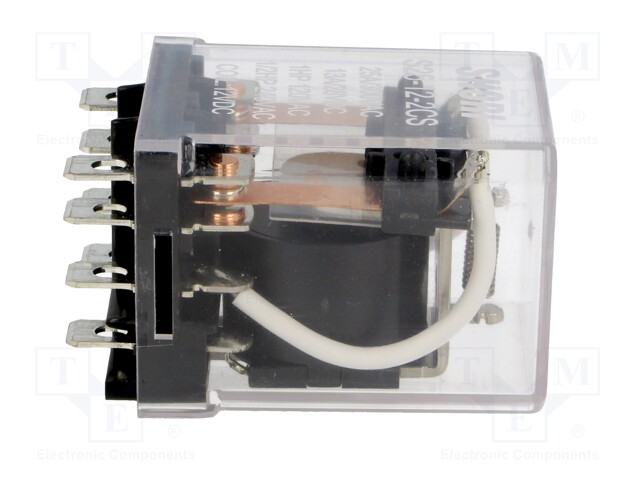

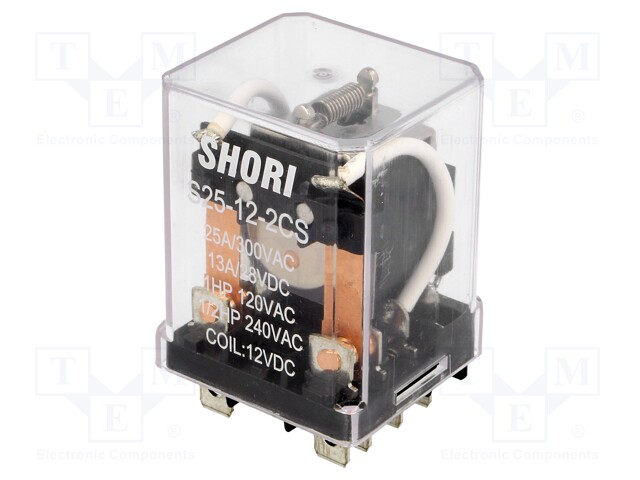

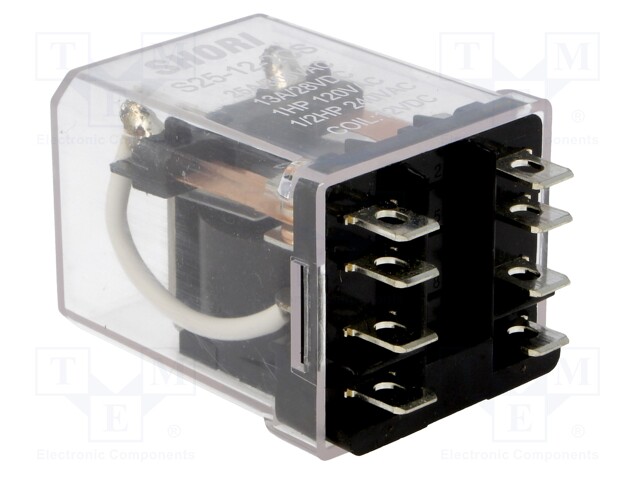

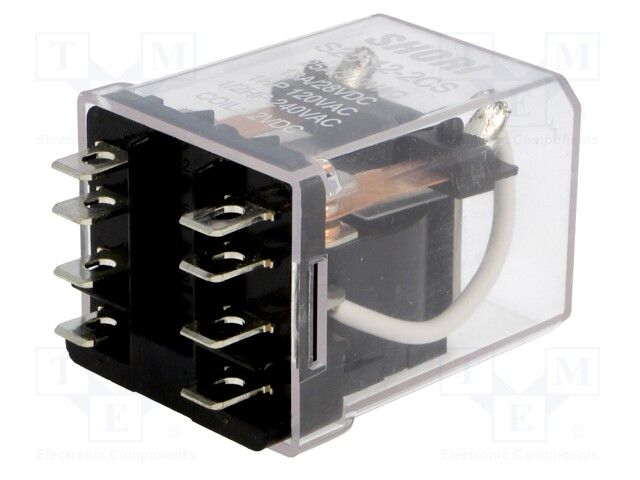

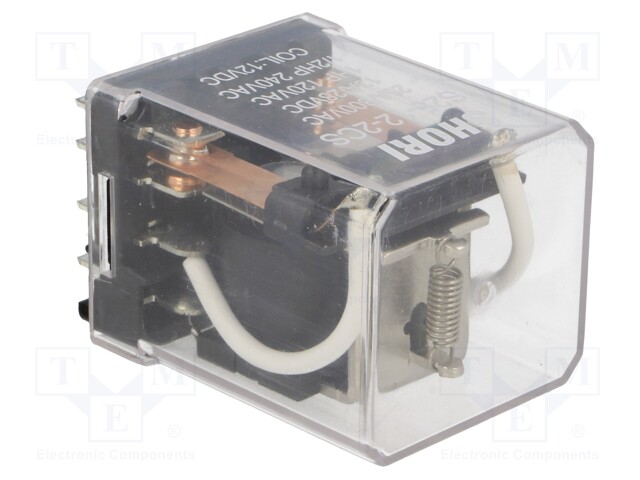

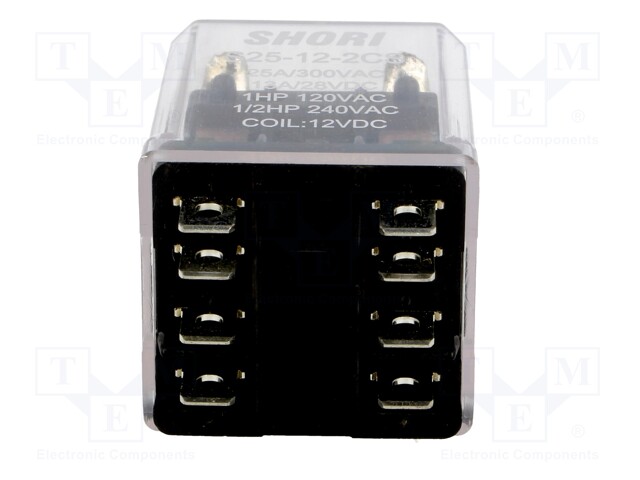

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 30A/250VAC; 13A/28VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S25-12-2CS
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S25-12-2CS
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    4,98 € 4,98 € (KM-TA) 4.98 EUR

    4,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 30A/250VAC; 13A/28VDC

    Mounting PCB
    Operating temperature -30...55°C
    IP rating IP40
    Leads connectors
    Body dimensions 34.8x38x47.5mm
    Switched voltage ≤ 30V DC, ≤ 300V AC
    Coil resistance 120Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 13A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 30A / 250V AC
    Contact current max. 30A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.2W
