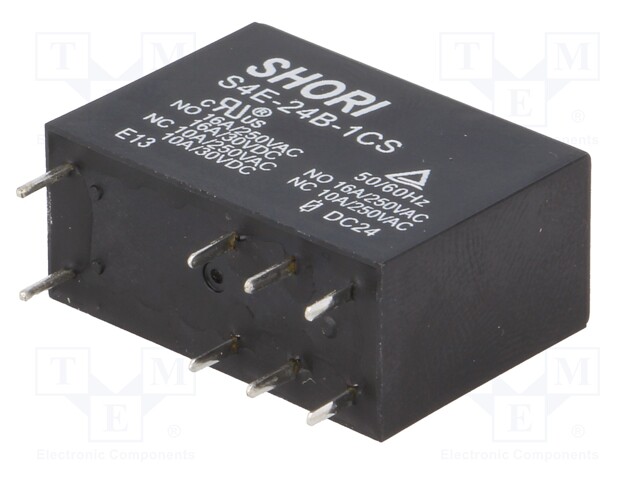

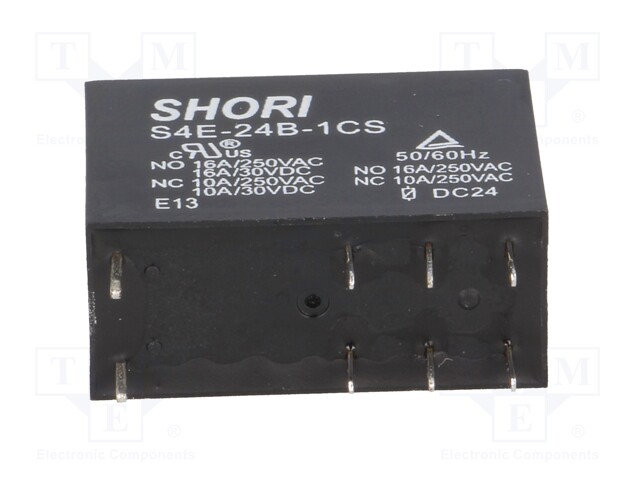

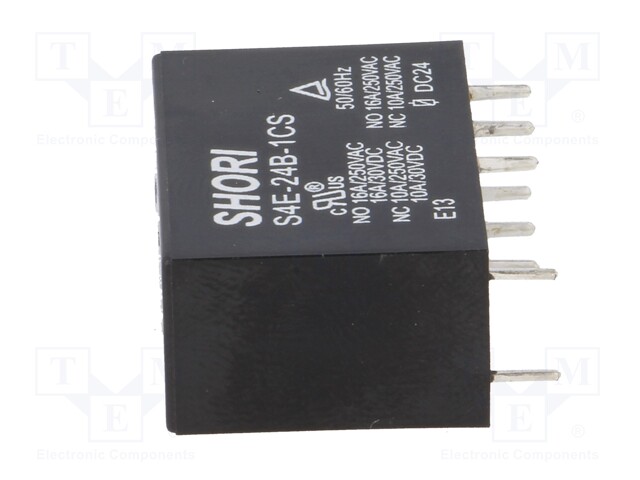

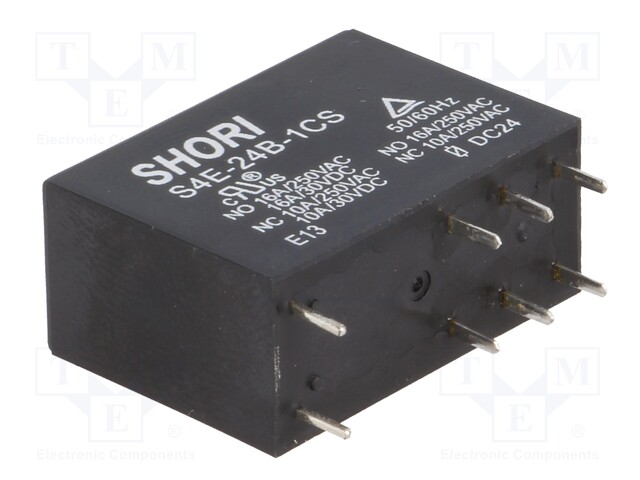

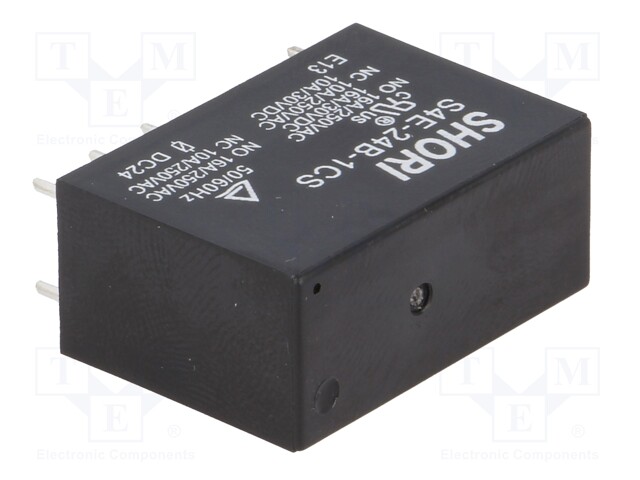

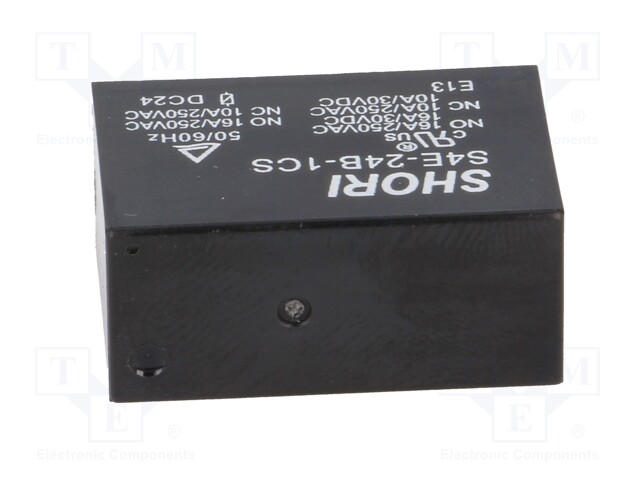

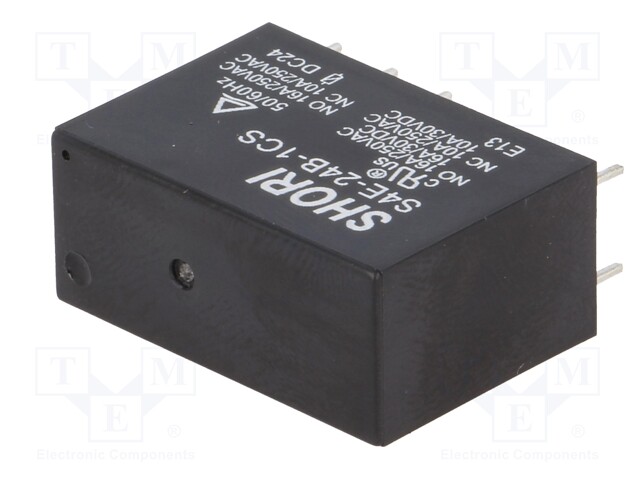

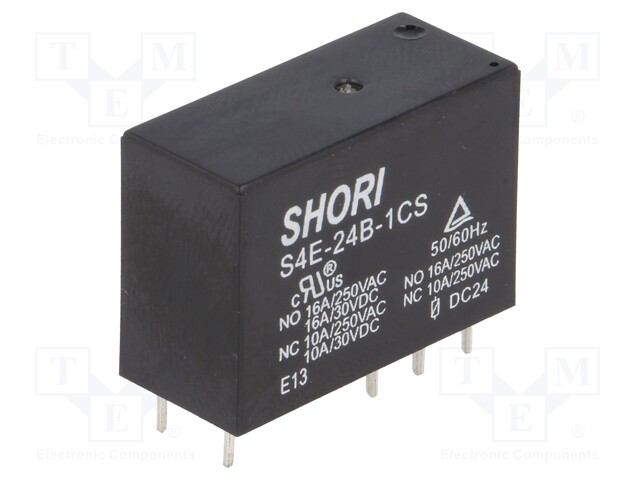

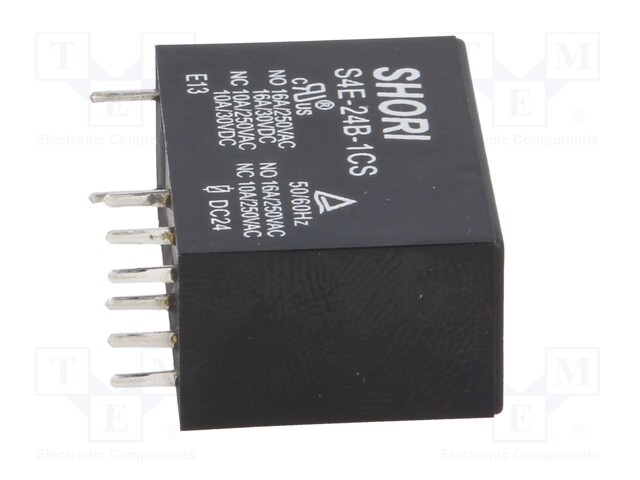

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S4E-24B-1C
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S4E-24B-1C
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    2,40 € 2,40 € (KM-TA) 2.4 EUR

    2,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 5mm

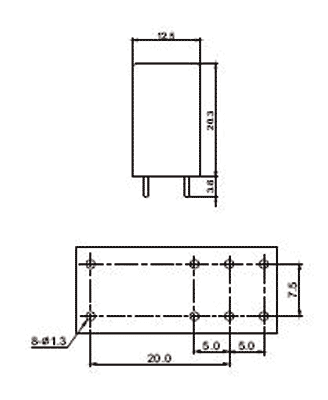

    Body dimensions 29x12.5x20.3mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Electrical life 100000cycles
    Coil resistance 800Ω
    Rated coil voltage 24V DC

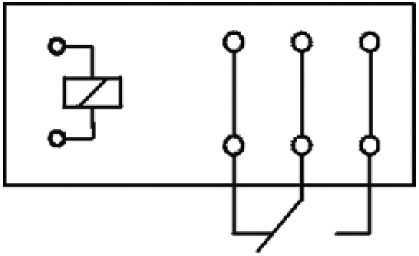

    Contacts configuration SPDT
    DC contacts rating @R 16A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 720mW
    Coil current 30mA
