Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S4H-24B-1C-F
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S4H-24B-1C-F
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 3.5mm

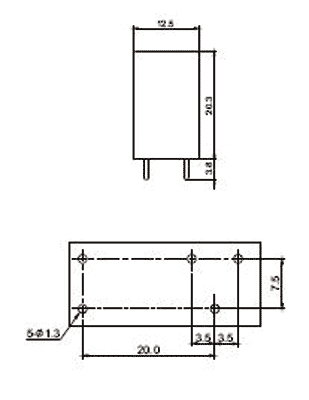

    Body dimensions 29x12.5x20.3mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Electrical life 100000cycles
    Coil resistance 800Ω
    Rated coil voltage 24V DC

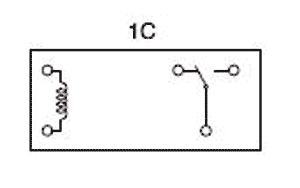

    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 720mW
    Coil current 30mA
