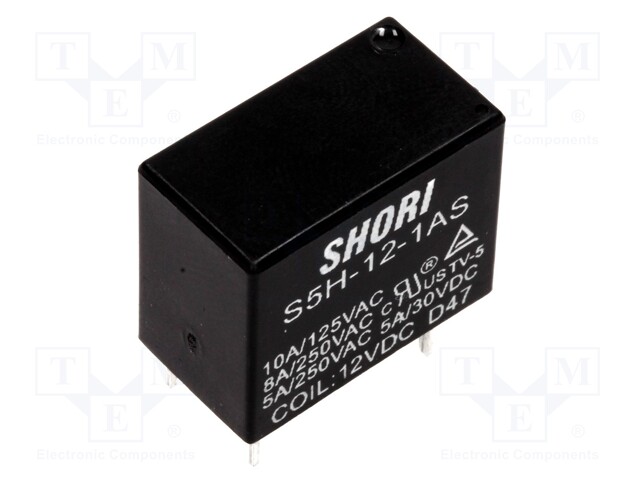

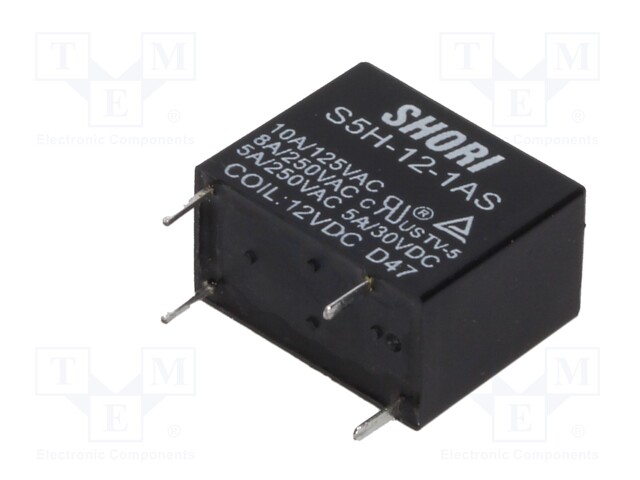

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S5H-12-1AS
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S5H-12-1AS
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    1,14 € 1,14 € (KM-TA) 1.1400000000000001 EUR

    1,14 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Mounting THT
    Operating temperature -40...70°C
    Terminal pitch 1.5mm
    Body dimensions 18.8x15.6x10.4mm
    Coil resistance 320Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 5ms
    Coil current 37.5mA
