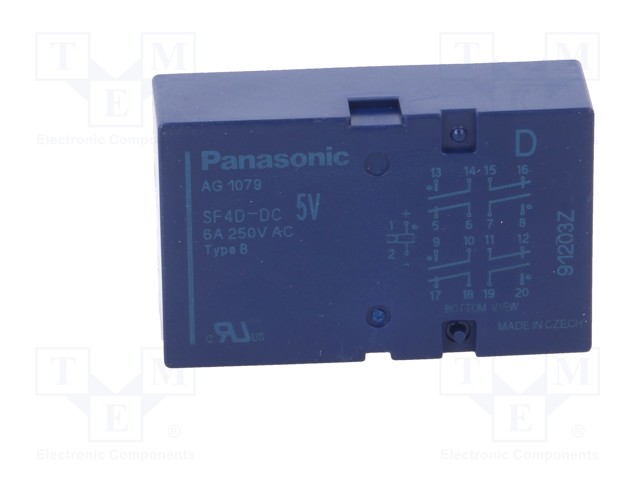

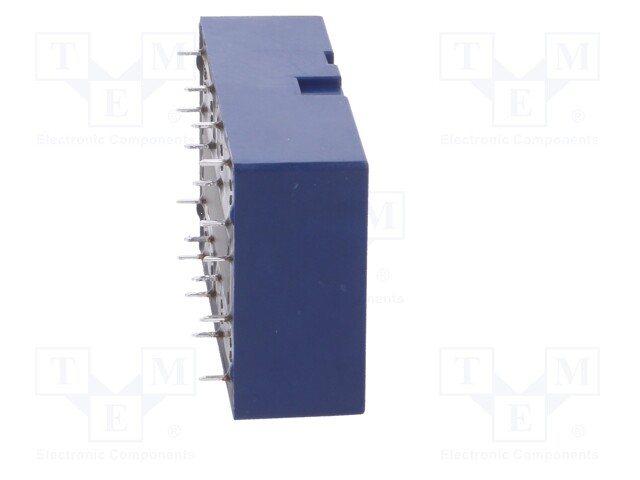

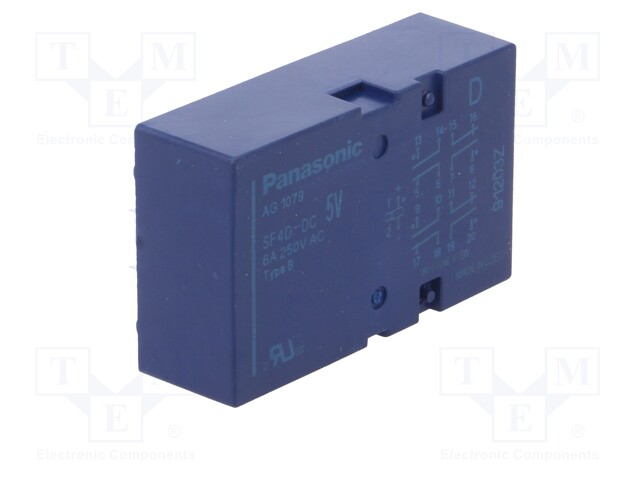

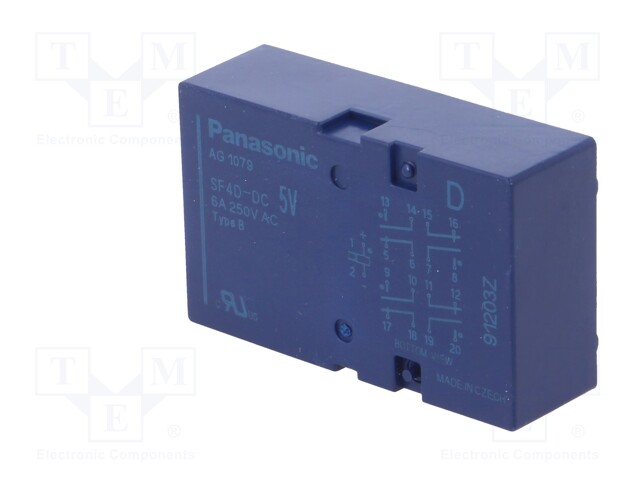

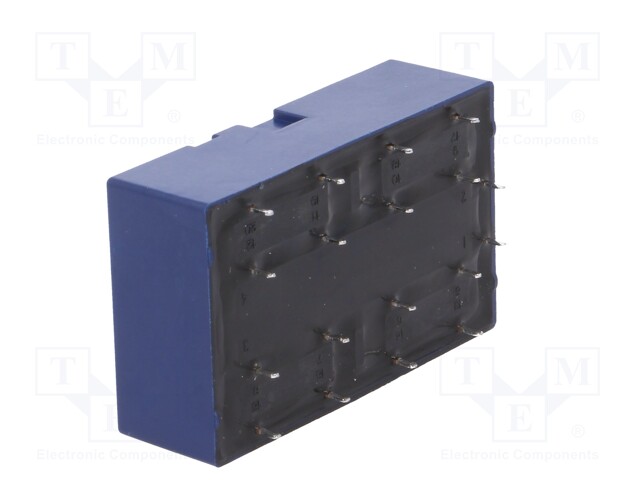

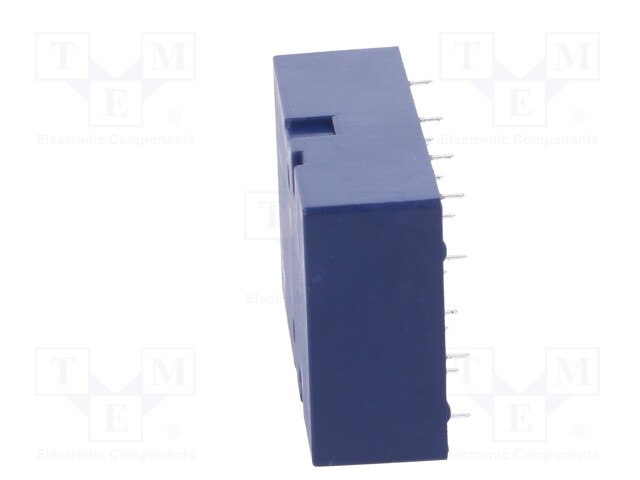

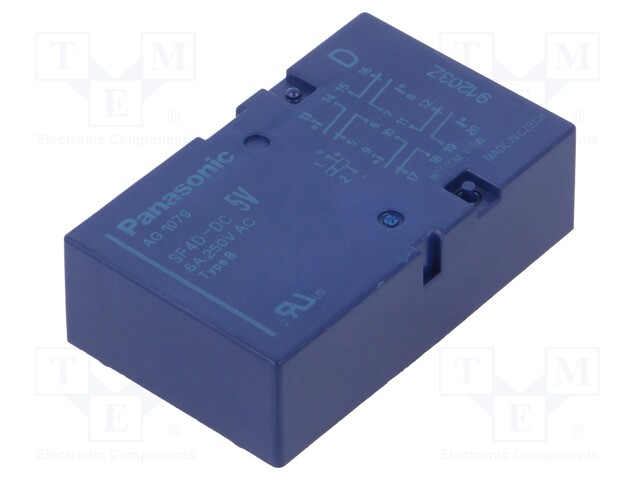

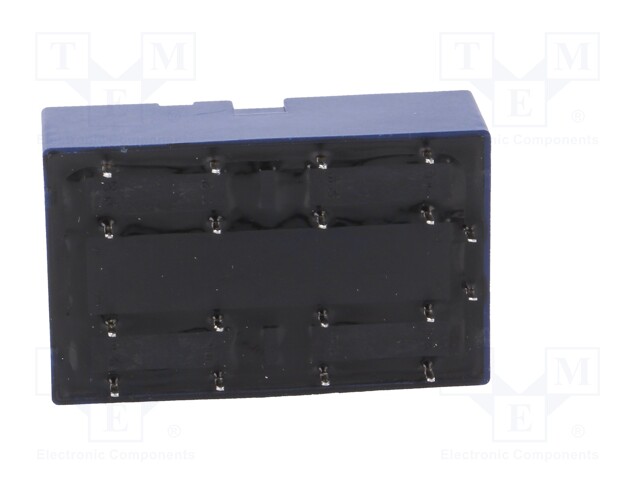

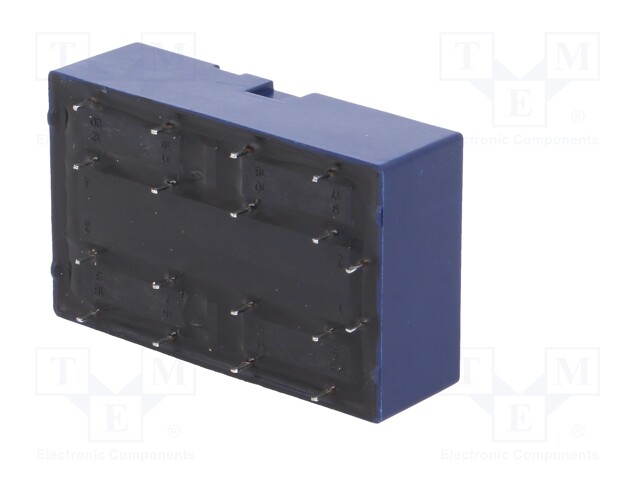

Relay: electromagnetic; SPST-NO x4 + SPST-NC x4; Ucoil: 5VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SF4D-DC5V
    Tootja: PANASONIC
    Tootja tootekood: SF4D-DC5V
    • Mounting
    • Operating temperature
    • Contact plating
    • Series
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    39,56 € 39,56 € (KM-TA) 39.56 EUR

    39,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO x4 + SPST-NC x4; Ucoil: 5VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Series SF4D
    Contact material AgSnO<sub>2</sub>

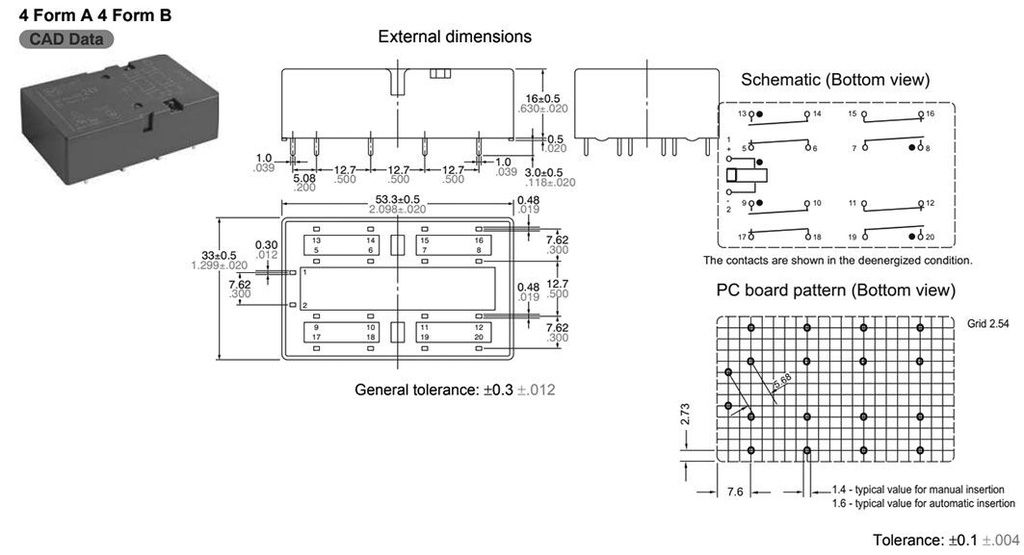

    Body dimensions 53.3x33x16mm
    Switched voltage ≤ 400V AC
    Coil resistance 50Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO x4 + SPST-NC x4
    DC contacts rating @R 3A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant miniature, safety
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 0.5W
