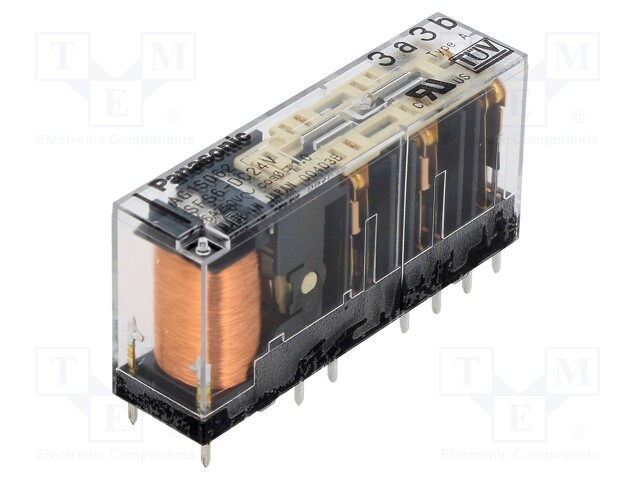

Relay: electromagnetic; NC x3 + NO x3; Ucoil: 24VDC; 6A/250VAC; 6A

    Kordarv: 200.0
    Minimum quantity: 200.0
    Tootekood: SFS6-DC24V
    Tootja: PANASONIC
    Tootja tootekood: SFS6-DC24V
    • Mounting
    • Operating temperature
    • Number of pins
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Rated voltage
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil current

    26,04 € 26,04 € (KM-TA) 26.04 EUR

    26,04 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; NC x3 + NO x3; Ucoil: 24VDC; 6A/250VAC; 6A

    Mounting socket
    Operating temperature -40...85°C
    Number of pins 14

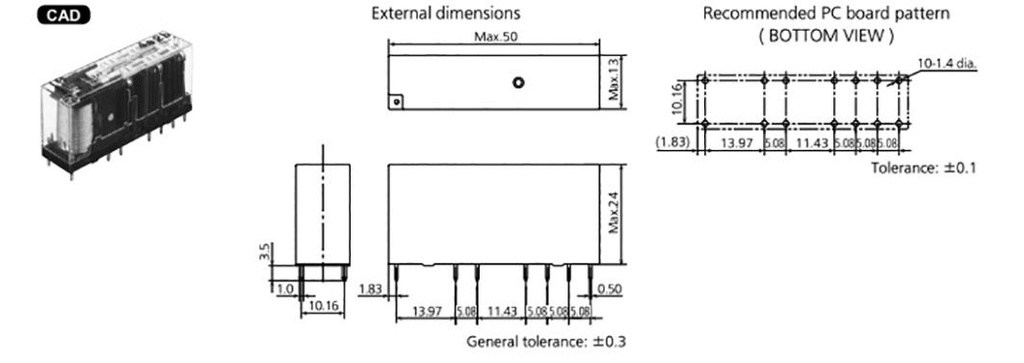

    Body dimensions 50x13x24mm
    Current rating 6A
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Rated voltage 250V AC
    Rated coil voltage 24V DC

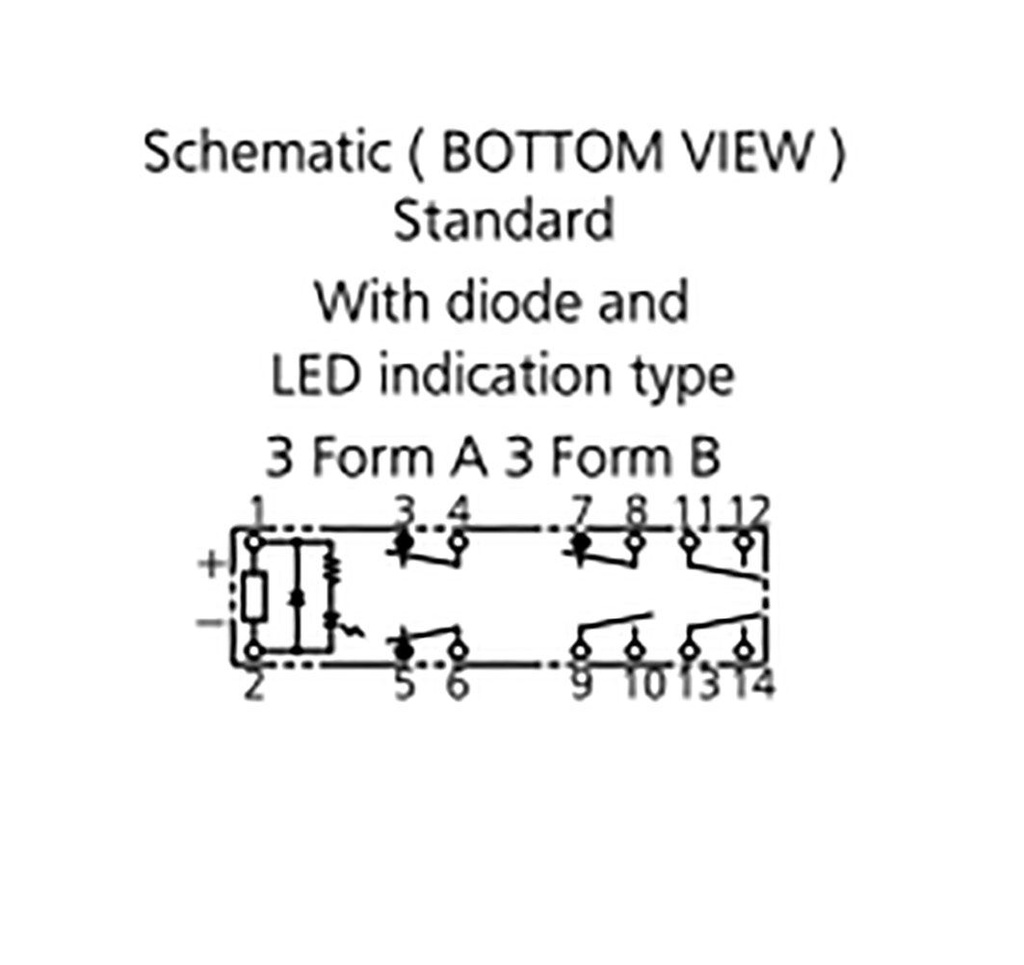

    Contacts configuration NC x3 + NO x3
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant industrial, safety
    Type of relay electromagnetic
    Coil current 20.8mA
