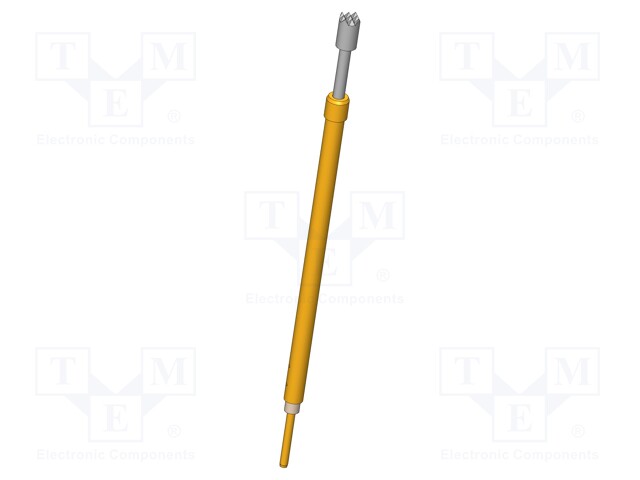

Test needle; Maksimum spring compression: 5mm; 3A; Contacts: CuBe

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SKS-215 306 180 N 3002
    Tootja: INGUN
    Tootja tootekood: SKS-215 306 180 N 3002
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    17,26 € 17,26 € (KM-TA) 17.26 EUR

    17,26 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Maksimum spring compression: 5mm; 3A; Contacts: CuBe

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating nickel plated
    Contact material CuBe
    Current rating 3A

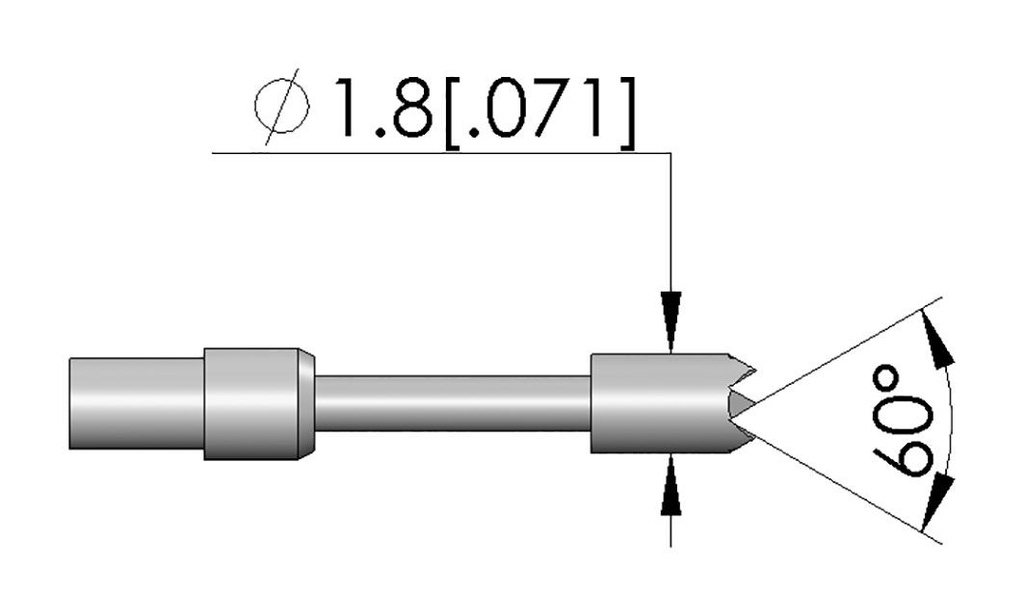

    Tip diameter 1.8mm
    Type of test accessories test probe
    Maksimum spring compression 5mm
