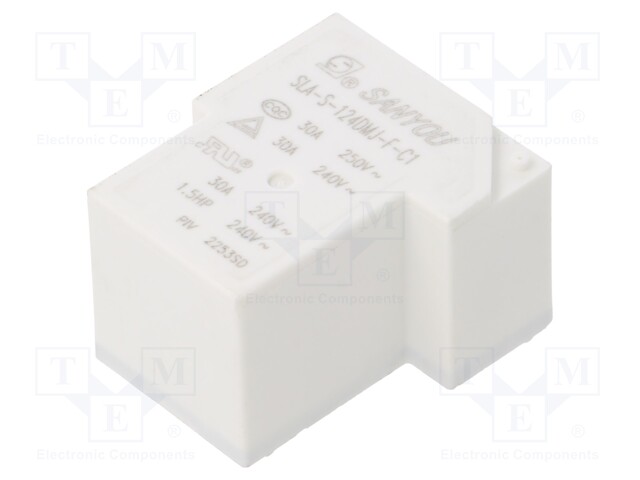

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; Series: SLA; THT

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SLA-S-124DMJ-F-C1
    Tootja: SANYOU
    Tootja tootekood: SLA-S-124DMJ-F-C1
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Type of relay
    • Coil power consumption

    2,10 € 2,10 € (KM-TA) 2.1 EUR

    2,10 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; Series: SLA; THT

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Switched voltage ≤ 250V AC
    Coil resistance 640Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 30A / 250V AC
    Contact current max. 30A
    Type of relay electromagnetic
    Coil power consumption 0.9W
