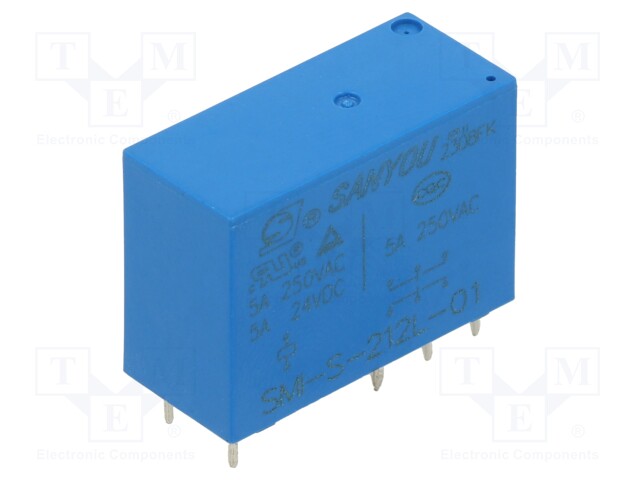

Relay: electromagnetic; Ucoil: 12VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SMI-S-212L
    Tootja: SANYOU
    Tootja tootekood: SMI-S-212L
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Current rating
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2,64 € 2,64 € (KM-TA) 2.64 EUR

    2,64 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; Ucoil: 12VDC

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 29.2x12.8x20.6mm
    Current rating 8A
    Switched voltage ≤ 277V AC
    Coil resistance 270Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 277V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 540mW
