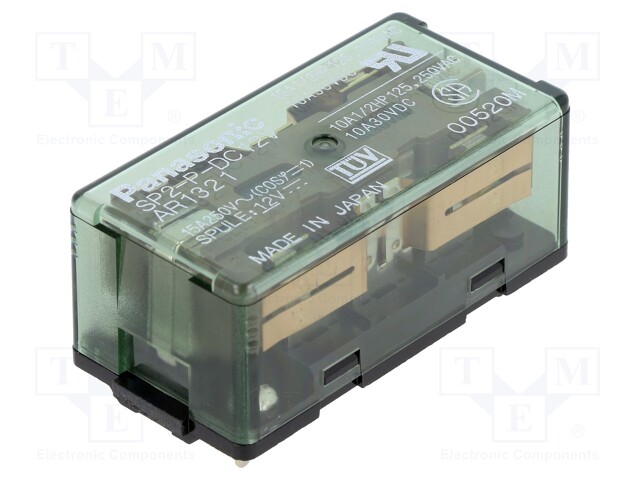

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 15A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SP2-P-DC12V
    Tootja: PANASONIC
    Tootja tootekood: SP2-P-DC12V
    • Mounting
    • Operating temperature
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current

    32,06 € 32,06 € (KM-TA) 32.06 EUR

    32,06 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 15A/250VAC; 10A/30VDC

    Mounting THT
    Operating temperature -50...60°C
    Leads for soldering
    Number of pins 8
    Contact material AgCdO

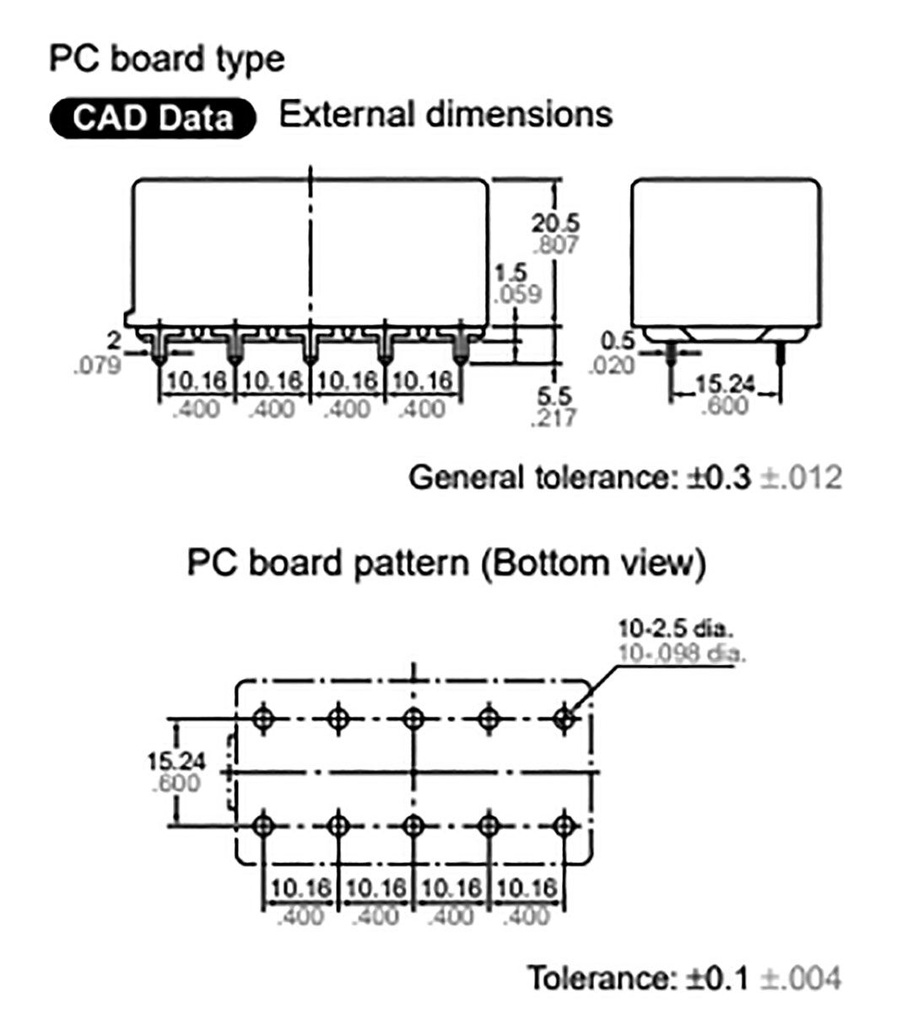

    Body dimensions 50x25.6x20.5mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 480Ω
    Rated coil voltage 12V DC

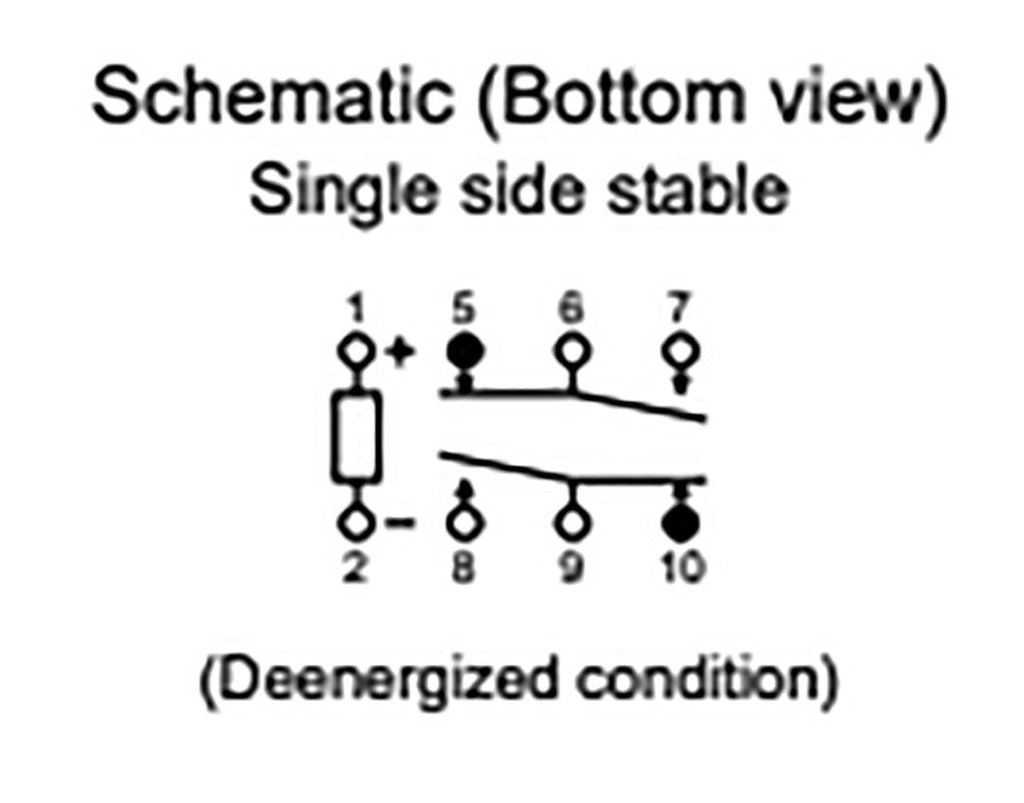

    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 15A / 250V AC
    Contact current max. 15A
    Relay variant industrial
    Type of relay electromagnetic
    Coil current 25mA
