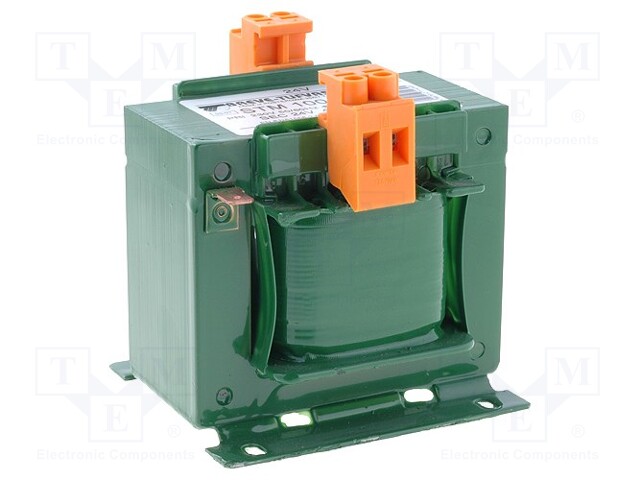

Transformer: mains; 100VA; 230VAC; 36V; Leads: terminal block; IP00

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: STM100/36V
    Tootja: BREVE TUFVASSONS
    Tootja tootekood: 16227-9983
    • Mounting
    • IP rating
    • Leads
    • Body dimensions
    • D dimension
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • Conform to the norm
    • C dimension
    • E dimension
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Power VA

    47,75 € 47,75 € (KM-TA) 47.75 EUR

    47,75 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: mains; 100VA; 230VAC; 36V; Leads: terminal block; IP00

    Mounting screw type
    IP rating IP00
    Leads terminal block

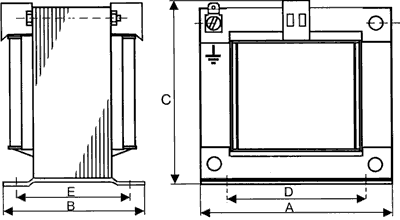

    Body dimensions 84x95x75mm
    D dimension 64mm
    Insulation class I
    B dimension 75mm
    A dimension 84mm
    Conform to the norm PN-EN 61558-2-4, PN-EN 61558-2-6
    C dimension 95mm
    E dimension 61mm
    Type of transformer mains
    Primary voltage 230V AC
    Secondary voltage 1 36V
    Thermal class B
    Power VA 100VA
