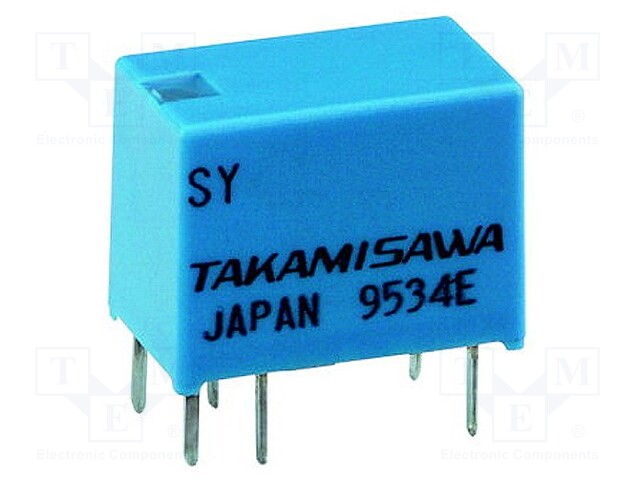

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/120VAC; 1A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SY-12W-K
    Tootja: FUJITSU
    Tootja tootekood: SY-12W-K
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time

    2,51 € 2,51 € (KM-TA) 2.5100000000000002 EUR

    2,51 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/120VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -30...90°C
    Contact material AgPd/Au 0,2μm
    Terminal pitch 2.54mm

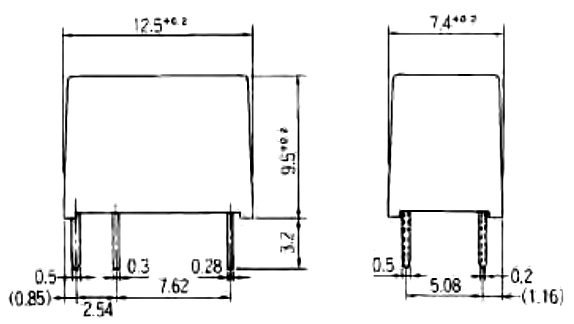

    Body dimensions 12.5x7.4x9.4mm
    Mechanical durability 5000000cycles
    Switched voltage ≤ 60V DC, ≤ 120V AC
    Electrical life 100000cycles
    Switching capacity 24W, 60VA
    Coil resistance 960Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 500mA / 120V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 150mW
    Operate time 5ms
