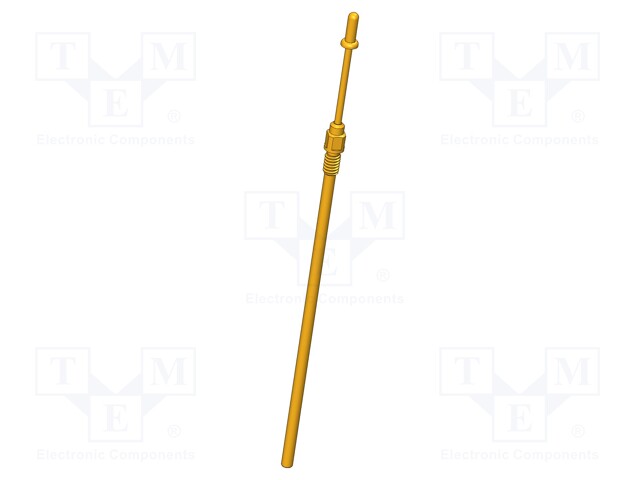

Test needle; Operational spring compression: 4mm; 3A; Ø: 0.6mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: T-097 305 060 180 100A1102MO-G
    Tootja: INGUN
    Tootja tootekood: T-097 305 060 180 100A1102MO-G
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 3A; Ø: 0.6mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 50mΩ
    Current rating 3A
    Tip diameter 600µm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm
    Blade tip shape rounded
