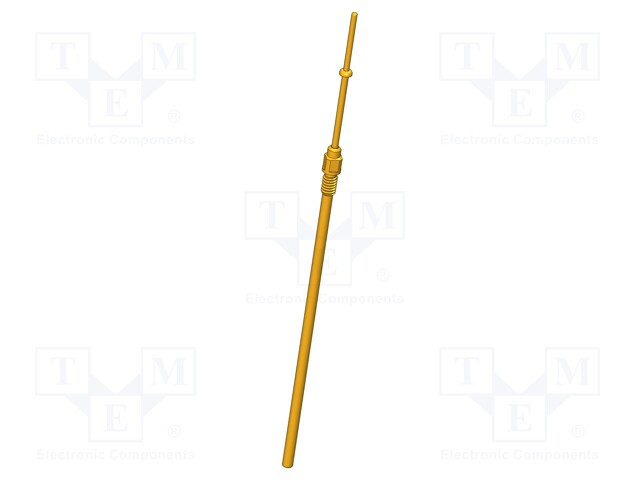

Test needle; Operational spring compression: 4mm; 3A; Ø: 0.35mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: T-097 383 035 400 080A1102MO-G
    Tootja: INGUN
    Tootja tootekood: T-097 383 035 400 080A1102MO-G
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 3A; Ø: 0.35mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 50mΩ
    Current rating 3A
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm
    Blade tip shape flat
