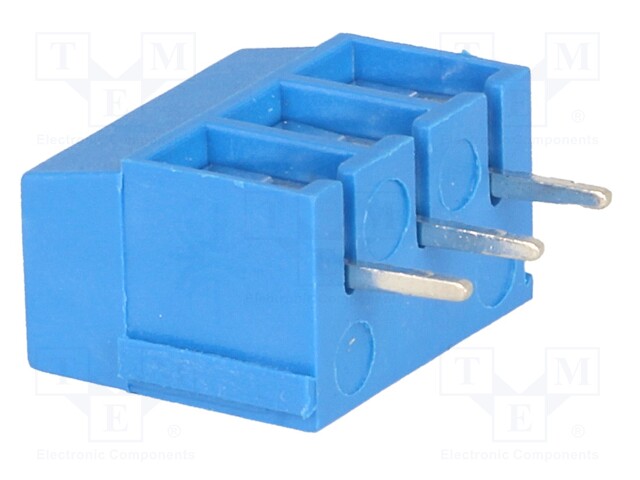

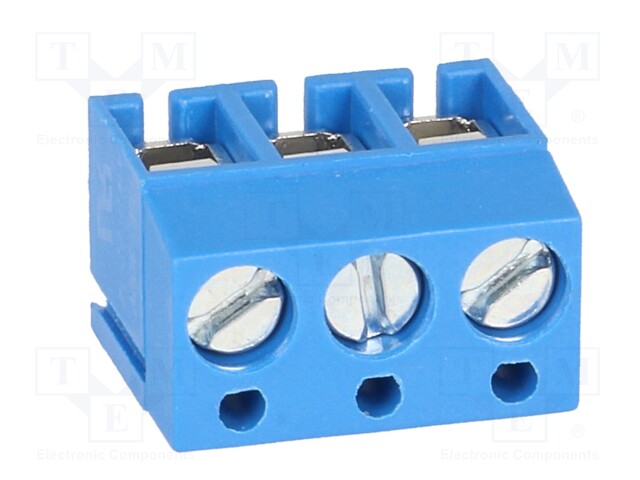

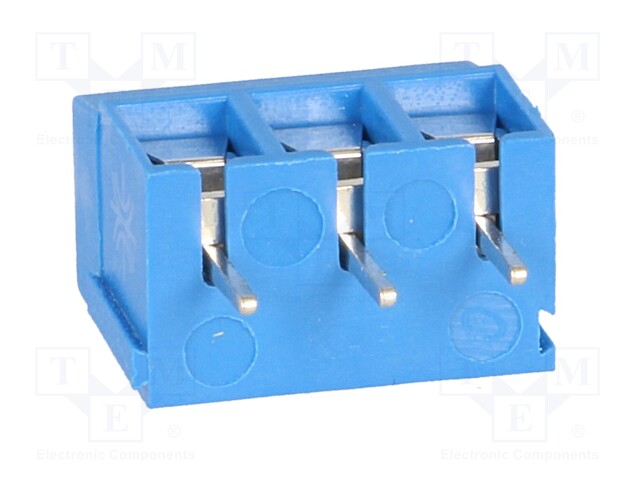

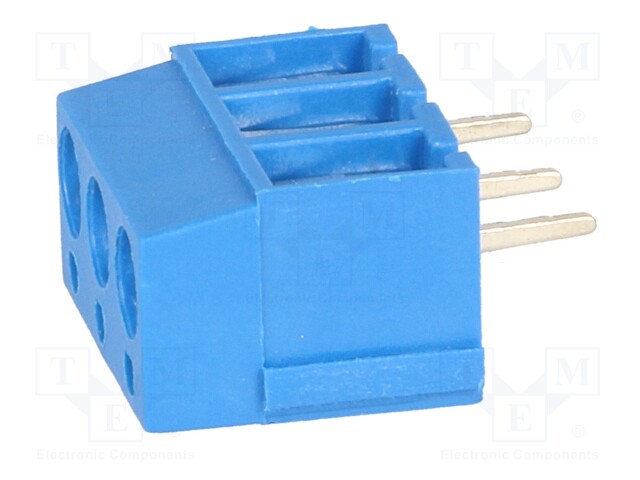

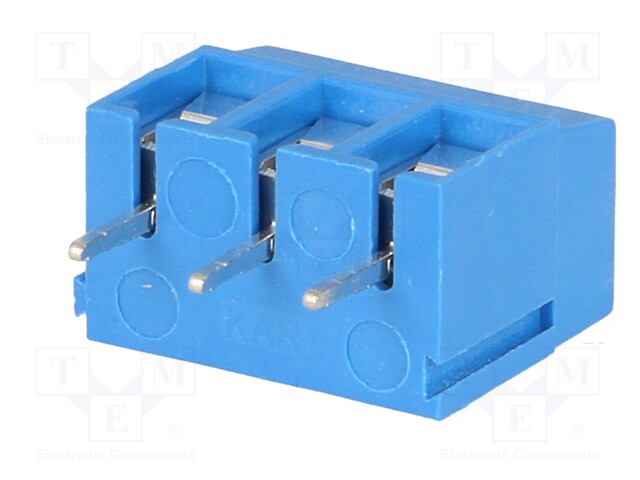

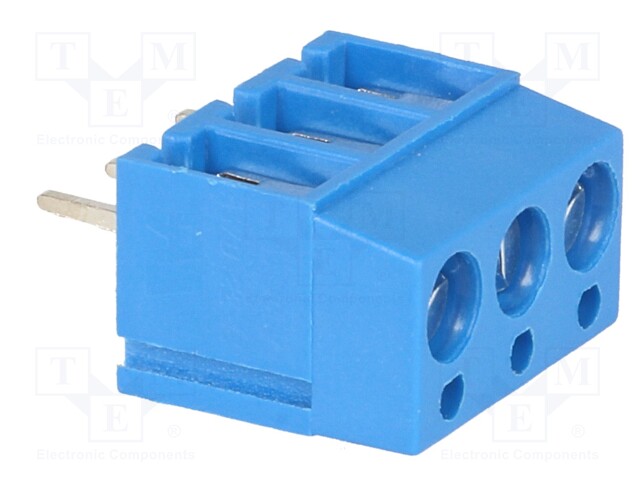

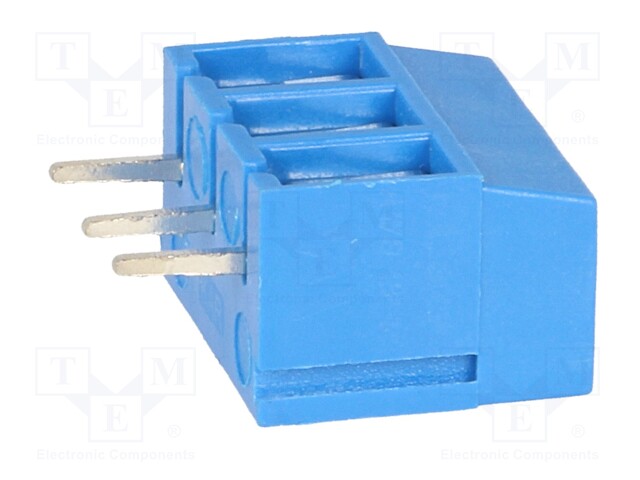

PCB terminal block; angled 90°; 5mm; ways: 3; on PCBs; 2.5mm2; 16A

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: TB-5.0-P-3P1-BL
    Tootja: NINIGI
    Tootja tootekood: TB-5.0-P-3P1-BL
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Connector variant
    • Spatial orientation
    • Connectors features
    • Depth

    1,60 € 1,60 € (KM-TA) 1.6 EUR

    1,60 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele PCB terminal block; angled 90°; 5mm; ways: 3; on PCBs; 2.5mm2; 16A

    Operating temperature -30...120°C
    Contacts pitch 5mm
    Electrical mounting screw terminal, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour blue
    Contact plating tinned
    Type of connector PCB terminal block
    Contact material brass
    Body material PBT
    Flammability rating UL94V-0
    Length 15mm
    Height 12.5mm
    Current rating 16A
    Number of ways 3
    Type of pin configuration 1x3
    Connector variant with wire protector
    Spatial orientation angled 90°
    Connectors features assembling possibility
    Depth 9mm
