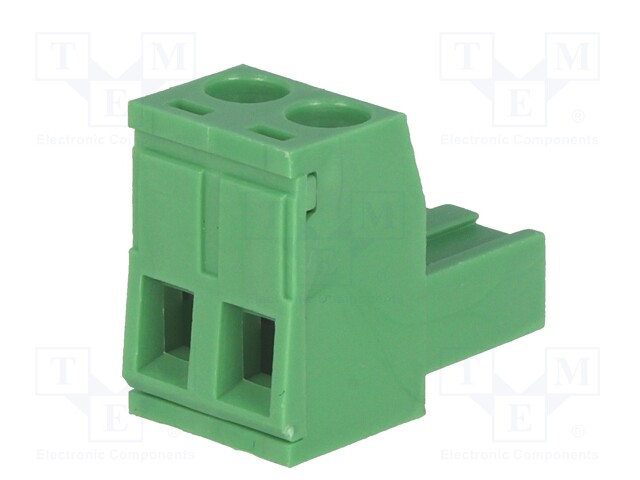

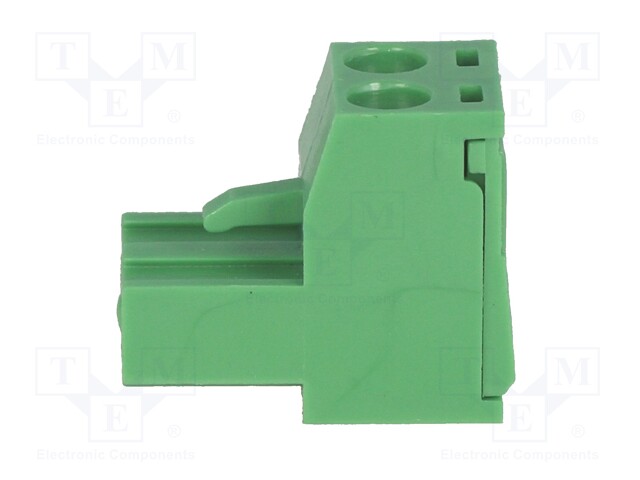

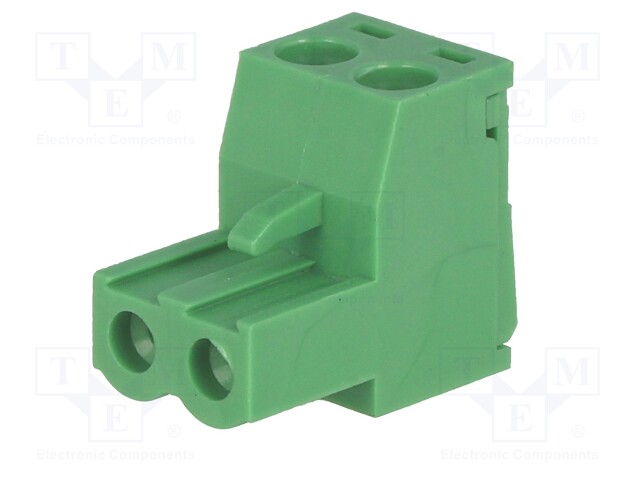

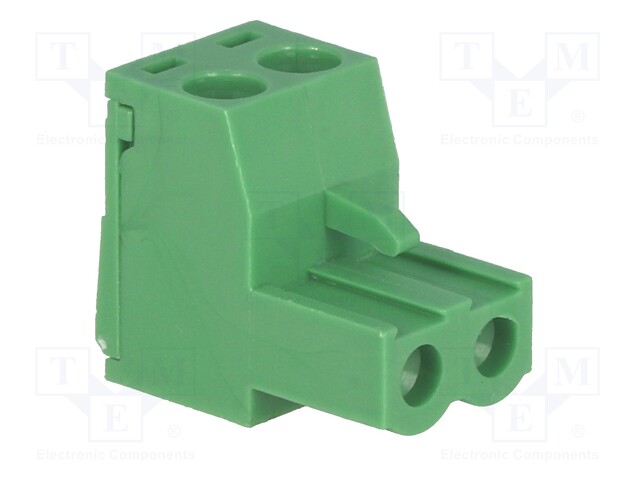

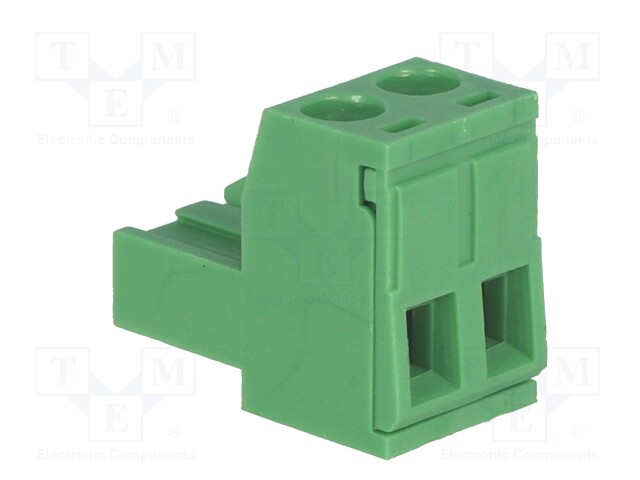

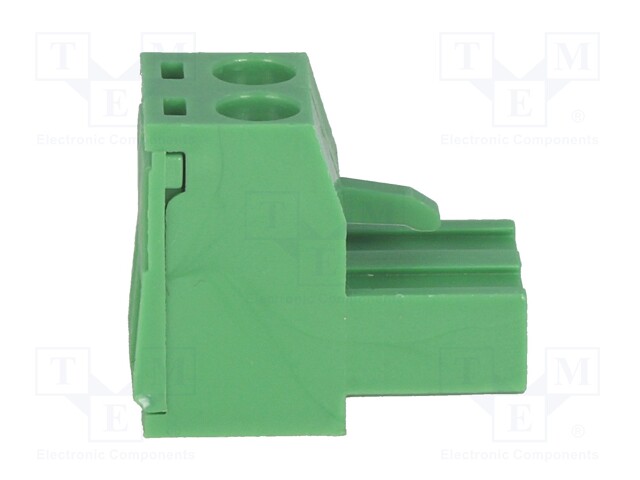

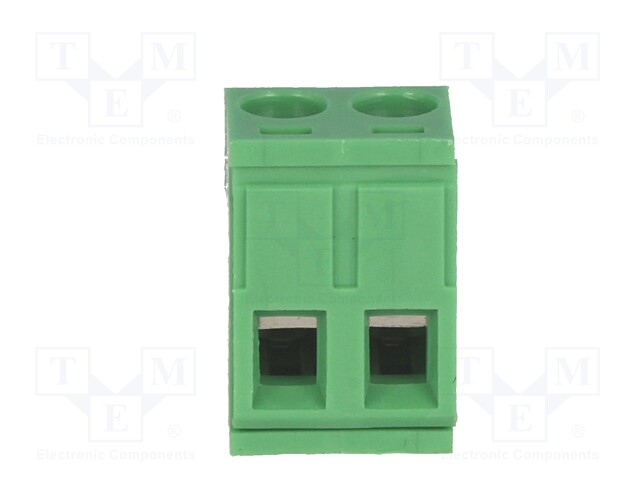

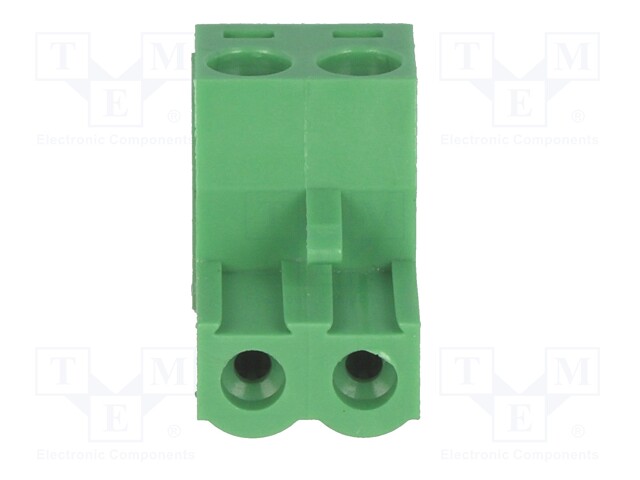

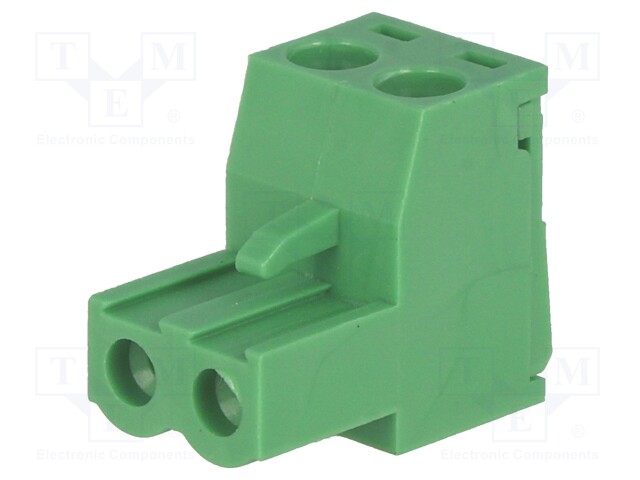

Pluggable terminal block; Contacts ph: 5.08mm; ways: 2; straight

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: TBW-5-2P/GN
    Tootja: NINIGI
    Tootja tootekood: TBW-5-2P/GN
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Locking system
    • Spatial orientation
    • Depth
    • Stripped wire length

    0,97 € 0,97 € (KM-TA) 0.97 EUR

    0,97 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 5.08mm; ways: 2; straight

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Contact material brass
    Body material polyamide
    Flammability rating UL94V-0

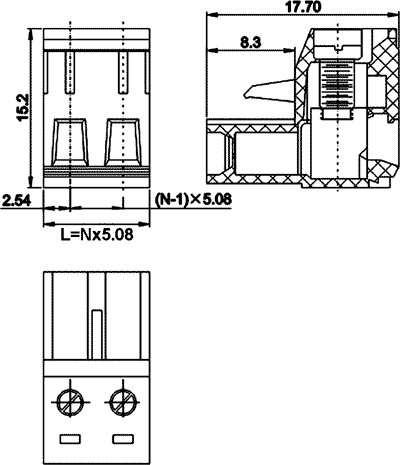

    Length 10.16mm
    Height 15.2mm
    Current rating 15A
    Number of ways 2
    Type of pin configuration 1x2
    Number of terminals 2
    Locking system latch
    Spatial orientation straight
    Depth 17.7mm
    Stripped wire length 8mm
