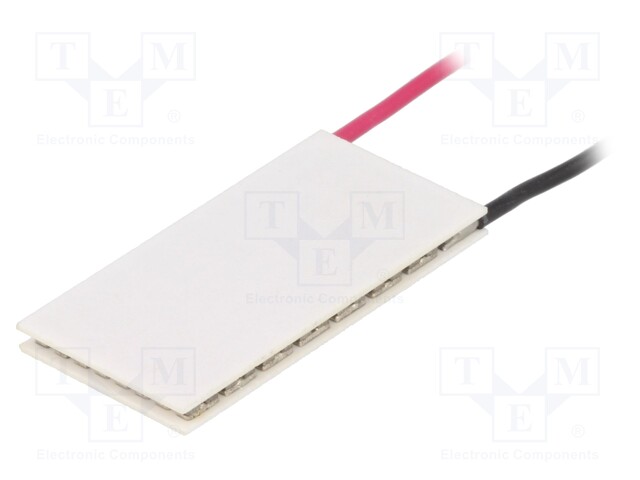

Module: Peltier; 7.5V; 12A; 20x40x3.1mm; 65W; Mat: Al2O3; 16AWG; 63°C

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TEC1-06315
    Tootja: STONECOLD
    Tootja tootekood: TEC1-06315
    • Resistance
    • Max. operating current
    • Operating temperature
    • Material
    • Contact material
    • Body dimensions
    • Max. operating voltage
    • Max. temperature difference
    • Wire insulation material
    • Max. heat pump capacity
    • Cable length

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: Peltier; 7.5V; 12A; 20x40x3.1mm; 65W; Mat: Al2O3; 16AWG; 63°C

    Resistance 300mΩ
    Max. operating current 12A
    Operating temperature ≤ 80°C
    Material Al₂O₃
    Contact material BiSn
    Body dimensions 20x40x3.1mm
    Max. operating voltage 7.5V
    Max. temperature difference 63°C
    Wire insulation material teflon
    Max. heat pump capacity 65W
    Cable length 150mm
