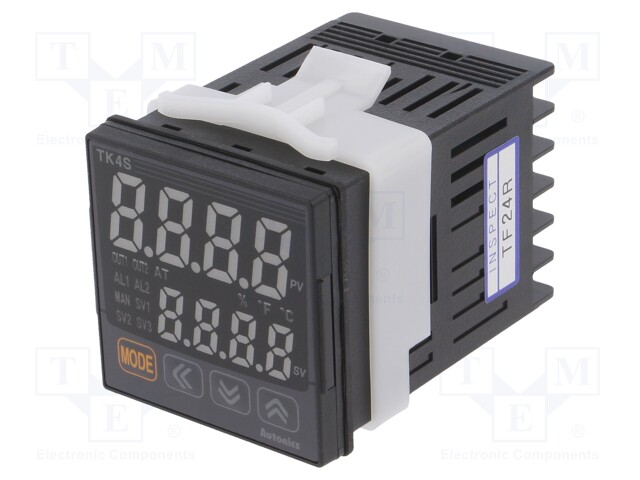

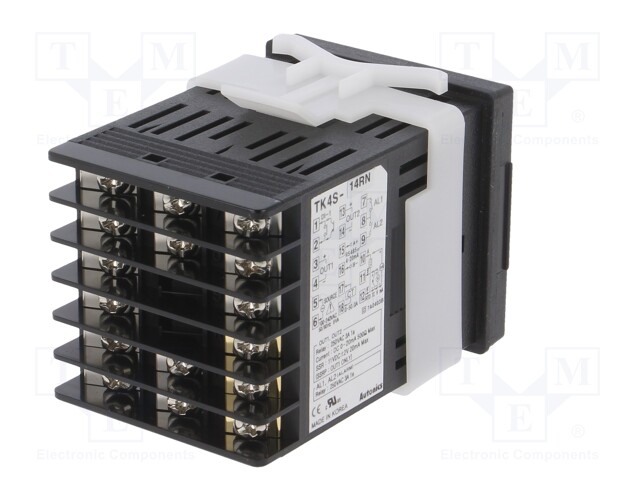

Module: regulator; temperature; SPST-NO; SPST-NO; on panel; IP65
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TK4S-14RN
Tootja: AUTONICS
Tootja tootekood: TK4S-14RN
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; SPST-NO; on panel; IP65
| Mounting | on panel |
| Supply voltage | 100...240V AC |
| Operating temperature | -10...50°C |
| IP rating | IP65 |
| Mounting hole diameter | 45x45mm |
| Body dimensions | 48x48x70.5mm |
| Kind of display used | 2x LED |
| Kind of input 1 | 0...100mV, 0...10V, 0...20mA, 0...5V, 4...20mA, universal |
| Kind of temperature sensor | Cu100, Cu50, JPt100, Ni120, Pt100, Pt50, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 3 | SPST-NO |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 14mm |
| Regulation for output 1 | ON-OFF, P, PD, PI, PID |
| Display 2 height | 10mm |
