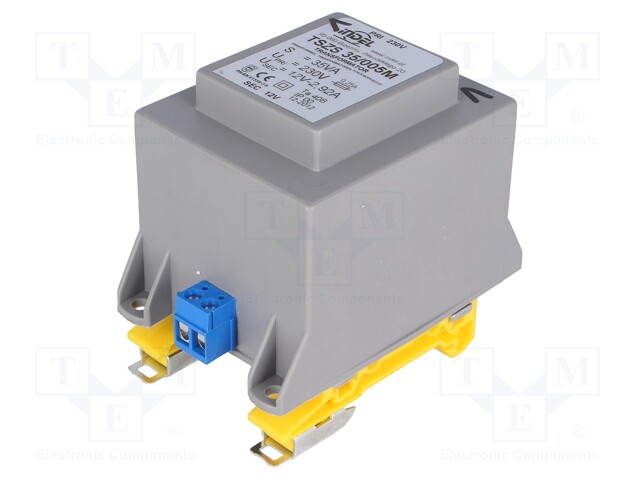

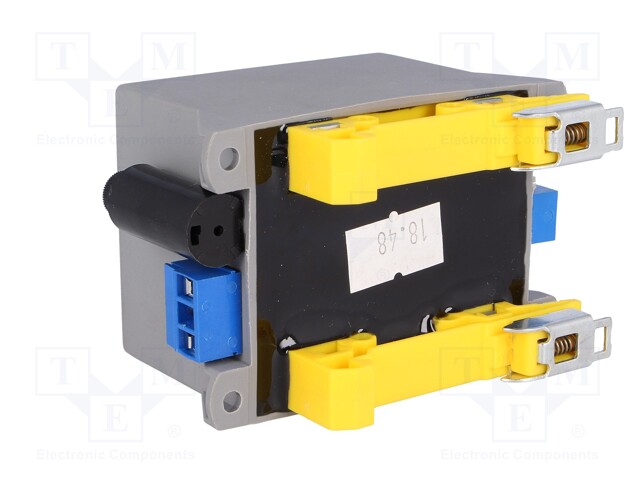

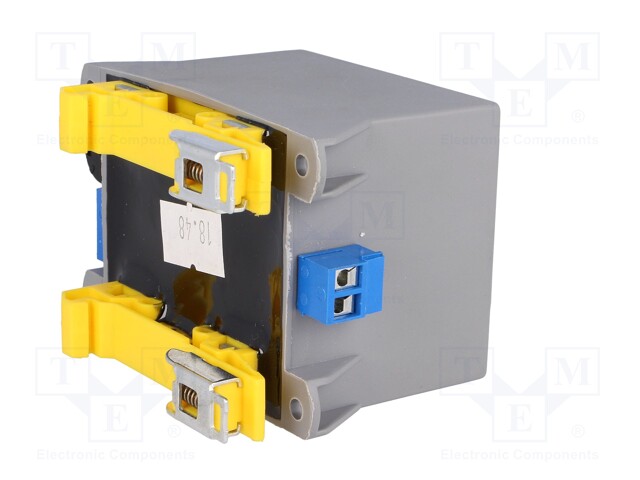

Transformer: encapsulated; 35VA; 230VAC; 12V; 2.92A; Mounting: DIN

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZS 35/005M
    Tootja: INDEL
    Tootja tootekood: TSZS 35/005M
    • Mounting
    • IP rating
    • Leads
    • Flammability rating
    • D1 dimension
    • D dimension
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • C dimension
    • E dimension
    • Type of transformer
    • B1 dimension
    • A1 dimension
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Power VA

    40,87 € 40,87 € (KM-TA) 40.87 EUR

    40,87 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 35VA; 230VAC; 12V; 2.92A; Mounting: DIN

    Mounting for DIN rail mounting
    IP rating IP00
    Leads terminal block
    Flammability rating UL94V-0

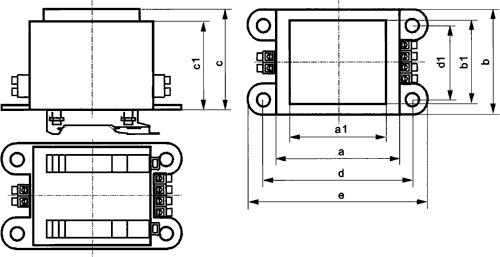

    D1 dimension 43.5mm
    D dimension 72.5mm
    Insulation class II
    B dimension 53.6mm
    A dimension 63.6mm
    Conform to the norm PN-EN 61558
    C dimension 56.5mm
    E dimension 81.8mm
    Type of transformer encapsulated
    B1 dimension 35.8mm
    A1 dimension 41.8mm
    C1 dimension 47.3mm
    Primary voltage 230V AC
    Secondary voltage 1 12V
    Thermal class Ta40B
    Secondary winding current 1 2.92A
    Power VA 35VA
