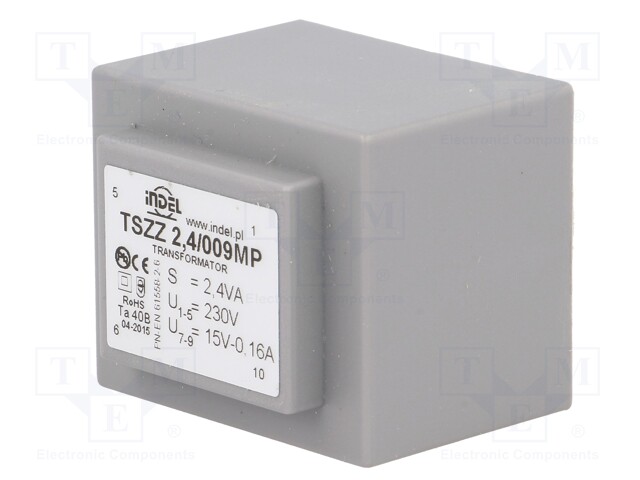

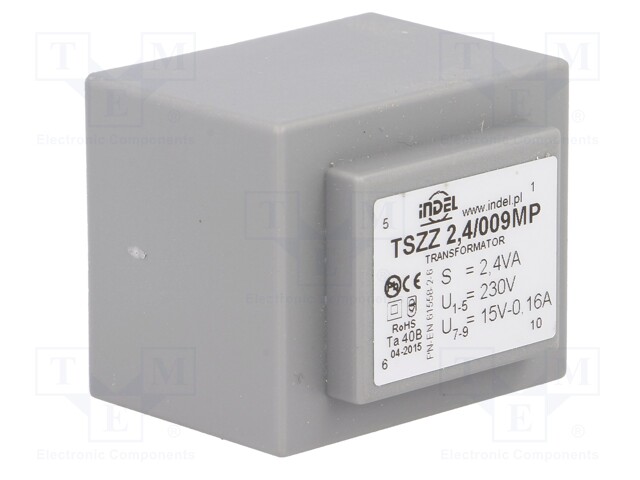

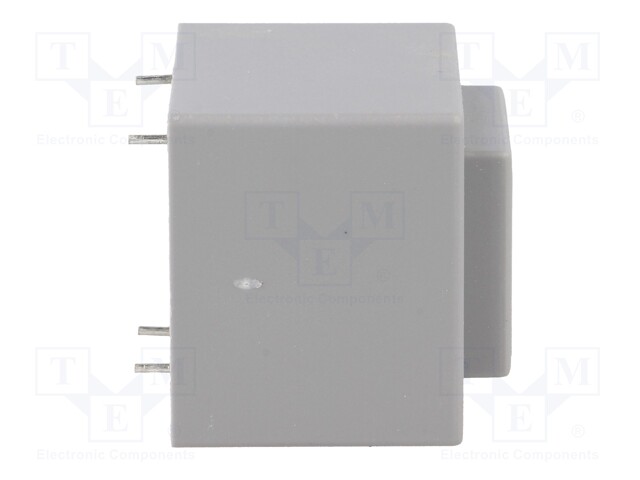

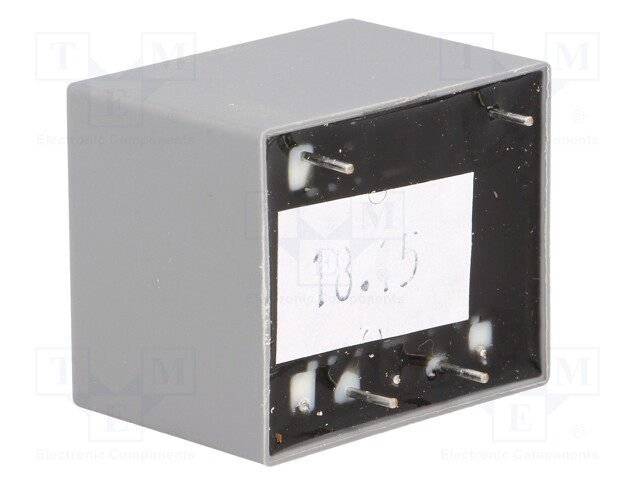

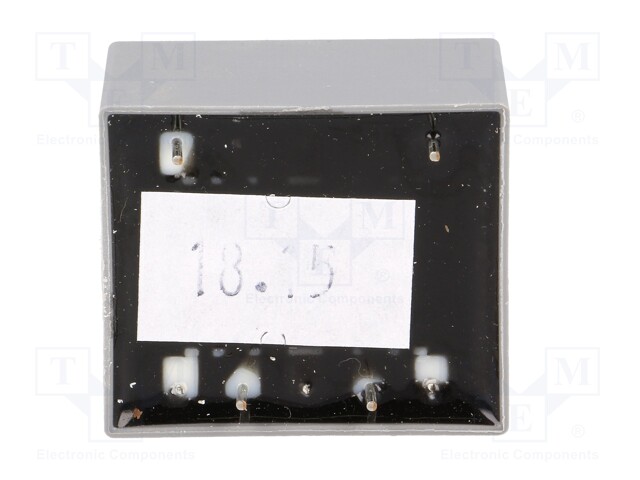

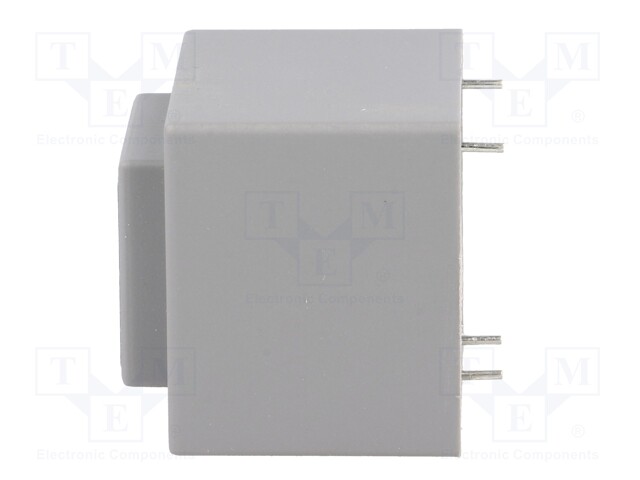

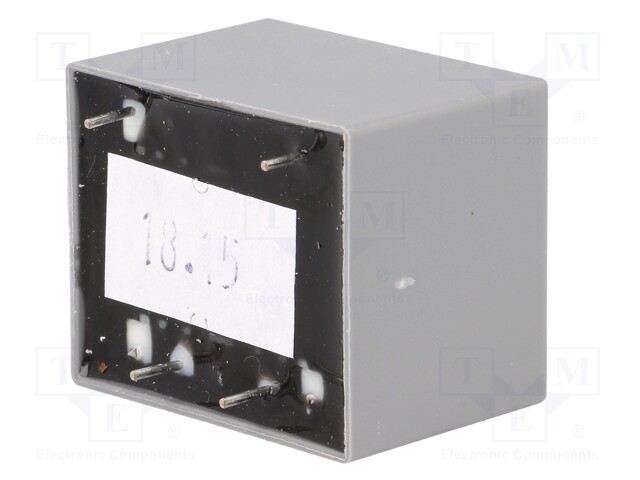

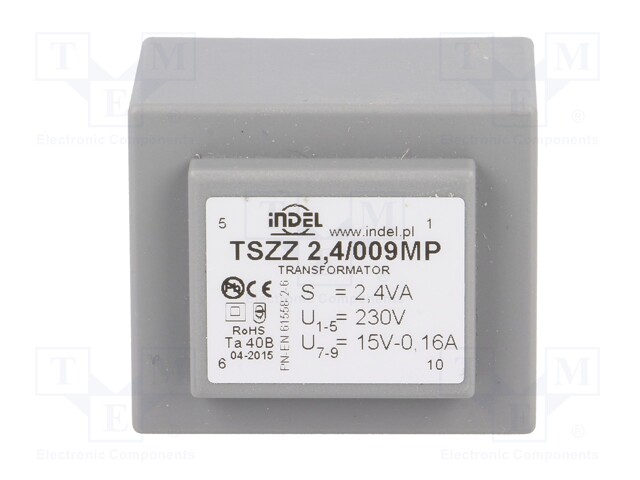

Transformer: encapsulated; 2.4VA; 230VAC; 15V; 0.16A; Mounting: PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZZ2.4/009MP
    Tootja: INDEL
    Tootja tootekood: TSZZ2.4/009MP
    • Mounting
    • IP rating
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • C dimension
    • Type of transformer
    • B1 dimension
    • A1 dimension
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding terminals
    • P dimension
    • M dimension
    • Power VA

    5,00 € 5,00 € (KM-TA) 5.0 EUR

    5,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 2.4VA; 230VAC; 15V; 0.16A; Mounting: PCB

    Mounting PCB
    IP rating IP00
    Insulation class II

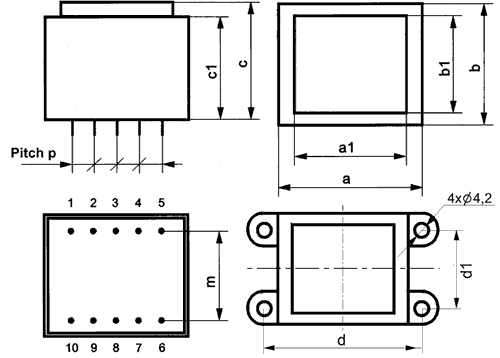

    B dimension 27.1mm
    A dimension 32.1mm
    Conform to the norm PN-EN 61558
    C dimension 26.8mm
    Type of transformer encapsulated
    B1 dimension 20.2mm
    A1 dimension 23.6mm
    C1 dimension 23.2mm
    Primary voltage 230V AC
    Secondary voltage 1 15V
    Thermal class Ta40B
    Secondary winding current 1 160mA

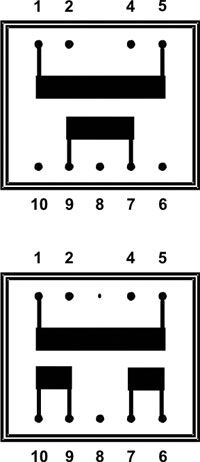

    Primary winding terminals 1-5
    Secondary winding terminals 7-9
    P dimension 5.05mm
    M dimension 20mm
    Power VA 2.4VA
