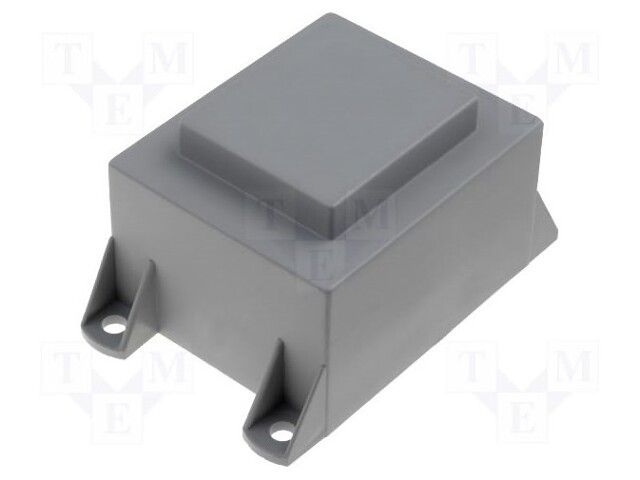

Transformer: encapsulated; 35VA; 230VAC; 9V; 3.88A; Mounting: PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZZ35/003M/5
    Tootja: INDEL
    Tootja tootekood: TSZZ35/003M/5
    • Mounting
    • IP rating
    • D1 dimension
    • D dimension
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • C dimension
    • Type of transformer
    • B1 dimension
    • A1 dimension
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding terminals
    • P dimension
    • M dimension
    • Power VA

    20,75 € 20,75 € (KM-TA) 20.75 EUR

    20,75 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 35VA; 230VAC; 9V; 3.88A; Mounting: PCB

    Mounting PCB
    IP rating IP00
    D1 dimension 43.5mm
    D dimension 72.5mm
    Insulation class II
    B dimension 53.6mm
    A dimension 63.6mm
    Conform to the norm PN-EN 61558
    C dimension 51.5mm
    Type of transformer encapsulated
    B1 dimension 35.8mm
    A1 dimension 41.8mm
    C1 dimension 42.2mm
    Primary voltage 230V AC
    Secondary voltage 1 9V
    Thermal class Ta40B
    Secondary winding current 1 3.88A
    Primary winding terminals 1-7
    Secondary winding terminals 9-13
    P dimension 5mm
    M dimension 32.5mm
    Power VA 35VA
