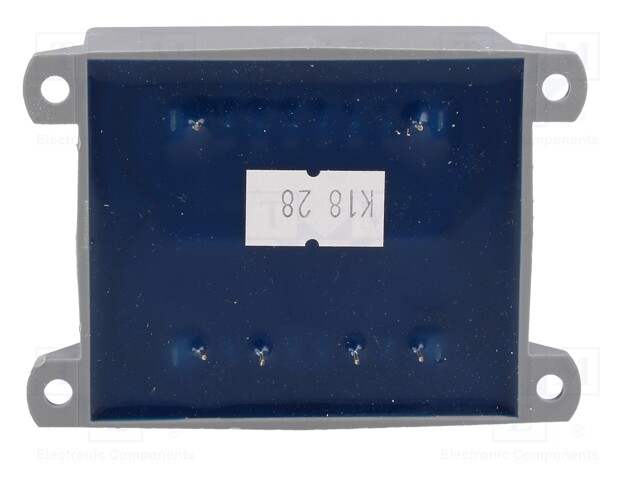

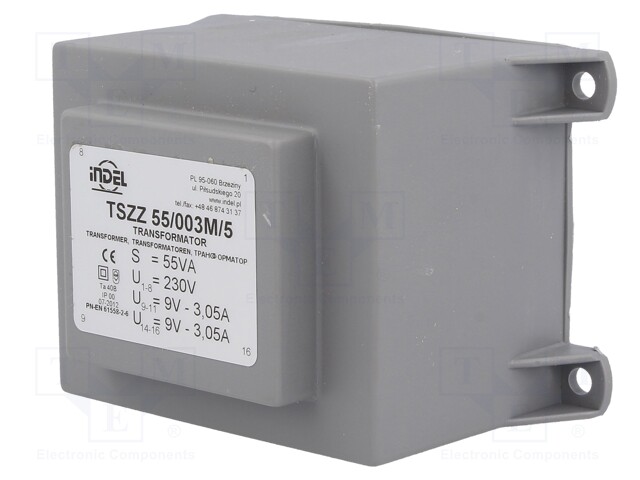

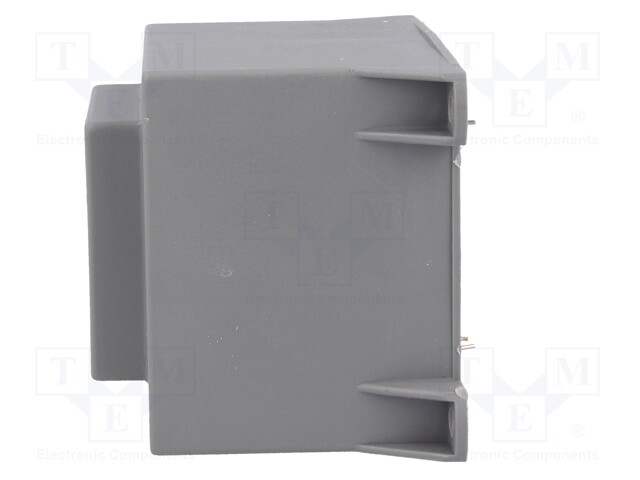

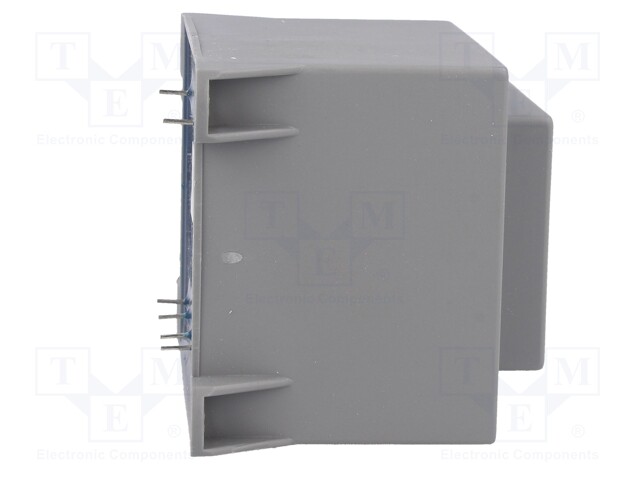

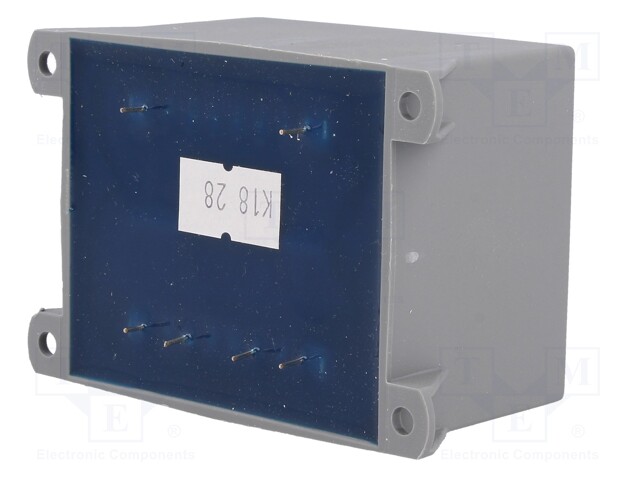

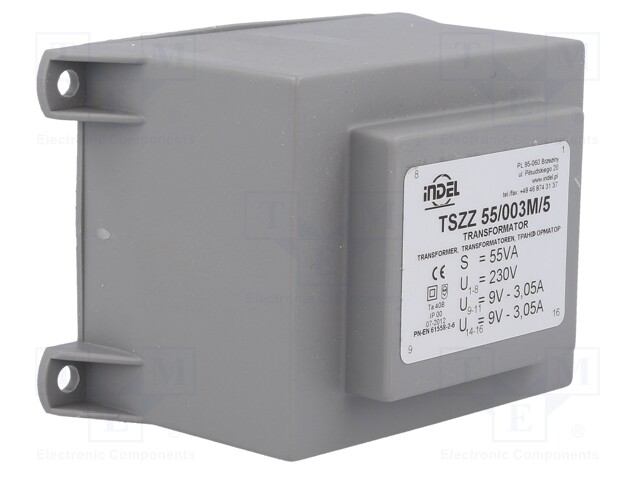

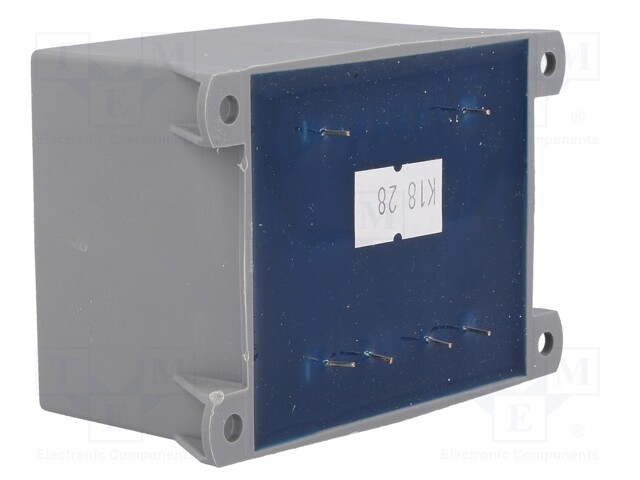

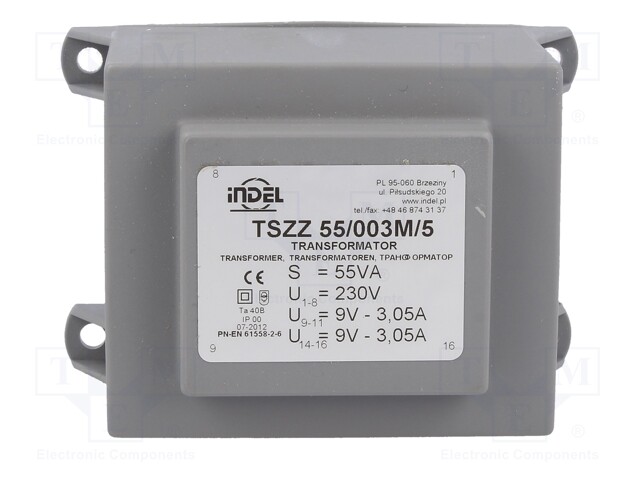

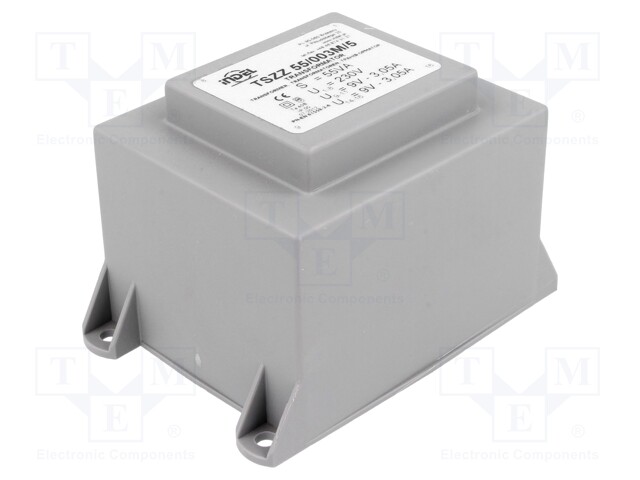

Transformer: encapsulated; 55VA; 230VAC; 9V; 9V; 3.05A; 3.05A; IP00

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZZ55/003M
    Tootja: INDEL
    Tootja tootekood: TSZZ55/003M
    • Mounting
    • IP rating
    • D1 dimension
    • D dimension
    • Insulation class
    • B dimension
    • A dimension
    • Conform to the norm
    • C dimension
    • Type of transformer
    • B1 dimension
    • A1 dimension
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary voltage 2
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding current 2
    • Secondary winding terminals
    • P dimension
    • M dimension
    • Power VA

    20,29 € 20,29 € (KM-TA) 20.29 EUR

    20,29 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 55VA; 230VAC; 9V; 9V; 3.05A; 3.05A; IP00

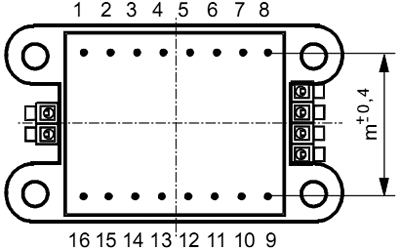

    Mounting PCB
    IP rating IP00

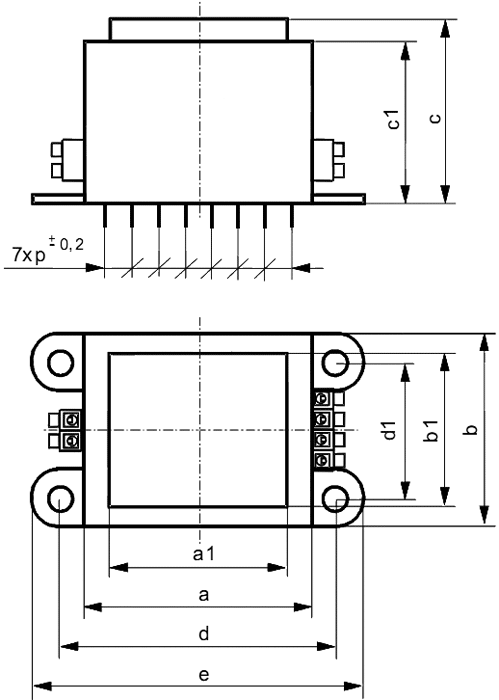

    D1 dimension 47.5mm
    D dimension 77.5mm
    Insulation class II
    B dimension 61.2mm
    A dimension 70mm
    Conform to the norm PN-EN 61558
    C dimension 56.5mm
    Type of transformer encapsulated
    B1 dimension 41.2mm
    A1 dimension 47.2mm
    C1 dimension 46.8mm
    Primary voltage 230V AC
    Secondary voltage 1 9V
    Thermal class Ta40B
    Secondary voltage 2 9V
    Secondary winding current 1 3.05A
    Primary winding terminals 1-7
    Secondary winding current 2 3.05A
    Secondary winding terminals 8-9, 13-14
    P dimension 5mm
    M dimension 35mm
    Power VA 55VA
