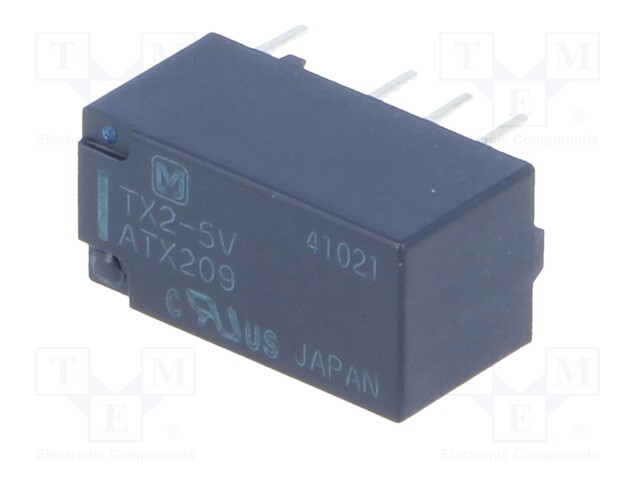

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A/30VDC; max.220VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TX2-5V
    Tootja: PANASONIC
    Tootja tootekood: TX2-5V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    2,55 € 2,55 € (KM-TA) 2.5500000000000003 EUR

    2,55 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A/30VDC; max.220VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material silver alloy

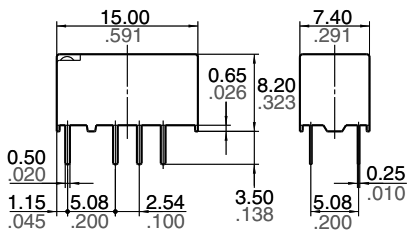

    Body dimensions 15x7.4x8.2mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC
    Coil resistance 178Ω
    Rated coil voltage 5V DC

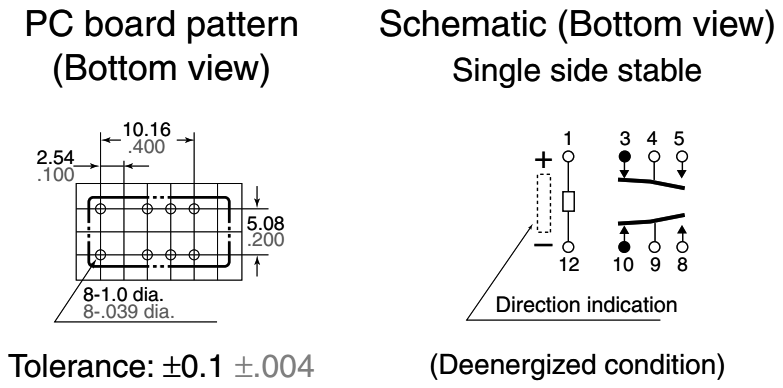

    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 140mW
    Coil current 28.1mA
