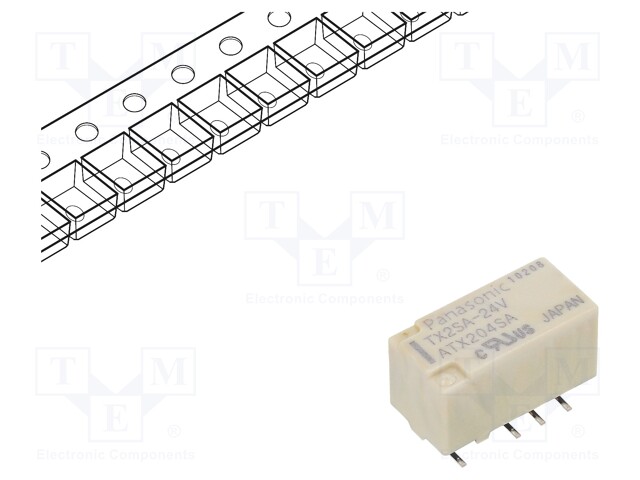

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A/30VDC; 2A; miniature

    Kordarv: 500.0
    Minimum quantity: 500.0
    Tootekood: TX2SA24ZJ
    Tootja: PANASONIC
    Tootja tootekood: TX2SA24ZJ
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    3,14 € 3,14 € (KM-TA) 3.14 EUR

    3,14 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A/30VDC; 2A; miniature

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material silver alloy
    Body dimensions 15x7.4x8.2mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 220V DC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 140mW
