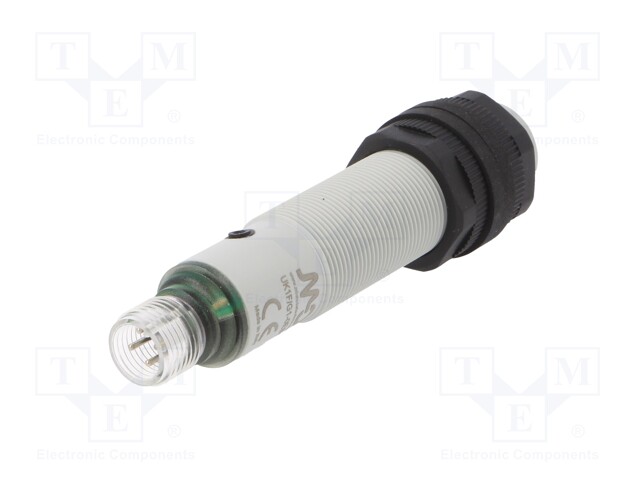

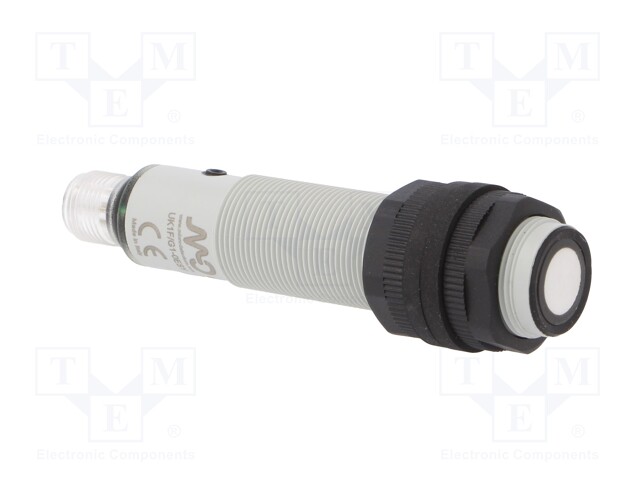

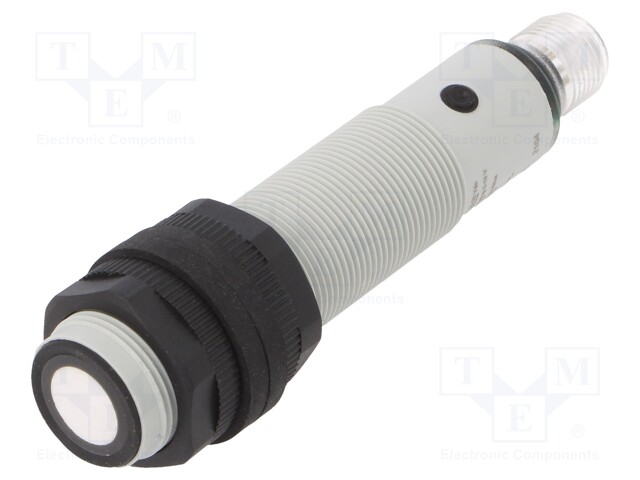

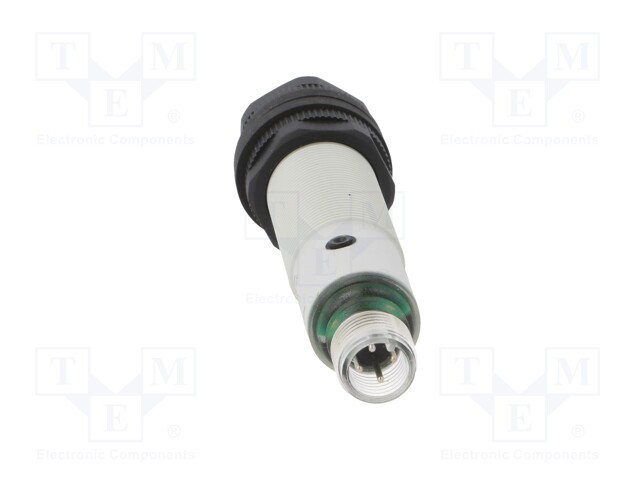

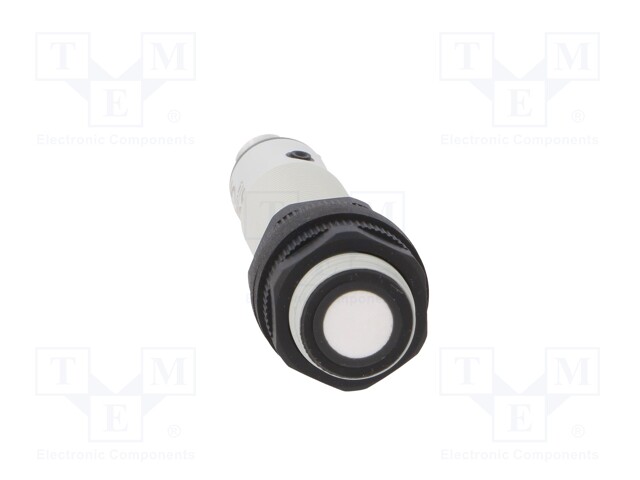

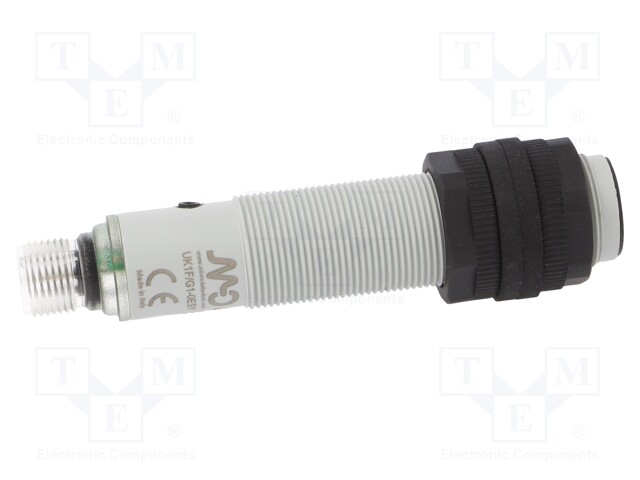

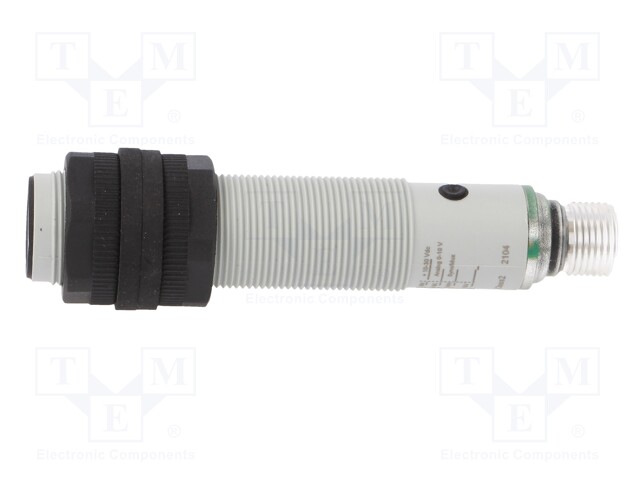

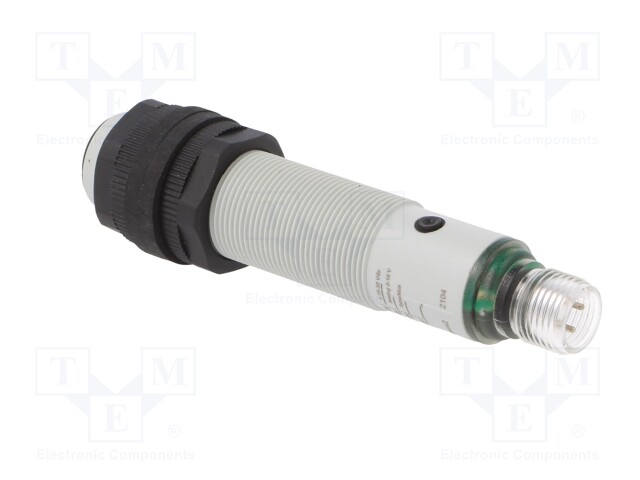

Sensor: ultrasonic; straight; Range: 0.2÷2.2m; 0-10V analogue

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: UK1F/G1-0ESY
    Tootja: Micro Detectors
    Tootja tootekood: UK1F/G1-0ESY
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Kind of sensor
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max

    362,49 € 362,49 € (KM-TA) 362.49 EUR

    362,49 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Sensor: ultrasonic; straight; Range: 0.2÷2.2m; 0-10V analogue

    Supply voltage 15...30V DC
    Max. operating current 100mA
    Operating temperature -25...70°C
    IP rating IP67
    Number of pins 4
    Body material PBT
    Range 200mm...2.2m
    Output configuration 0-10V analogue
    Kind of sensor straight
    Type of sensor ultrasonic
    Connection connector M12
    Switch housing M18
    Switching frequency max 2Hz
