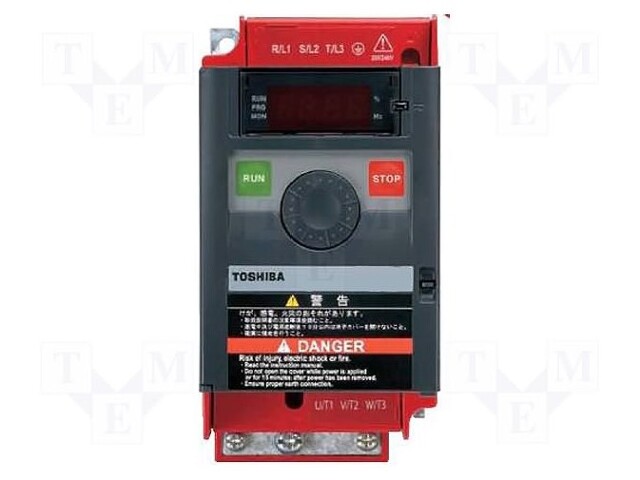

Inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; Display: LED
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
VFNC3S-2022PL
Tootja: TOSHIBA
Tootja tootekood: VFNC3S-2022PL
Product downloads
Spetsifikatsioon tootele Inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; Display: LED
| Supply voltage | 200...240V AC |
| Protection | maxiumum frequency overrun, anti-overvoltage |
| Series | VFNC3S |
| Body dimensions | 105x130x156mm |
| Kind of display used | LED |
| Additional functions | dynamic braking control, locked by password, PID regulator, programmable relay NO output, PWM, RS485/422 (max 115kB/s) |
| Electrical connection | screw terminals |
| Max motor power | 2.2kW |
| Inverter output voltage | 3 x 230V AC |
| The programming method | keypad and potentiometer |
| Input 1 properties | 2 inputs for setting motor rotational speed by signals 0...10V, 4...20mA, 0...20mA or by means of the external potentiometer |
