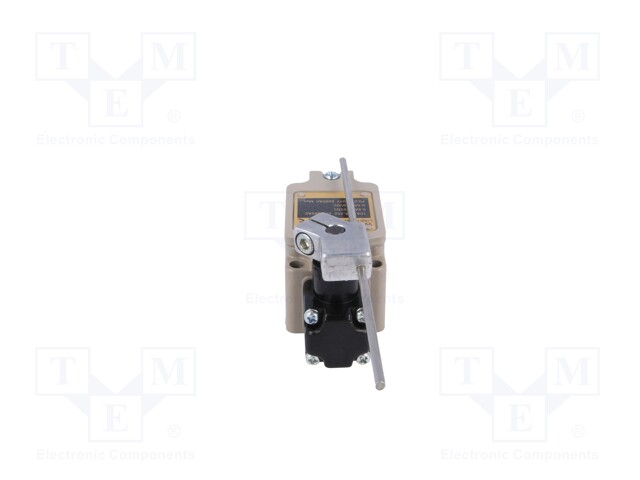

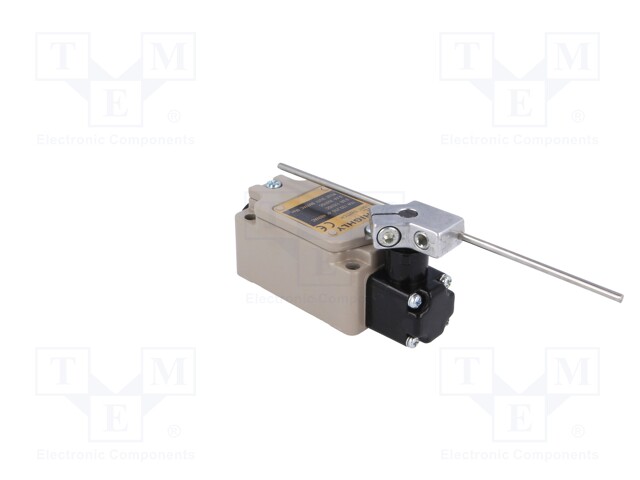

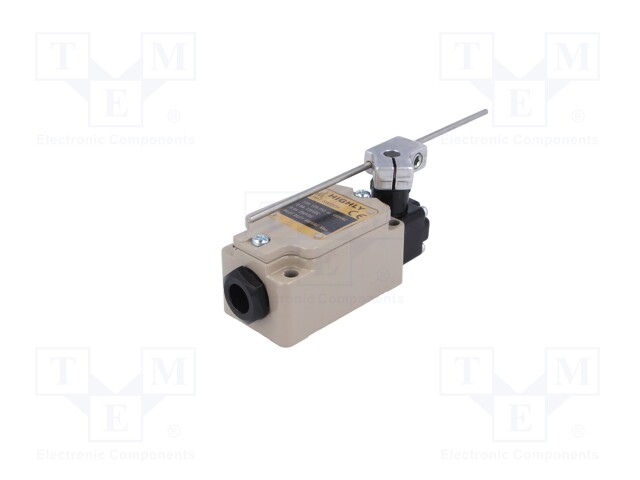

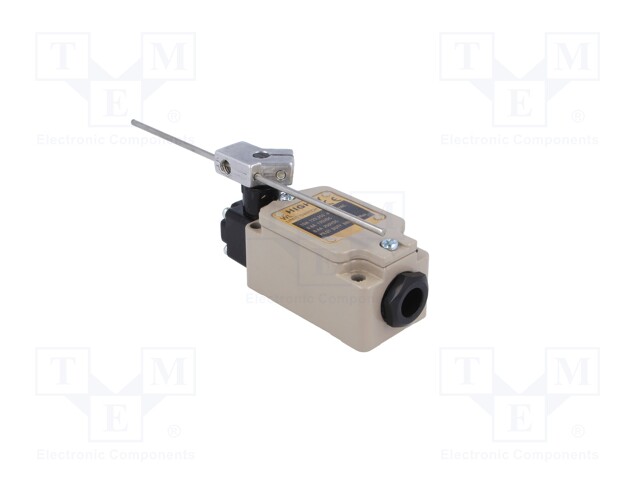

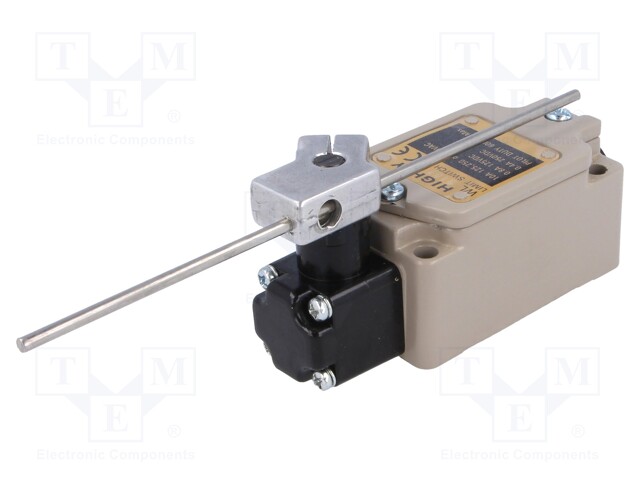

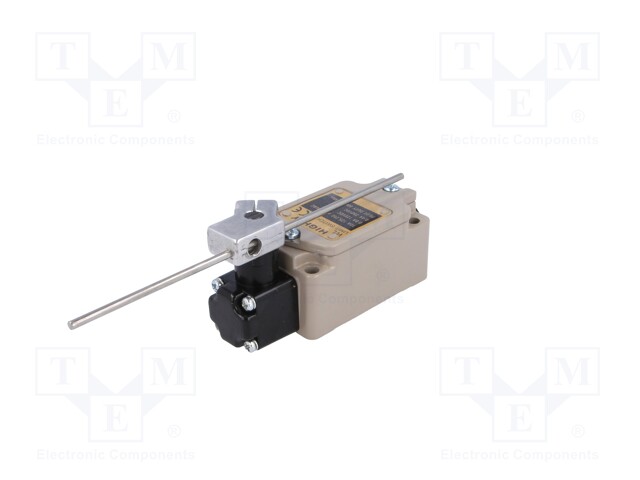

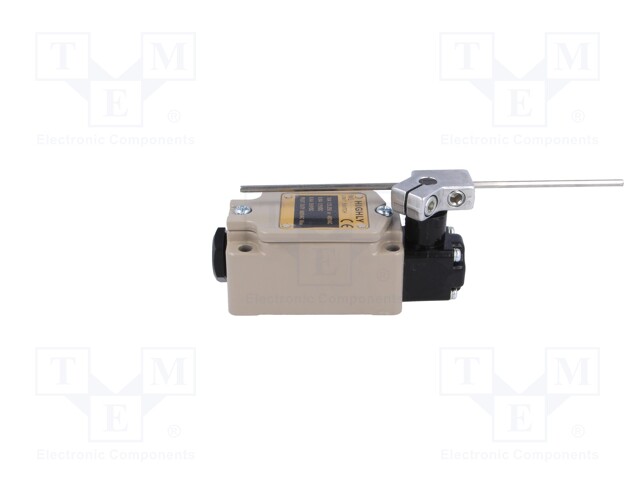

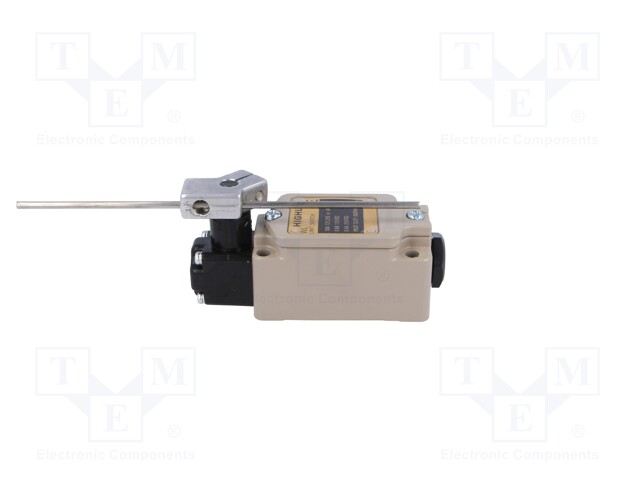

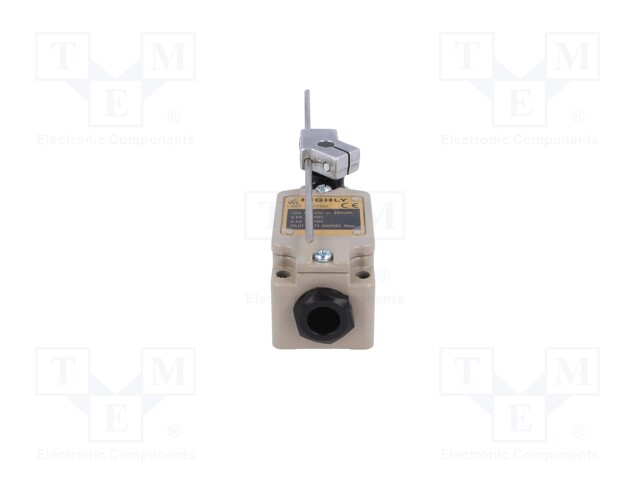

Limit switch; adjustable plunger, max length 141mm; NO + NC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: WL-5107
    Tootja: HIGHLY
    Tootja tootekood: WL-5107
    • Operating temperature
    • IP rating
    • Body material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    21,66 € 21,66 € (KM-TA) 21.66 EUR

    21,66 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Limit switch; adjustable plunger, max length 141mm; NO + NC

    Operating temperature -25...70°C
    IP rating IP64
    Body material metal

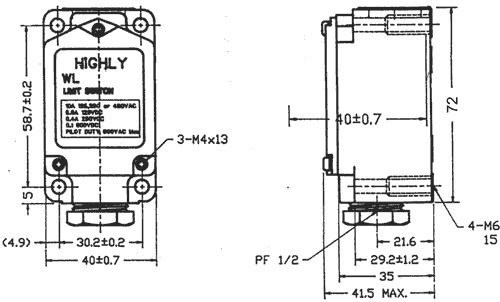

    Body dimensions 72.3x40x41.5mm
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 4
    DC contacts rating @R 400mA / 250V DC
    AC contacts rating @R 10A / 125V AC
    Connection M20
    Contact current max. 10A
    Kind of actuator adjustable plunger, max length 141mm
