    2. Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC
    Public Pricelist

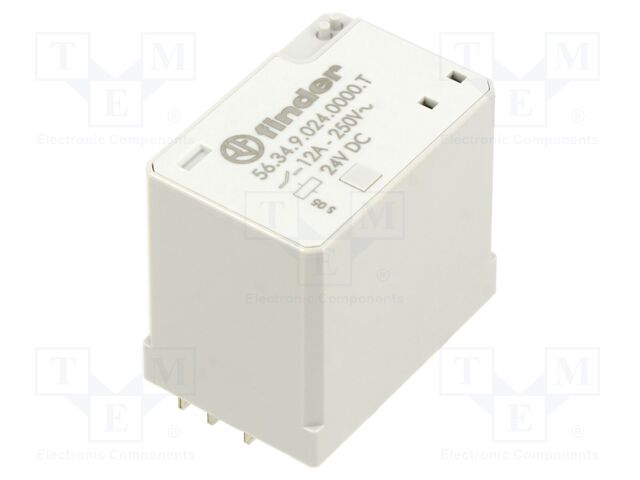

    Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 56.34.9.024.0000T
    Manufacturer: FINDER
    Manufacturer code: 56.34.9.024.0000T
    Certificates:
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Switched voltage
    • Switched voltage
    • Conform to the norm
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current

    33.91 € 33.91 € (wo VAT) 33.910000000000004 EUR

    33.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads connectors
    Contact material AgNi
    Switched voltage max. 220V DC, max. 400V AC
    Conform to the norm EN 50155
    Coil resistance 490Ω
    Rated coil voltage 24V DC
    Contacts configuration 4PDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil current 49mA
