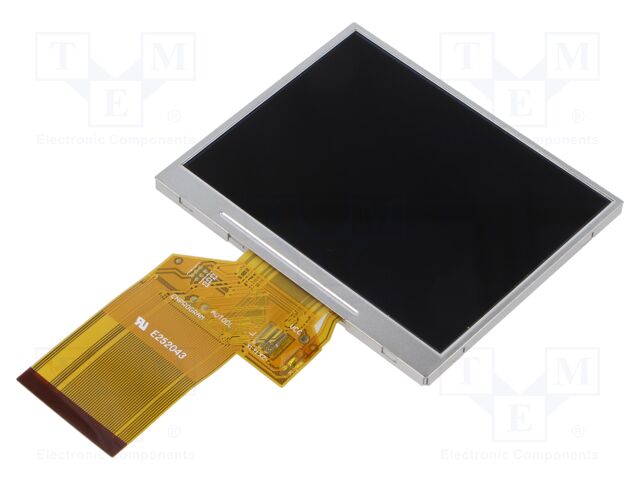

Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm

Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm

Multiples: 1.0

Minimum quantity: 1.0

Product code: DEM 320240T2 VTX-PW-N
Manufacturer: DISPLAY ELEKTRONIK
Manufacturer code: DEM 320240T2 VTX-PW-N
Certificates:

Supply voltage
Interface
Interface
Number of pins
Dimensions
Type of pin configuration
Display resolution
Screen size
Kind of display
Backlight colour
Illumination
Contrast
Window dimensions (H x W)
Kind of controller
Type of display
Ribbon cable pitch

43.05 € 43.05 € (wo VAT) 43.050000000000004 EUR

43.05 €

This combination does not exist.

Product downloads

DEM320240T2VTX-PWN.txt

Specification for Display: TFT; 3.5"; 320x240; Illumin: LED; Dim: 76.9x63.9x3.2mm

Supply voltage	3...3.6V DC
Interface	24bit RGB, SPI
Number of pins	54
Dimensions	76.9x63.9x3.2mm
Type of pin configuration	1x54
Display resolution	320x240
Screen size	3.5"
Kind of display	graphical
Backlight colour	white
Illumination	LED
Contrast	800:1
Window dimensions (H x W)	70.08x52.56mm
Kind of controller	ST7272A
Type of display	TFT
Ribbon cable pitch	500µm
