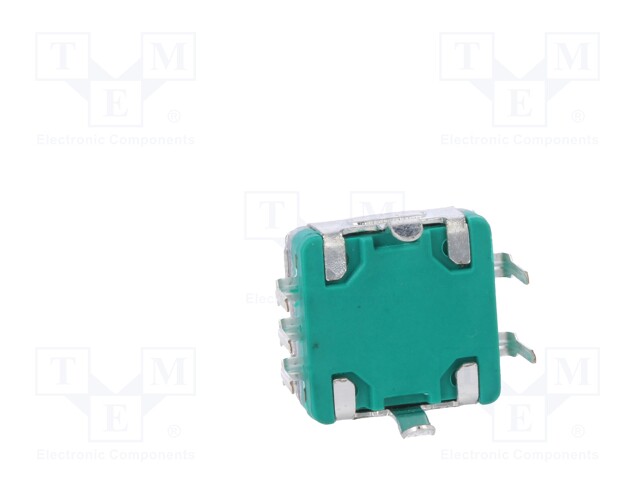

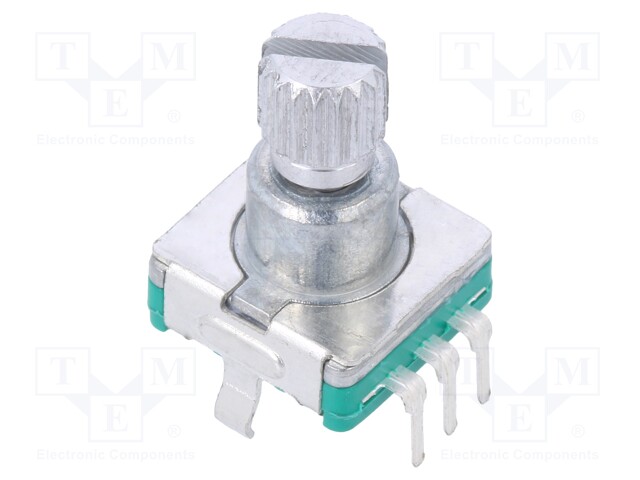

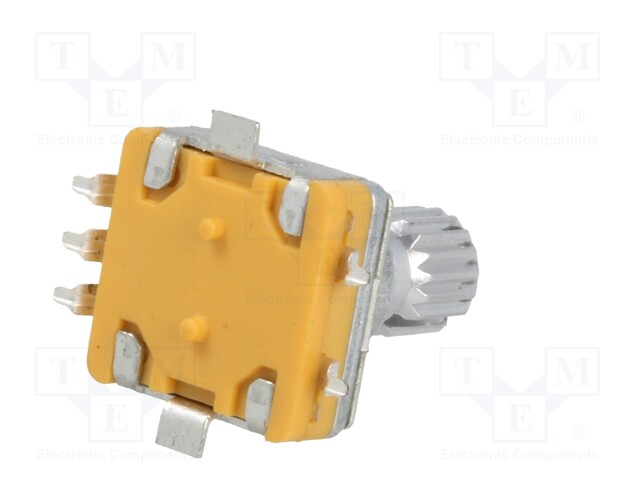

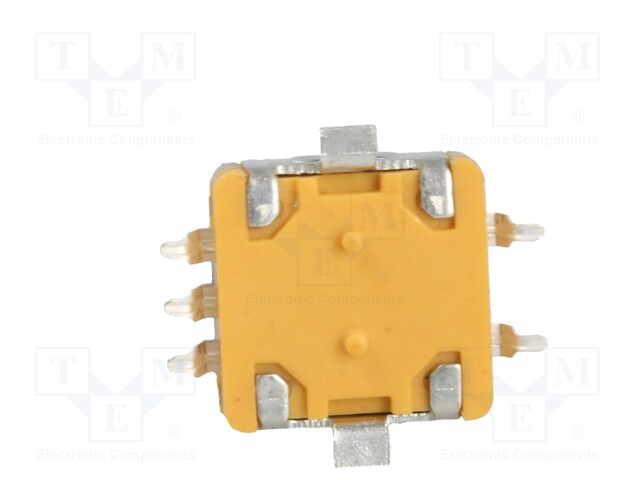

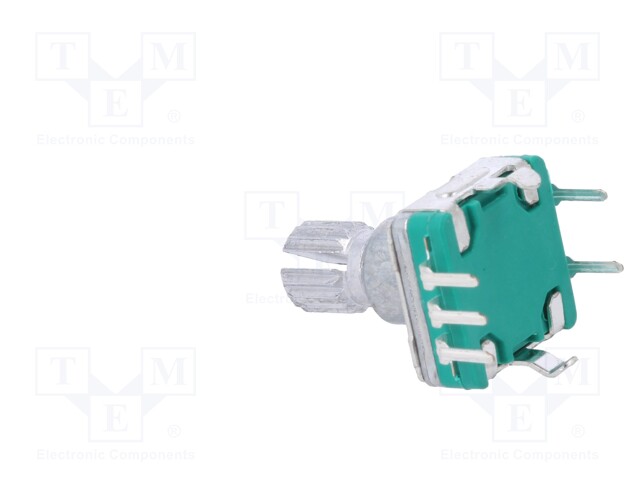

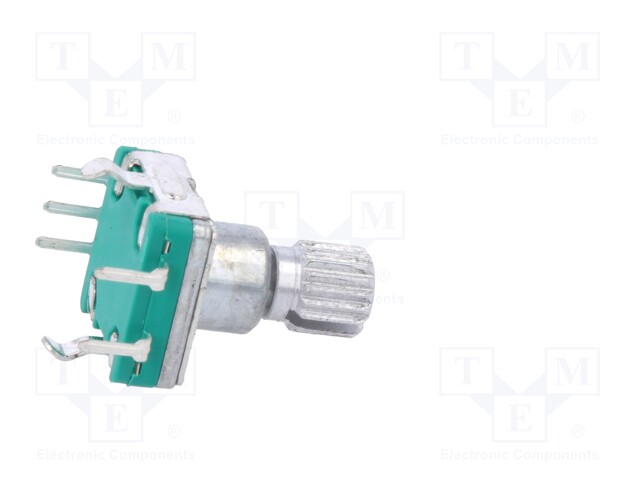

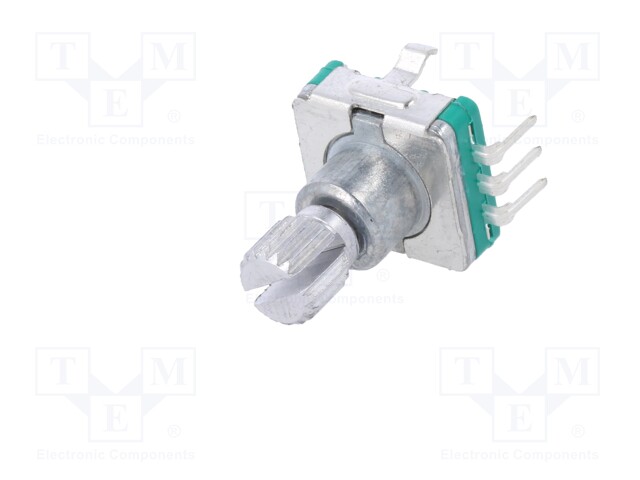

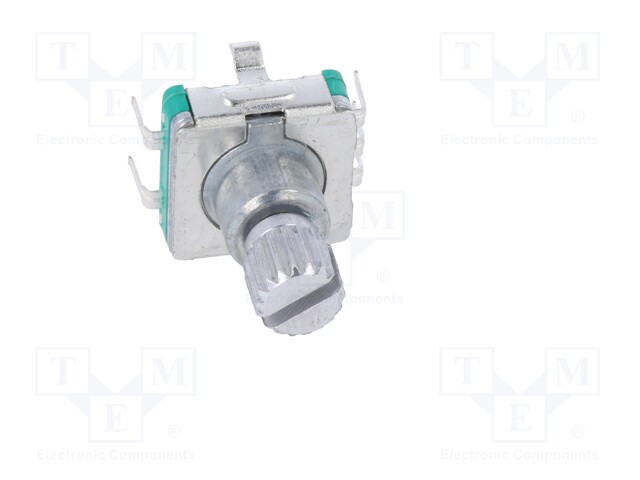

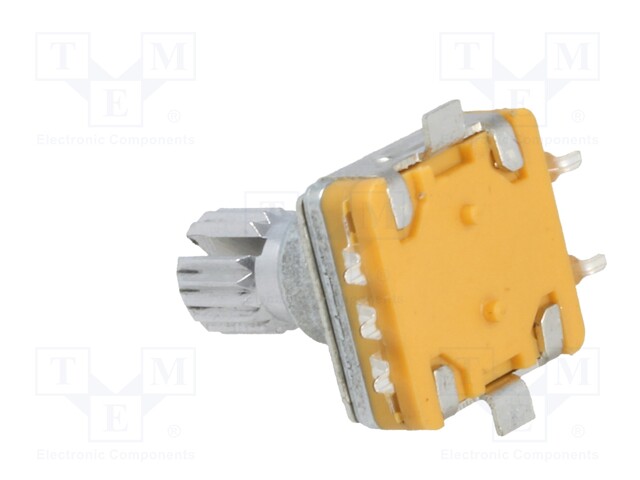

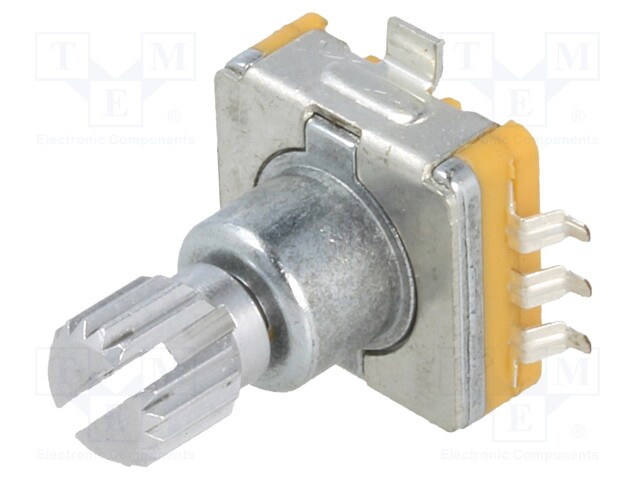

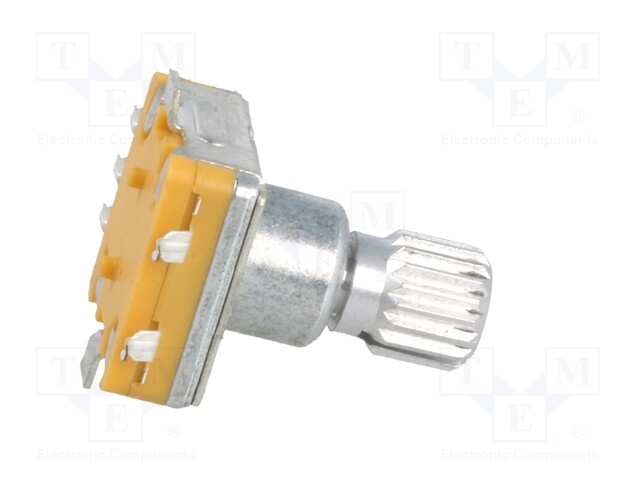

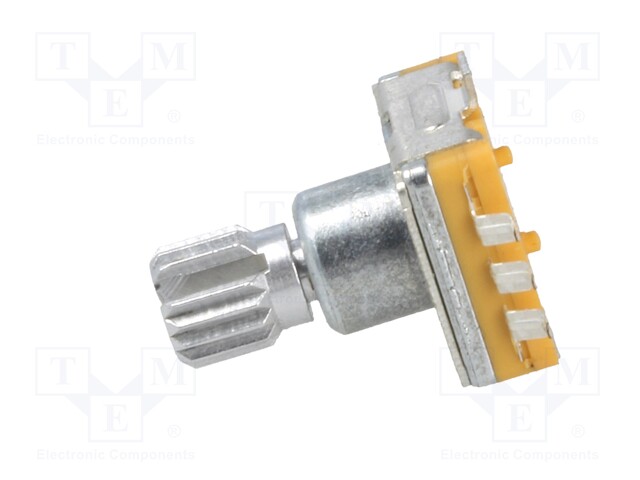

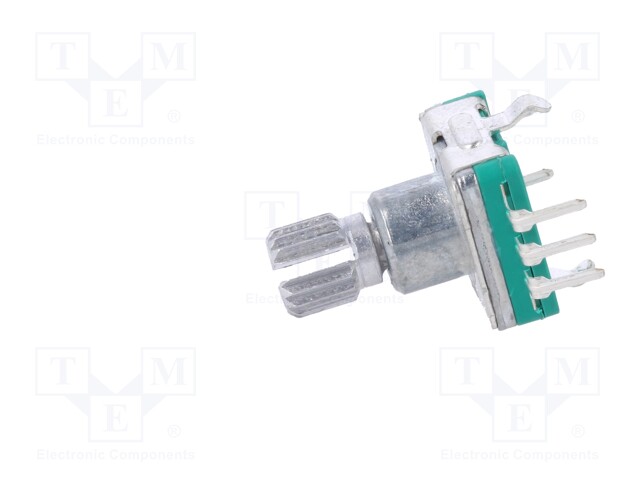

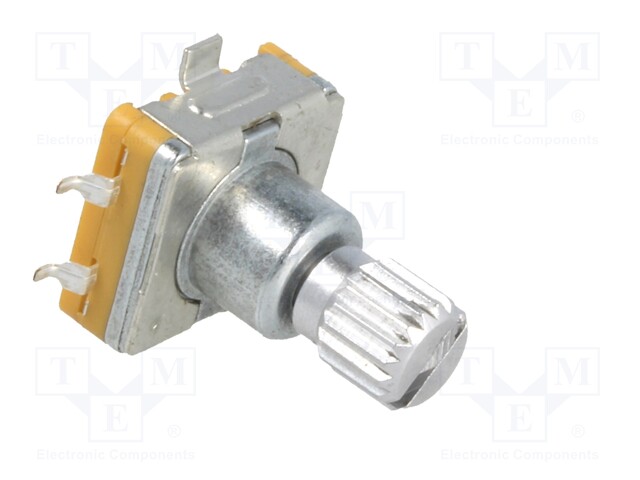

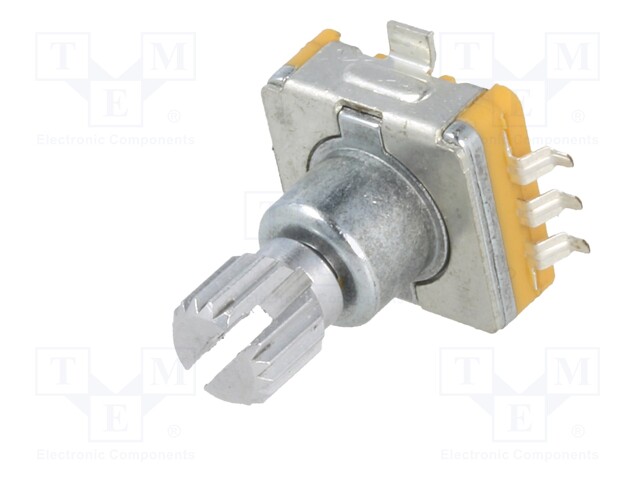

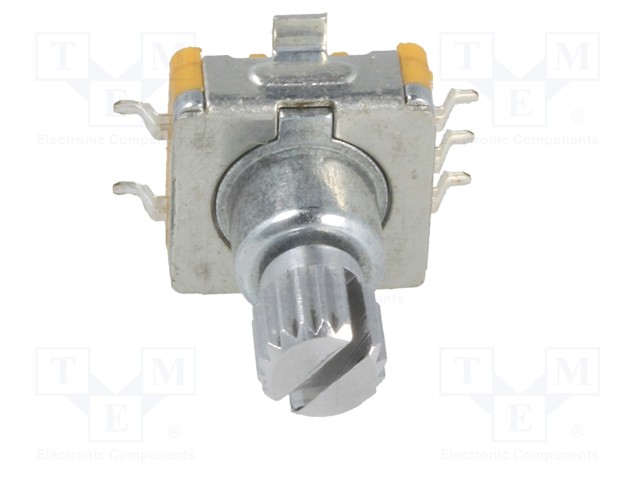

Encoder: incremental; THT; 15imp/revol; two phase A and B; 5mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC11E12-15P30C-SW
    Manufacturer: SR PASSIVES
    Manufacturer code: EC11E12-15P30C-SW
    • Mounting
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Number of positions
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • Encoders features
    • L shaft length

    1.73 € 1.73 € (wo VAT) 1.73 EUR

    1.73 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoder: incremental; THT; 15imp/revol; two phase A and B; 5mA

    Mounting THT, SMD
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 5mA
    Number of positions 30
    Terminal pitch 2.54x14.5mm
    Body dimensions 11.7x13.75x6.5mm
    Mechanical durability 30000cycles
    Resolution 15imp/revol.
    Output signal two phase A and B
    Shaft length 7mm
    Shaft diameter 6mm
    Shaft surface knurled
    Thread length 5mm
    Encoders features with button
    L shaft length 12mm
