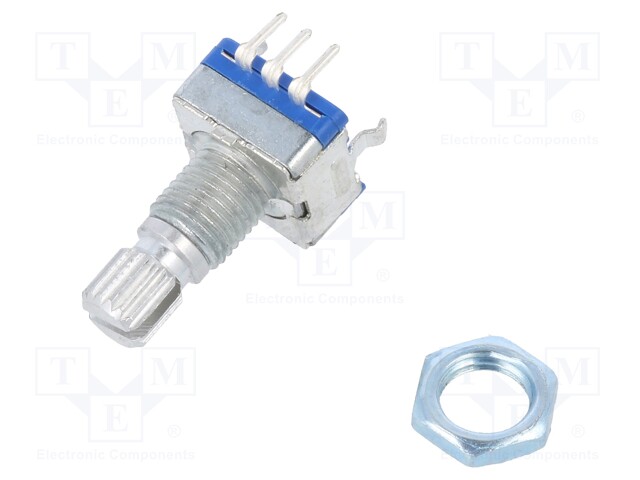

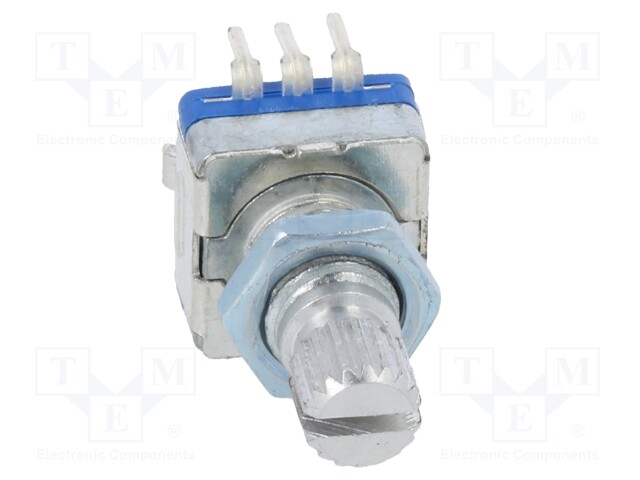

Encoder: incremental; THT; 20imp/revol; two phase A and B; 5mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC11E15-20P20C
    Manufacturer: SR PASSIVES
    Manufacturer code: EC11E15-20P20C
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Number of positions
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length

    1.71 € 1.71 € (wo VAT) 1.71 EUR

    1.71 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoder: incremental; THT; 20imp/revol; two phase A and B; 5mA

    Mounting THT
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 5mA
    Number of positions 20
    Terminal pitch 2.54mm
    Body dimensions 11.7x13.75x6.5mm
    Mechanical durability 30000cycles
    Resolution 20imp/revol.
    Output signal two phase A and B
    Shaft length 8mm
    Shaft diameter 6mm
    Shaft surface knurled
    Thread length 7mm
    L shaft length 15mm
