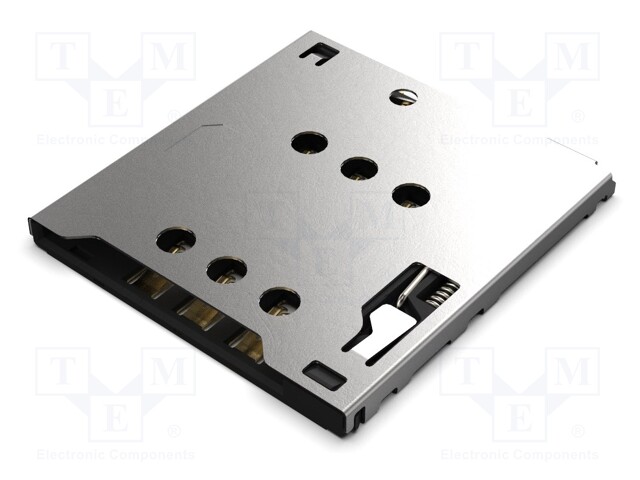

Connector: for cards; Micro SIM; push-push,with on/off switch

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SIM7155-6-1-14-A
    Manufacturer: GCT
    Manufacturer code: SIM7155-6-1-14-A
    • Operating temperature
    • Kind of package
    • Electrical mounting
    • Contact plating
    • Enclosure material
    • Type of connector
    • Number of pins
    • Contact material
    • Flammability rating
    • Current rating
    • Max number of cycles
    • Connector variant
    • Min. insulation resistance
    • Kind of card

    2.03 € 2.03 € (wo VAT) 2.0300000000000002 EUR

    2.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: for cards; Micro SIM; push-push,with on/off switch

    Operating temperature -40...85°C
    Kind of package reel
    Electrical mounting SMT
    Contact plating gold flash
    Enclosure material LCP
    Type of connector for cards
    Number of pins 6
    Contact material copper alloy
    Flammability rating UL94V-0
    Current rating 1A
    Max number of cycles 5000
    Connector variant push-pull
    Min. insulation resistance 1GΩ
    Kind of card Micro SIM
