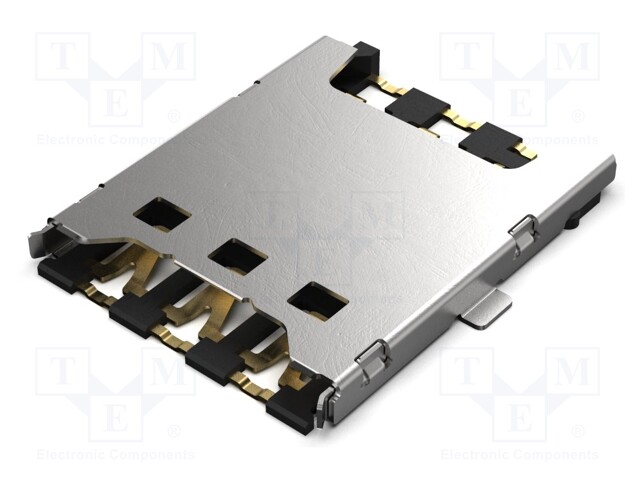

Connector: for cards; Nano SIM; push-pull,with on/off switch

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SIM8055-6-1-14-00-A
    Manufacturer: GCT
    Manufacturer code: SIM8055-6-1-14-00-A
    • Operating temperature
    • Kind of package
    • Electrical mounting
    • Contact plating
    • Enclosure material
    • Type of connector
    • Number of pins
    • Contact material
    • Flammability rating
    • Current rating
    • Max number of cycles
    • Connector variant
    • Min. insulation resistance
    • Kind of card

    1.61 € 1.61 € (wo VAT) 1.61 EUR

    1.61 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: for cards; Nano SIM; push-pull,with on/off switch

    Operating temperature -40...85°C
    Kind of package reel
    Electrical mounting SMT
    Contact plating gold flash
    Enclosure material LCP
    Type of connector for cards
    Number of pins 6
    Contact material phosphor bronze
    Flammability rating UL94V-0
    Current rating 500mA
    Max number of cycles 5000
    Connector variant push-pull
    Min. insulation resistance 1GΩ
    Kind of card Nano SIM
