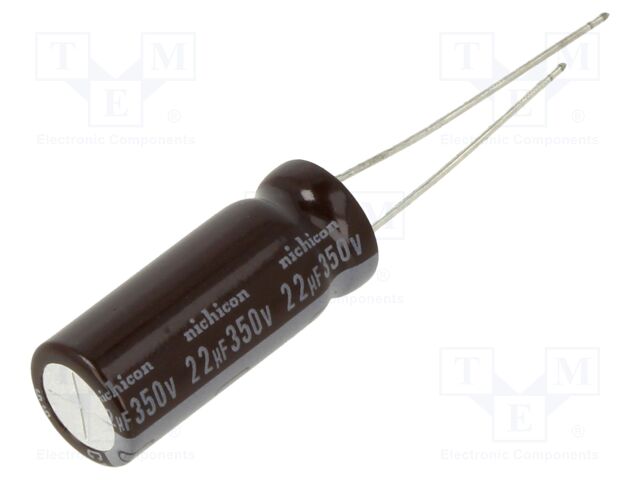

Capacitor: electrolytic; THT; 22uF; 350VDC; Ø10x25mm; ±20%; 12000h

    Multiples: 1200.0
    Minimum quantity: 1200.0
    Product code: UCY2V220MPD
    Manufacturer: NICHICON
    Manufacturer code: UCY2V220MPD
    • Mounting
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Height
    • Impedance
    • Operating current
    • Body dimensions
    • Diameter
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Capacitors features
    • Capacitors features
    • Service life

    0.76 € 0.76 € (wo VAT) 0.76 EUR

    0.76 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: electrolytic; THT; 22uF; 350VDC; Ø10x25mm; ±20%; 12000h

    Mounting THT
    Operating voltage 350V DC
    Operating temperature -40...105°C
    Tolerance ±20%
    Terminal pitch 5mm
    Height 25mm
    Impedance 1.2Ω
    Operating current 255mA
    Body dimensions Ø10x25mm
    Diameter 10mm
    Capacitance 22µF
    Kind of capacitor low ESR
    Type of capacitor electrolytic
    Capacitors features high ripple current, long life
    Service life 12000h
