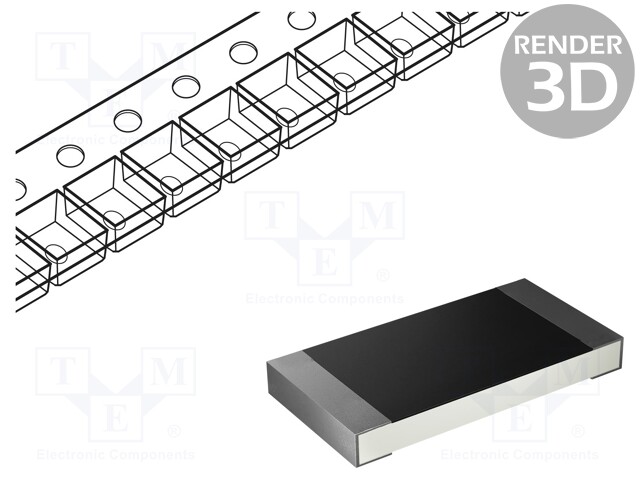

Resistor network: Y; SMD; R: 0Ω; ±5%; 62.5mW; No.of resistors: 4

    Kordarv: 10.0
    Minimum quantity: 10.0
    Tootekood: 4D02WGJ0000TCE
    Tootja: ROYAL OHM
    Tootja tootekood: 4D02WGJ0000TCE
    • Mounting
    • Power
    • Resistance
    • Number of resistors
    • Operating voltage
    • Case - inch
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Case - mm
    • Min. insulation resistance
    • Temperature coefficient
    • Max. overload voltage
    • Resistor features
    • Type of resistor network

    0,16 € 0,16 € (KM-TA) 0.16 EUR

    0,16 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Resistor network: Y; SMD; R: 0Ω; ±5%; 62.5mW; No.of resistors: 4

    Mounting SMD
    Power 62.5mW
    Resistance 0Ω
    Number of resistors 4
    Operating voltage 50V
    Case - inch 804
    Operating temperature -55...155°C
    Tolerance ±5%
    Terminal pitch 500µm
    Body dimensions 2x1x0.45mm
    Case - mm 2010
    Min. insulation resistance 1GΩ
    Temperature coefficient 200ppm/°C
    Max. overload voltage 100V
    Resistor features terminals of all resistors are separated
    Type of resistor network Y
