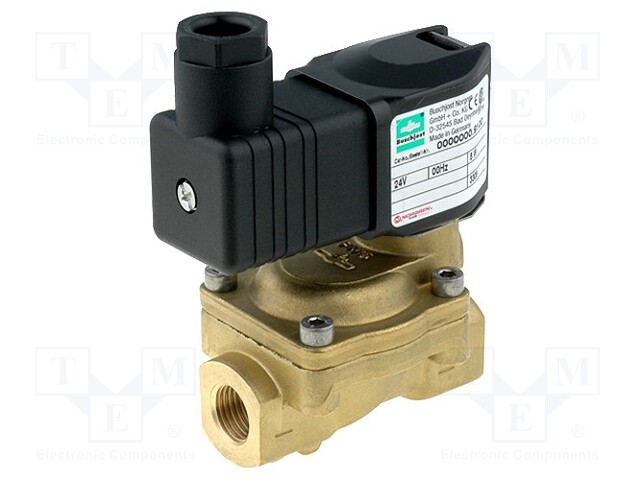

Electromagnetic valve; BSP 1/4"; 8mm; Pressure: 0.1÷16bar; 24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 8240000.9101.02400
    Tootja: NORGREN HERION
    Tootja tootekood: 8240000.9101.02400
    • Supply voltage
    • Operating temperature
    • IP rating
    • Body material
    • Thread
    • H dimension
    • Cable external diameter
    • Electrical connection
    • Dimension L2
    • L1 dimension
    • A dimension
    • L dimension
    • H2 dimension
    • H1 dimension
    • Seal material
    • Max medium temperature
    • Type of pneumatic module
    • Pneumatic components features
    • Pneumatic components features

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Electromagnetic valve; BSP 1/4"; 8mm; Pressure: 0.1÷16bar; 24VDC

    Supply voltage 24V DC
    Operating temperature ≤ 50°C
    IP rating IP65
    Body material brass
    Thread BSP 1/4"

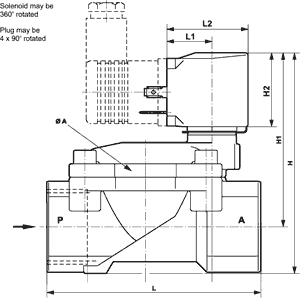

    H dimension 78.5mm
    Cable external diameter 8mm
    Electrical connection DIN 43650 typ A
    Dimension L2 36...30mm
    L1 dimension 20mm
    A dimension 44mm
    L dimension 60mm
    H2 dimension 33mm
    H1 dimension 67mm
    Seal material NBR rubber
    Max medium temperature 90°C
    Type of pneumatic module electromagnetic valve
    Pneumatic components features membrane structure, systems with neutral gases and liquids
