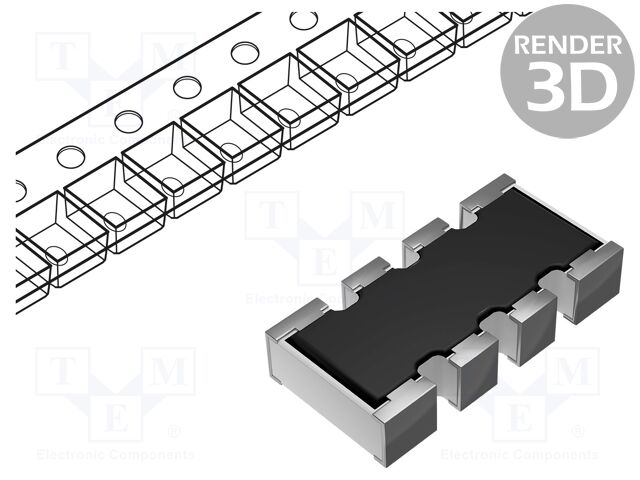

Fixed Network Resistor, 33 ohm, EXB3 Series, 4 Elements, Isolated, 1206 [3216 Metric], 8 Pins

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EXB38V330JV
    Tootja: PANASONIC
    Tootja tootekood: EXB38V330JV
    • Mounting
    • Power
    • Resistance
    • Number of resistors
    • Operating voltage
    • Case - inch
    • Operating temperature
    • Tolerance
    • Number of pins
    • Body dimensions
    • Max. overload voltage
    • Type of resistor network

    0,09 € 0,09 € (KM-TA) 0.09 EUR

    0,09 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fixed Network Resistor, 33 ohm, EXB3 Series, 4 Elements, Isolated, 1206 [3216 Metric], 8 Pins

    Mounting SMD
    Power 63mW
    Resistance 33Ω
    Number of resistors 4
    Operating voltage 50V
    Case - inch 1206
    Operating temperature -55...125°C
    Tolerance ±5%
    Number of pins 8
    Body dimensions 3.2x1.6x0.5mm
    Max. overload voltage 100V
    Type of resistor network Y
