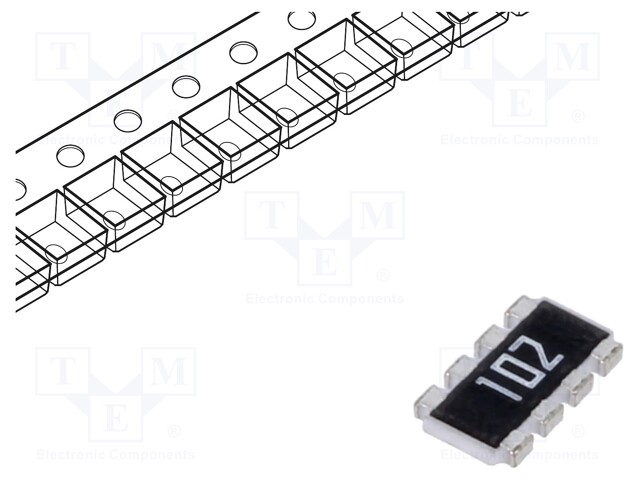

Fixed Network Resistor, 1 kohm, YC324 Series, 4 Elements, Isolated, 2412 [6032 Metric], 8 Pins

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: YC324-JK-071KL
    Tootja: YAGEO
    Tootja tootekood: YC324-JK-071KL
    • Mounting
    • Power
    • Resistance
    • Number of resistors
    • Operating voltage
    • Case - inch
    • Operating temperature
    • Tolerance
    • Number of pins
    • Terminal pitch
    • Temperature coefficient
    • Max. overload voltage
    • Resistor features
    • Type of resistor network

    0,30 € 0,30 € (KM-TA) 0.3 EUR

    0,30 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fixed Network Resistor, 1 kohm, YC324 Series, 4 Elements, Isolated, 2412 [6032 Metric], 8 Pins

    Mounting SMD
    Power 125mW
    Resistance 1kΩ
    Number of resistors 4
    Operating voltage 50V
    Case - inch 2012
    Operating temperature -55...155°C
    Tolerance ±5%
    Number of pins 8
    Terminal pitch 1.27mm
    Temperature coefficient 200ppm/°C
    Max. overload voltage 100V
    Resistor features terminals of all resistors are separated
    Type of resistor network Y
